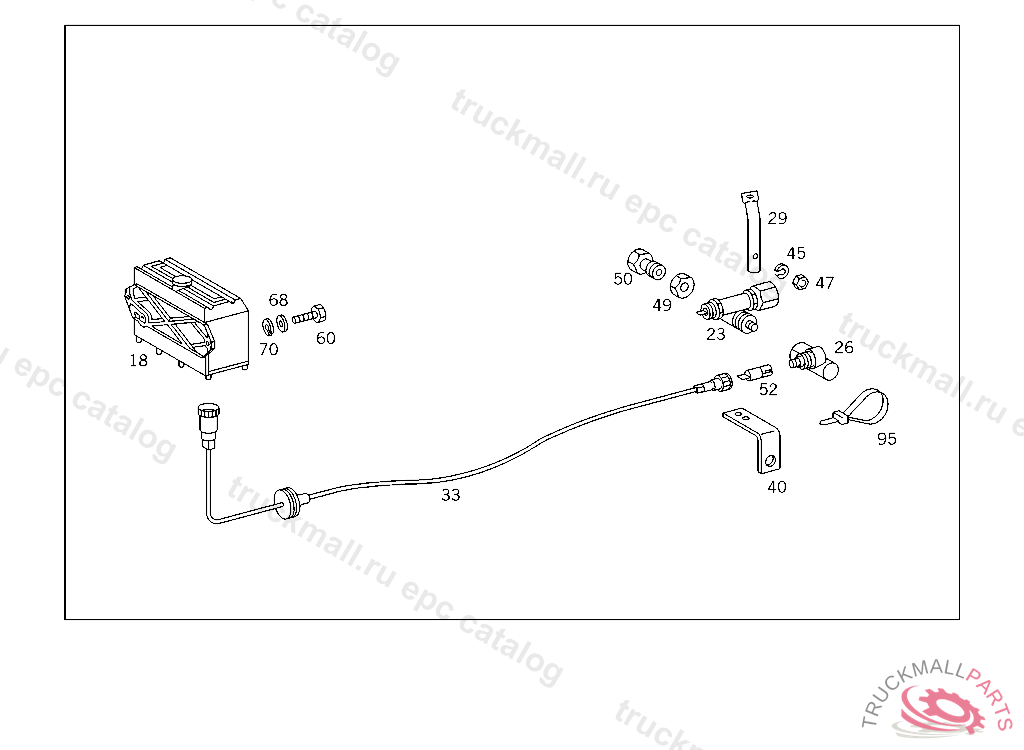

Поз.
Артикул
Описание
18
INDICATOR ODOMETER
23
ANGLE DRIVE
26
ANGLE DRIVE SHORT
29
BRACKET REDUCTION GEARING,4 895683
29
BRACKET REDUCTION GEARING,4 895682
29
BRACKET REDUCTION GEARING,4 895682
29
BRACKET REDUCTION GEARING,4 2690834 895682
29
BRACKET REDUCTION GEARING,4 2690834 895682
29
BRACKET REDUCTION GEARING,4 895682
29
BRACKET REDUCTION GEARING,4 269082
33
FLEXIBLE SHAFT ,4 895683
33
FLEXIBLE SHAFT3050 MM,4 895682
33
FLEXIBLE SHAFT ,4 895683
33
FLEXIBLE SHAFT3200 MM,4 895682
33
FLEXIBLE SHAFT ,4 895683
33
FLEXIBLE SHAFT3500 MM,4 895682
33
FLEXIBLE SHAFT3430 MM,4 895683
33
FLEXIBLE SHAFT3350 MM,4 895682
40
BRACKET FLEXIBLE SHAFT TO REAR ENGINE MOUNTING CONSOLE
45
WASHER BOOT TO CAB FLOOR
45
WASHER , Replaced By: N000433005304
47
NUT IN CASE OF SUBSEQUENT INSTALLATION
47
NUT , Replaced By: N304032005005
49
NUT REDUCTION GEARING,4 895683
50
CONNECTOR
50
CONNECTOR
50
CONNECTOR ANGLE DRIVE
52
COUPLER
52
COUPLER ANGLE DRIVE
52
COUPLER
60
SCREW LICENSE PLATE TO BRACKET
60
SCREW , Replaced By: N304017006020
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
70
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
LOOM TIE LINE MOUNTING
95
LOOM TIE LINE MOUNTING
