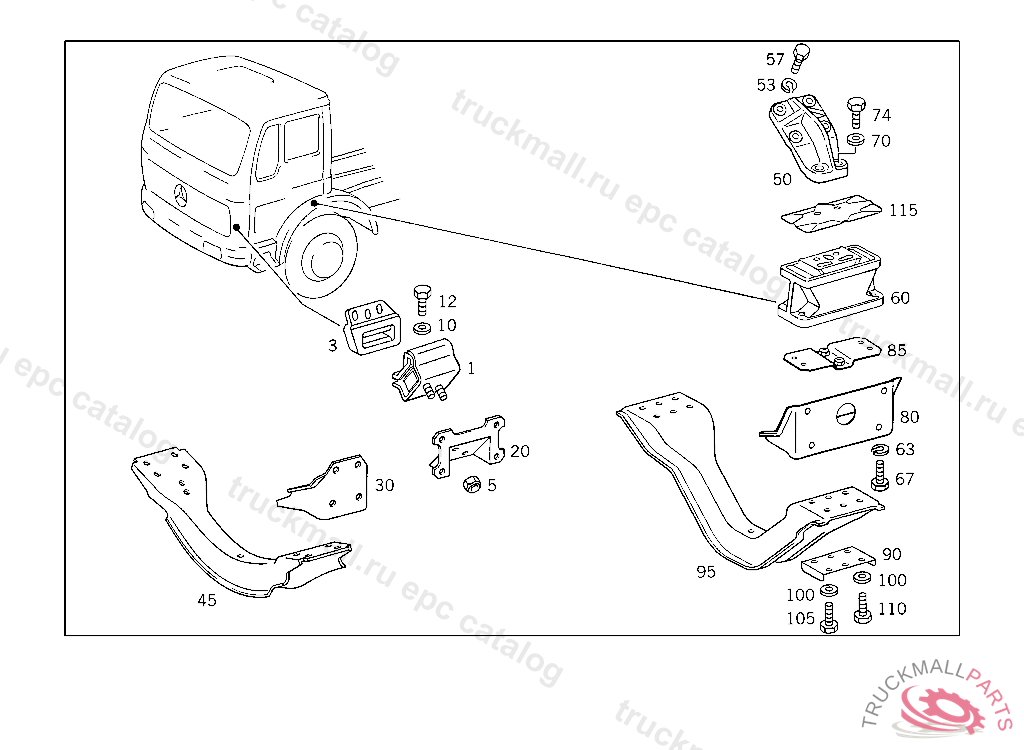

Поз.
Артикул
Описание
1
RUBBER MOUNTING ENGINE FRONT SUSPENSION
1
RUBBER MOUNTING ENGINE FRONT SUSPENSION
1
RUBBER MOUNTING , Replaced By: A3832401117
1
RUBBER MOUNTING ENGINE FRONT SUSPENSION
1
RUBBER MOUNTING , Replaced By: A3832401617
3
STOP ENGINE FRONT MOUNTING TO 653 241 00 13,356 240 00 17
5
NUT SUPPORT TO SIDE MEMBER
10
WASHER CONSOLE TO FRAME
12
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X38
20
BEARING BRACKET LEFT AND RIGHT
30
CONSOLE ENGINE CROSS MEMBER TO SIDE MEMBERS
45
ENGINE CROSS MEMBER FRONT
50
SUPPORTING ARM BELL HOUSING,4 753306
50
SUPPORTING ARM BELL HOUSING,4 753305
53
LOCK WASHERROCKINGER TYP 59 G140,59 G150
57
SCREW SUPPORTING ARM TO BELL HOUSING
57
SCREW , Replaced By: N308676018001
57
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
57
SCREW , Replaced By: N308676016006
60
RUBBER MOUNTING REAR
60
RUBBER MOUNTING , Replaced By: A3832401218
60
RUBBER MOUNTING REAR
60
RUBBER MOUNTING , Replaced By: A3832401118
60
RUBBER MOUNTING REAR
60
RUBBER MOUNTING , Replaced By: A3832401018
63
LOCK WASHER FITTING TO BRACKET
67
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
67
SCREW , Replaced By: N308676012026
70
WASHER CONSOLE TO FRAME
74
SCREW CONSOLE TO SIDE MEMBER M 16X1.5X48
80
CONSOLE REAR
85
INTERMEDIATE PIECE RIGHT
90
REINFORCEMENT CONSOLE TO SIDE MEMBER
95
ENGINE CROSS MEMBER
100
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
105
SCREW LEFT AND RIGHT CONSOLES TO CAB
110
SCREW BRACKET TO CROSS MEMBER
115
SCREENING PLATE REAR RUBBER MOUNTING
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW SHOCK ABSORBER BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SCREW , Replaced By: N308676014008
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW MOUNTING TO CONSOLE M 14X35
999
NUT STEERING SUPPORT TO FRAME
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N910113014000
