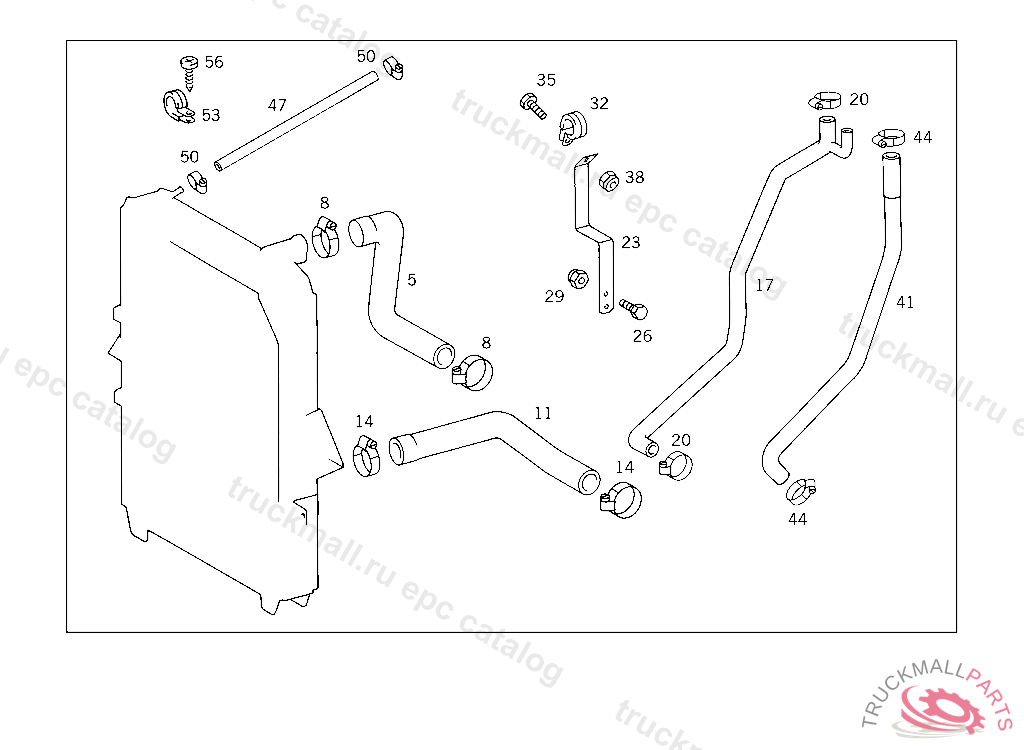

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP. LOOM TIE (DRY FILTER)
8
LOOM TIE (DRY FILTER)
8
LOOM TIE (DRY FILTER)
11
HOSE FROM RADIATOR TO WATER PUMP,824938
14
CLAMP. LOOM TIE (DRY FILTER)
14
LOOM TIE (DRY FILTER)
14
LOOM TIE (DRY FILTER)
17
HOSE FROM WATER PUMP TO EXPANSION TANK,D 047554
17
HOSE FROM WATER PUMP TO EXPANSION TANK
20
LOOM TIE40-60
20
CLAMP EXPANSION TANK
23
BRACKET MOLDED HOSE,SB047553
26
SCREW , Replaced By: N304017010040
29
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
32
CLAMP COMPRESSED AIR LINE TO ENGINE CROSS MEMBER,D 216117
32
CLAMP SUCTION LINE TO CROSS MEMBER
35
SCREW LINES TO BRACKET
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
HOSE FROM ENGINE TO EXPANSION TANK
44
LOOM TIE ELECTRIC CABLE MOUNTING
44
LOOM TIE , Replaced By: A3459977390
44
LOOM TIE ELECTRIC CABLE MOUNTING
44
CLAMP AIR COMPRESSOR
44
CLAMP FROM EXPANSION TANK TO ENGINE
44
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
44
CLAMP HOSE TO FITTING AND TO OIL TANK
44
LOOM TIE. CLAMP HOSE TO HEATING PIPE
44
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
44
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
47
HOSE FROM RADIATOR TO EXPANSION TANK 12X21X1090
50
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
50
CLAMP , Replaced By: N000000000667
50
CLAMP FROM EXPANSION TANK TO ENGINE
50
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
53
CLAMP PIPE ON FAN SHROUD
56
SCREW ENGINE CABLE HARNESS
