Поз.
Артикул
Описание
8

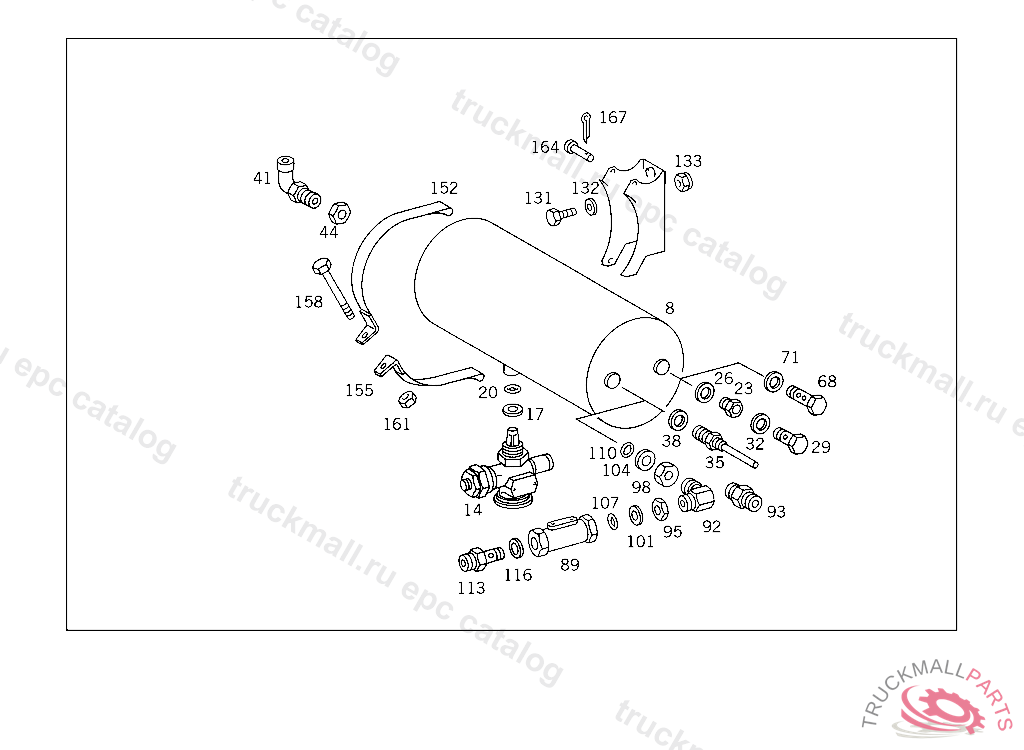

RESERVOIR AIR RESERVOIR III,A 090285
8
RESERVOIR AIR RESERVOIR III
8
RESERVOIR ,A 89944
14
VALVE DRAIN 20 L
17
THRUST RING CHECK VALVE TO AIR RESERVOIR
17
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
20
O-RING CHECK VALVE TO AIR RESERVOIR
23
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
26
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
29
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
32
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
35
CONNECTOR AIR RESERVOIR III,A 090286 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
35
CONNECTOR AIR RESERVOIR,CONNECTIONS: "11,12"
38
SEAL RINGTO 006 997 00 72
41
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
41
ELBOW FITTING AT TRUCK-TRACTOR BRAKE VALVE
44
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
152
STRAP AIR RESERVOIR TO CONSOLE
155
STRAP AIR RESERVOIR TO CONSOLE
158
SCREW STRAP TO CONSOLE
161
NUT BRACKET TO RETARDER
161
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
164
PIN STRAP TO CONSOLE 20 L
167
COTTER PIN SHIFTING ROD TO BRACKET
999
WASHER BRACKET TO LEFT AND RIGHT SIDE MEMBERS
999
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
