Поз.
Артикул
Описание

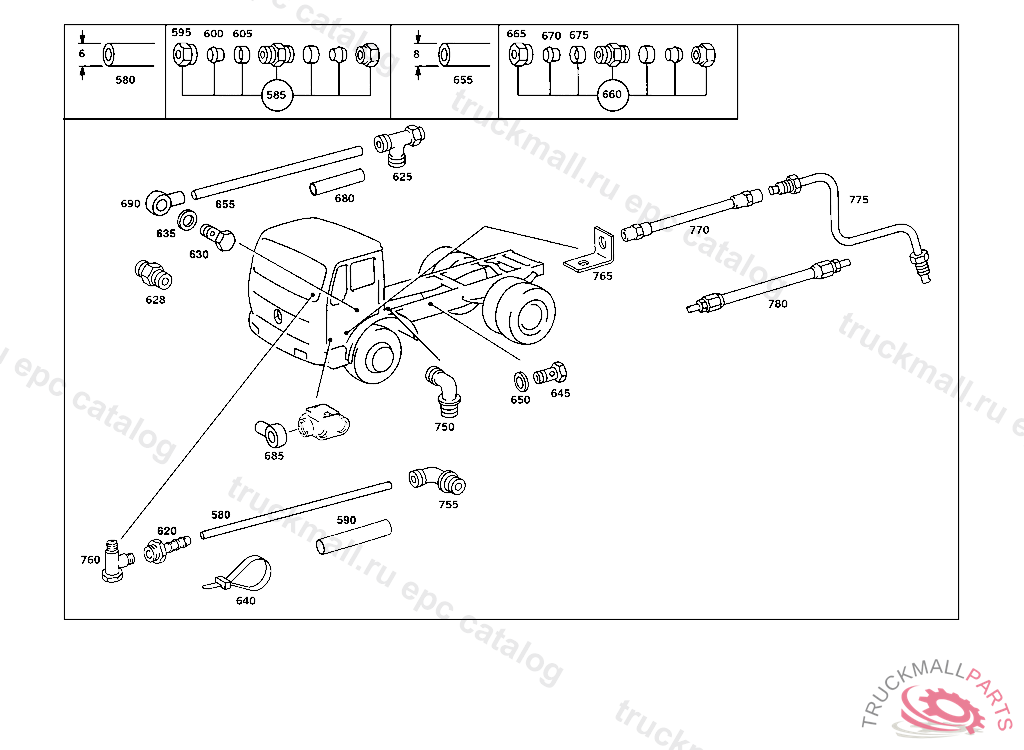

580
PLASTIC PIPE RISING PIPE 4X6 MM
580
PLASTIC PIPE RISING PIPE 4X6 MM
580
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
585
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
590
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
595
UNION NUT
595
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
600
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
600
SEAL CONE
600
GLAND , Replaced By: A0019901667
605
SLEEVE LEAK LINE
605
BUSHING , Replaced By: N915062004000
620
FITTING LINE CONNECTION TO FIRE WALL,5 726664
620
FITTING , Replaced By: N915059004000
625
T-FITTING SUPPLY LINE FOR TRANSMISSION
625
FITTING SUPPLY LINE FOR TRANSMISSION
625
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
628
FITTING DELIVERY LINE TO PUMP
630
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
635
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
640
LOOM TIE LINE MOUNTING
640
LOOM TIE LINE MOUNTING 280 MM
645
HOLLOW SCREW HEATING CONNECTION
650
SEAL RING LINE CONNECTION
655
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
660
FITTING (PARTS KIT),LINE RUPTURE
660
FITTING , Replaced By: A0029905971
665
UNION NUT LINE CONNECTION
670
GLAND LINE CONNECTION
675
SLEEVE LINE CONNECTION
675
HOSE , Replaced By: A0009872827
675
BUSHING , Replaced By: A0007630043
680
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
685
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
685
BANJO UNION , Replaced By: N915052006013
690
BANJO UNION HEATING CONNECTION,K 169122
690
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
750
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
750
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
755
ELBOW FITTING SHIFTING CYLINDER
755
ELBOW FITTING SHIFTING CYLINDER
755
ELBOW FITTING FROM ELBOW FITTING TO TRANSMISSION AIR CLEANER
755
ELBOW FITTING , Replaced By: A0019906371
760
FITTING TUMBLER SWITCH VALVE
765
BRACKET CLUTCH ACTUATION
770
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
775
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 400 MM, TO BE ADAPTED DURING ASSEMBLY
775
LINE , Replaced By: A3812901514
775
LINE , Replaced By: A3812907413
775
LINE , Replaced By: A3812907413
780
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
999
VALVE , Replaced By: A0002608157
999
THREADED BUSHING NEUTRAL POSITION
999
SEAL RING , Replaced By: N007603018100
999
SEAL RING NEUTRAL POSITION
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.00 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.20 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.40 MM
999
PIN NEUTRAL POSITION
999
CLEANERTO 000 434 22 01
999
CUP 3/2-WAY VALVE WABCO
999
VALVE GEAR CLUSTER SHIFT
999
SWITCH , Replaced By: A0005459009
999
HOLLOW SCREW , Replaced By: N915047008100
999
HANDLETO 000 434 23 01
999
ROUND CORD RING. SEAL RING ROD END
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
999
REPAIR KIT SHIFT LEVER VALVE
999
SWITCH , Replaced By: A0025458114
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
SENDER UNIT OVERREVVING
999
SENDER UNIT OVERREVVING
999
SEAL RINGTO 000 434 23 01
999
SEAL RING LEVER BEARING
999
HOSE , Replaced By: A3019971182
999
HANDLE , Replaced By: A3432600040
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SHIFTING ROD SHIFTING ROD TO JOINT,4 291253-4 366027
999
BRACKET AT CLUTCH PEDAL UNIT
999
CONNECTOR REAR SHIFTING ROD
999
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
SHIFT LEVER
999
COVER PLATE AT TRANSMISSION
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
999
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
999
YOKE CONNECTOR,4 2630144 366027
999
YOKE CONNECTOR
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
999
BRACKET , Replaced By: A6205240340
999
DECALCOMANIA NINE-SPEED
999
WASHER LEVER TO BRACKET 30X10.5X4 MM
999
WASHER , Replaced By: A4039900040
999
HOSE , Replaced By: A3019970682
999
BRACKET SOLENOID VALVE,4 411810
999
JOINT SHIFTING ROD TO TRANSMISSION
999
BRACKET AT ENGINE MOUNTING CONSOLE
999
SHIFTING ROD REAR,4 292379
999
SHIFTING ROD SHIFTING SHAFT
999
WASHER FRONT SHIFTING ROD TO REAR SHIFTING ROD,4 292379
999
BOOT SHIFTING LEVER
999
TUBE. BUSHING CAB FLOOR COVERING
999
RUBBER RING SHIFT LEVER BEARING,4 292379
999
BRACKET COMPRESSED AIR LINES
999
BRACKET LINE TO BRACKET
999
BRACKET LINE MOUNTING
999
ROD FRONT, TRANSVERSE
999
SHIFTING TUBE REAR
999
BRACKET SHIFTING TRANSFER,LEFT
999
SHIFT LEVER
999
ROD REAR,5 018216
999
SHIFTING ROD FRONT, TRANSVERSE
999
ROD
999
SHIFTING ROD REAR,4 9211775 018215
999
SHIFT LEVER
999
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE SHIFTING TRANSFER,LEFT
999
PIN SHIFTING ROD TO JOINT
999
JOINT SHIFTING TRANSFER,LEFT,4 8557044 921176
999
RUBBER PAD SHIFTING TRANSFER,LEFT
999
BOOT SHIFTING ROD
999
KNOB , Replaced By: A6202600040
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
JOINT SHIFTING TRANSFER,LEFT
999
BOOT SHIFT LEVER
999
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
FITTING , Replaced By: A0019903170
999
NUT SUCTION LINE TO OIL PUMP
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
