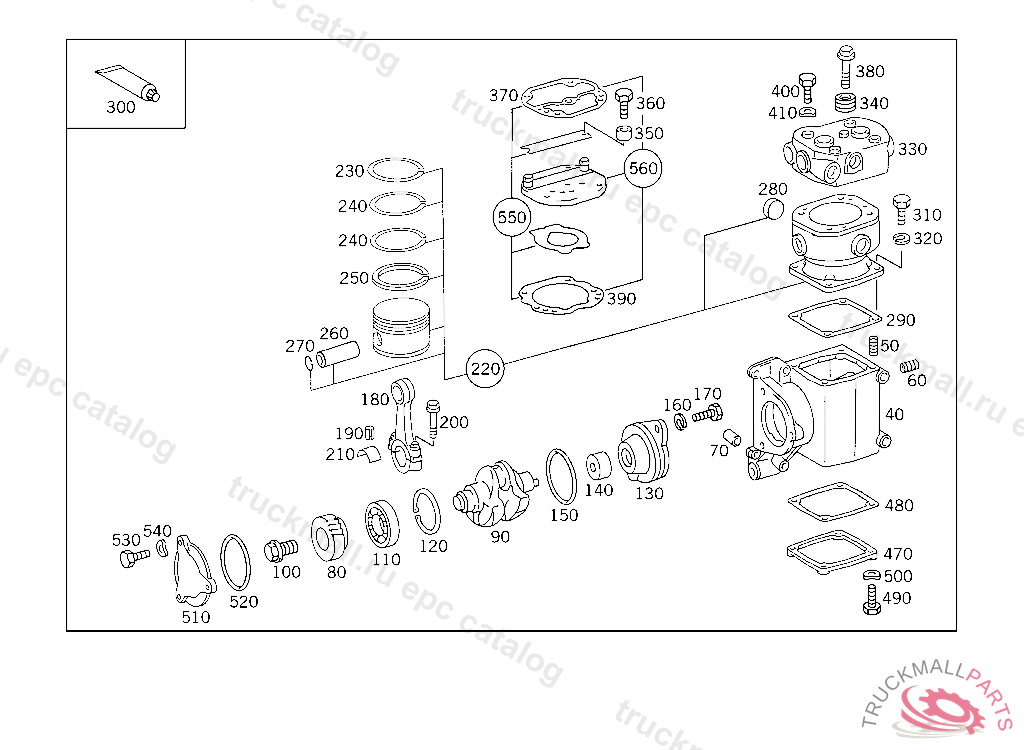

Поз.
Артикул
Описание
40
HOUSING
40
HOUSING , Replaced By: A4071300610
40
HOUSING , Replaced By: A4471310215, +001A4471310121, +001A4471310280, +002N000931008210
50
THREADED INSERT
60
THREADED INSERT ,5 462573
70
SPACER TUBE
80
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
80
DRIVE GEAR ON AIR COMPRESSOR CRANKSHAFT
90
CRANKSHAFT
90
CRANKSHAFT , Replaced By: A4031300214
90
CRANKSHAFT , 401-403,421-423,440-443,445,446888000 407,427,447062251, Replaced By: A4031311216, +001A4071300445, +001A0001321410
90
CRANKSHAFT , Replaced By: A4031310716
100
SCREW DRIVE GEAR TO CRANKSHAFT
110
CYLINDR. ROLLER BEARING AIR COMPRESSOR BEARING
110
SELF-ALGN.ROLLER BEARING DRIVE GEAR TO CRANKSHAFT
110
CYLINDR. ROLLER BEARING , Replaced By: A0079813001
110
SELF-ALGN.ROLLER BEARING , Replaced By: A0009810535
120
LOCK BEARING FLANGE IN TIMING CASE & AIR COMPRESSOR HOUSING,RESP.
130
FLANGE AIR COMPRESSOR BEARING FLANGE
130
FLANGE , Replaced By: A4071300445
140
BUSHING , Replaced By: A0001314250
140
BUSHING
150
SEAL RINGTO 388 476 71 69
150
SEAL RING , Replaced By: A0149976148
160
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
170
SCREW SHIFTING ROD TO JOINT
180
CONNECTING ROD
190
CLAMPING SLEEVE
200
SCREW THERMOSTAT HOUSING TO WATER PUMP M 8X38
210
BEARING SHELL UPPER AND LOWER HALVES
220
CYLINDER LINER WITH PISTON,AIR-COOLED
220
CYLINDER LINER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 264430, Replaced By: A4021300608
220
CYLINDER LINER WITH PISTON
230
PISTON RING , Replaced By: A0001318611
240
PISTON RING GROOVES I AND II
240
PISTON RING , Replaced By: A0001318611
250
PISTON RING GROOVE IV
250
PISTON RING GROOVE III
260
PISTON PINTO 403 130 05 17
260
PISTON PIN ,264430
270
SNAP RING
280
EXPANSION PLUG , Replaced By: A4039970620
280
EXPANSION PLUG P.T.O. HOUSING
290
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
290
GASKET , Replaced By: A4421312080
290
GASKET , Replaced By: A4421310080
290
GASKET OIL FILTER TO CYLINDER CRANKCASE
290
GASKET OIL FILTER TO CYLINDER CRANKCASE
300
SEALING COMPOUND TIMING CASE COVER TO TIMING CASE, UP TO ENGINE 978,979 331710 YEAR OF MANUFACTURE 1994
310
SCREW , Replaced By: N304017008033
320
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
330
CYLINDER HEAD WITH DISC VALVE KNORR
330
CYLINDER HEAD LESS DISC VALVE
330
CYLINDER HEAD WITH DISC VALVE BOSCH
330
CYLINDER HEAD
340
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
350
SPACER RING PRESSURE DISC TO INTERMEDIATE PLATE TO 000 130 24 19/25 19/26 19
360
SCREW PRESSURE DISC TO INTERMEDIATE PLATE M 6X20
370
GASKET , TO 001 131 54 01
370
GASKET , Replaced By: A4421310780
380
SCREWTO 376 131 74 01
390
GASKET
390
GASKET , Replaced By: A4421310980
390
GASKETWABCO
400
SCREW STRAP TO BRACKET
410
SPRING WASHER , Replaced By: N000137008212
470
CAP , Replaced By: A4421310021
470
CAP , Replaced By: A4031311021
470
CAP TO PLUG AIR COMPRESSOR OPENING,128243
480
GASKET OIL FILTER TO CYLINDER CRANKCASE
480
GASKET OIL FILTER TO CYLINDER CRANKCASE
480
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
480
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
480
GASKET
490
SCREW , Replaced By: N304017008033
500
SPRING WASHER , Replaced By: N000137008212
510
CAP COVER TO AIR COMPRESSOR HOUSING,048083048474
510
CAP COVER TO AIR COMPRESSOR HOUSING
520
SEAL RING COVER TO AIR COMPRESSOR HOUSING
520
GASKET COVER TO AIR COMPRESSOR HOUSING
530
SCREW , Replaced By: N304017008021
540
SPRING WASHER , Replaced By: N000137008212
550
REPAIR KIT , Replaced By: A4021300220
550
REPAIR KIT , Replaced By: A4021300020
560
REPAIR KIT , Replaced By: A4021300120
560
REPAIR KIT , Replaced By: A4021300320
999
BUSHING , NOT USED
