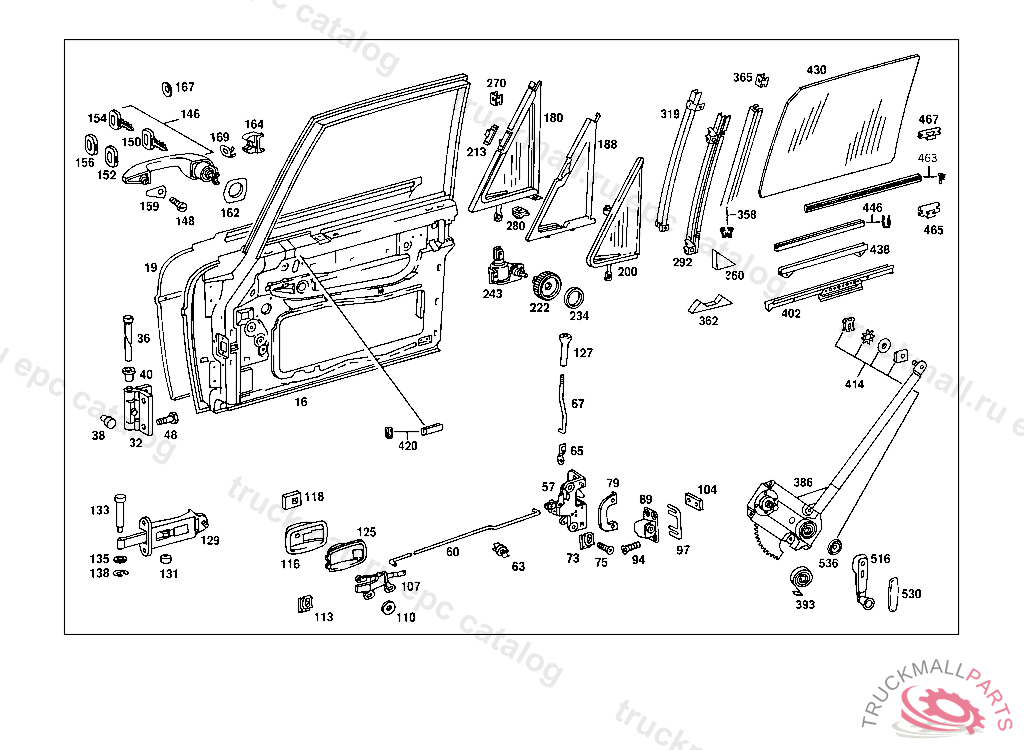

Поз.
Артикул
Описание
16
DOOR SHELL RIGHT, FROM CHASSIS: 010 105672 110 277011 ALSO INSTALLED ON: 275349,275350,276194,276195,276539,276540,276823,276869,276871,276879,276880,276885,276886,276895, 276928,276964,276969.
16
DOOR SHELL , Replaced By: A1157201805
19
PANELLING RIGHT FRONT DOOR
32
HINGE RIGHT, 068052
32
HINGE , Replaced By: A1157200537
36
HINGE PIN
38
GREASE NIPPLE
40
BUSHING
48
SCREW , Replaced By: A1239900217
48
SCREW
57
LOCK CENTRAL DOOR,001274
60
PULL ROD LEFT
63
CLIP
63
CLIP , Replaced By: A0069886378
65
LOCK PULL ROD TO DOOR LOCK
67
LOCKING ROD
73
NUT RETAINER , Replaced By: A3229900091
73
NUT RETAINER , Replaced By: A0009907191
75
SCREW , Replaced By: A1409843029
75
SCREW
79
EDGING RIGHT
89
LOCKING EYE RIGHT, FROM CHASSIS: 010 031987 ALSO INSTALLED ON: 026127-026384 110 071329 ALSO INSTALLED ON: 057116-057347
94
SCREW
97
PLATE 0.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
104
PLATE
107
INTERIOR HANDLE ASSEMBLY RIGHT
110
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
113
NUT RETAINER , Replaced By: A0009907191
113
NUT RETAINER , Replaced By: A3229900091
116
ESCUTCHEON RIGHT
118
SEAL
125
INSERT RIGHT
127
KNOB , 023 116973 033 048510 123 097280 130 120563
129
DOOR CHECK
131
ROLLER
131
ROLLER , Replaced By: A3147230068
133
PIN
135
WASHER DOOR CHECK TO FRONT PANEL PILLAR
138
LOCK
146
DOOR HANDLE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
148
PIN
150
KEY , STATE LOCK NUMBER WHEN ORDERING THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
152
KEY HEAD
154
KEY SECONDARY KEY HUF, STATE LOCK NUMBER WHEN ORDERING
156
KEY HEAD
159
PAD FRONT RIGHT
162
PAD REAR RIGHT
164
SPACER , 021506
167
DISC SPRING
169
CAP
180
VENTILATOR WINDOW RIGHT,100000
188
SEAL RIGHT
200
VENTILATOR WINDOW RIGHT, FROM CHASSIS 067393
213
MOUNTING TOP RIGHT, FROM CHASSIS 067393
222
KNOB
234
CAP
243
FASTENER RIGHT
270
CLIP
280
NUT RETAINER , Replaced By: A0009907191
280
NUT RETAINER , Replaced By: A3229900091
292
GUIDE RAIL RIGHT
319
GUIDE RAIL RIGHT, FROM CHASSIS: 017 004992 117 007505
358
SEALING SECTION 2240 MM, ORDER BY THE METER
360
SEAL , Replaced By: A1167250198
360
SEAL , FROM CHASSIS: 010 076074 110 193042 017,117 000001
362
SEAL
365
CLIP
386
WINDOW REGULATOR RIGHT, FROM CHASSIS 041712
393
SPRING
393
SPRING , Replaced By: A0007680734
402
WINDOW REGULATOR RAIL RIGHT
414
REPAIR KIT
414
REPAIR KIT , Replaced By: A1237200114
420
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
430
CRANK OPERATED WINDOW RIGHT,100000
438
RETAINING RAIL
446
RUBBER MOULDING
463
SEALING RAIL 2200 MM
465
CLIP
467
CLIP
516
CRANK
530
COVERING , STATE COLOR NUMBER WHEN ORDERING
530
COVERING , Replaced By: A1237600120
530
PAD , Replaced By: A1237600020
536
WASHER
999
WINDOW GUIDE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 005,017 004991 015 208678 105,107,108,117,119 007504 110 409031, Replaced By: A1157251330, +001A1157201715
999
WINDOW GUIDE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 005,017 004991 015 208678 105,107,108,117,119 007504 110 409031, Replaced By: A1157251430, +001A1157201815
999
WINDOW REGULATOR LEFT
999
SEAL LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
WINDOW REGULATOR LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
GLASS PANE , Replaced By: A1157202318
999
GLASS PANE , Replaced By: A1157202418
999
WINDOW GUIDE FRONT LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
SEAL LEFT
999
RAIL LEFT
999
SEAL , Replaced By: A1157280180
999
GARNISH MOULDING FRONT RIGHT
999
GARNISH MOULDING LEFT
999
DOOR HANDLE LESS KEY,LEFT, STATE LOCK NUMBER WHEN ORDERING
999
DOOR HANDLE LEFT,WORKSHOP VERSION,WITH KEY,ANY LOCK
999
DOOR HANDLE RIGHT,WORKSHOP VERSION,WITH KEY, ANY LOCK
999
PAD , Replaced By: A1157660205
999
PAD LEFT
999
CLIP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 092933 015 112061 100,102,103,110,112 238351 115 118982, Replaced By: A1159881778
999
CLIP , 003030
999
COVERING LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
SEAL INSIDE 4000 MM
999
BRACKET , Replaced By: A1147201114
999
SHEET METAL SCREW MODULE TO HOUSING
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO BRACKET
999
SCREW GUIDE TO STEERING COLUMN END,4 430730
999
TOOTHED WASHER CABLE TO FUSE BOX
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW , Replaced By: N000000000453
999
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
999
SHEET METAL SCREW
999
SHEET METAL SCREW GLOVE COMPARTMENT TO INSTRUMENT PANEL
999
SHEET METAL SCREW , Replaced By: N007982003209
999
SHEET METAL SCREW , FROM CHASSIS: 010 000100 110 000057
999
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
999
SCREW , Replaced By: N000000001933
999
SCREW
999
SCREW ,K 062140, Replaced By: N007985006580
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
RIVET
999
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
COMBINATION BOLT INTERMEDIATE BEARING TO FRAME
999
SHEET METAL SCREW COVERING TO OUTSIDE CENTRAL PIECE
999
EDGE GUARD SECTION , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 046111 015 047160 100,102,103,110,112 110623 115 051063, Replaced By: A1157201497
999
EDGE GUARD SECTION LEFT, STATE COLOR NUMBER WHEN ORDERING
999
EDGE GUARD SECTION RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
EDGE GUARD SECTION , Replaced By: A1157200997
999
EDGE GUARD SECTION , Replaced By: A1157201097
999
DOOR SHELL , Replaced By: A1157201705
999
CRANK OPERATED WINDOW LEFT, UP TO CHASSIS: 015,115 200000 110 400000
999
DOOR SHELL LEFT
999
GUIDE RAIL LEFT, FROM CHASSIS: 005,017 004992 015 208679 105,107,108,117,119 007505 110 409032
999
VENTILATOR WINDOW LEFT
999
ROD , Replaced By: A1157230369
999
VENTILATOR WINDOW LEFT, FROM CHASSIS: 000,002,010 081999 015 095545 100,102,103,110,112 209526 115 102597 UP TO CHASSIS: 015,115 200000 110 400000
999
CRANK OPERATED WINDOW LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
PANELLING LEFT
999
PANELLING RIGHT
999
PANELLING LEFT
999
PANELLING RIGHT
999
PANELLING LEFT
999
PANELLING RIGHT
999
PANELLING LEFT
999
PANELLING
999
CONSOLE
999
CONSOLE
999
PULL ROD RIGHT
999
PLATE 1.5 MM, FROM CHASSIS: 010 031987, ALSO INSTALLED ON: 026127-026384 110 071329, ALSO INSTALLED ON: 057116-057347
999
GLASS PANE , Replaced By: A1157201518
999
PLATE OUTSIDE LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
SEAL LEFT, UP TO CHASSIS: 015,115 200000 110 400000
999
GLASS PANE , Replaced By: A1157201618
999
PLATE INSIDE LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
PLATE INSIDE LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
PLATE
999
EDGE GUARD SECTION , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 046111 015 047160 100,102,103,110,112 110623 115 051063, Replaced By: A1157201397
999
WEATHERSTRIP LEFT
999
WINDOW REGULATOR RAIL LEFT, FROM CHASSIS: 015,115 200001 110 400001
999
PANELLING RIGHT
999
VENTILATOR WINDOW , UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596, Replaced By: A1157202055, +001A1087200427
999
DOOR SHELL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 015,115 200000 110 400000, Replaced By: A1157201605
999
PANELLING LEFT
999
VENTILATOR WINDOW , UP TO CHASSIS: 000,002,010 081998 015 095544 100,102,103,110,112 209525 115 102596, Replaced By: A1157201955, +001A1087200327
999
PANELLING LEFT, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS: 015,115 200001 110 400001
999
DOOR SHELL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 015,115 200000 110 400000, Replaced By: A1157201505
999
LOCKING EYE LEFT
999
LOCK LEFT AT CENTRAL SIDE DOOR,001274
999
WEATHERSTRIP , Replaced By: A1157200878
999
PANELLING RIGHT
999
VENTILATOR WINDOW , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 081988 015 095544 100,102,103,110,112 209525 115 102596, Replaced By: A1157201855
999
HINGE , UP TO CHASSIS: 000,002,010 083223 015 097126 100,102,103,110,112 212123 115 104333, Replaced By: A1157200637, +008A1239900317
999
LOCK WITH INTERIOR LOCKING MECHANISM,RIGHT
999
LOCKING EYE , Replaced By: A1157200604, +001A1157230511
999
WEATHERSTRIP , Replaced By: A1157200778
999
PANELLING LEFT
999
FASTENER LEFT, UP TO CHASSIS: 015,115 200000 110 400000
999
VENTILATOR WINDOW , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 000,002,010 081988 015 095544 100,102,103,110,112 209525 115 102596, Replaced By: A1157201755
999
PANELLING , Replaced By: A1157200551
999
WINDOW REGULATOR RAIL LEFT, UP TO CHASSIS: 015,115 200000 110 400000
