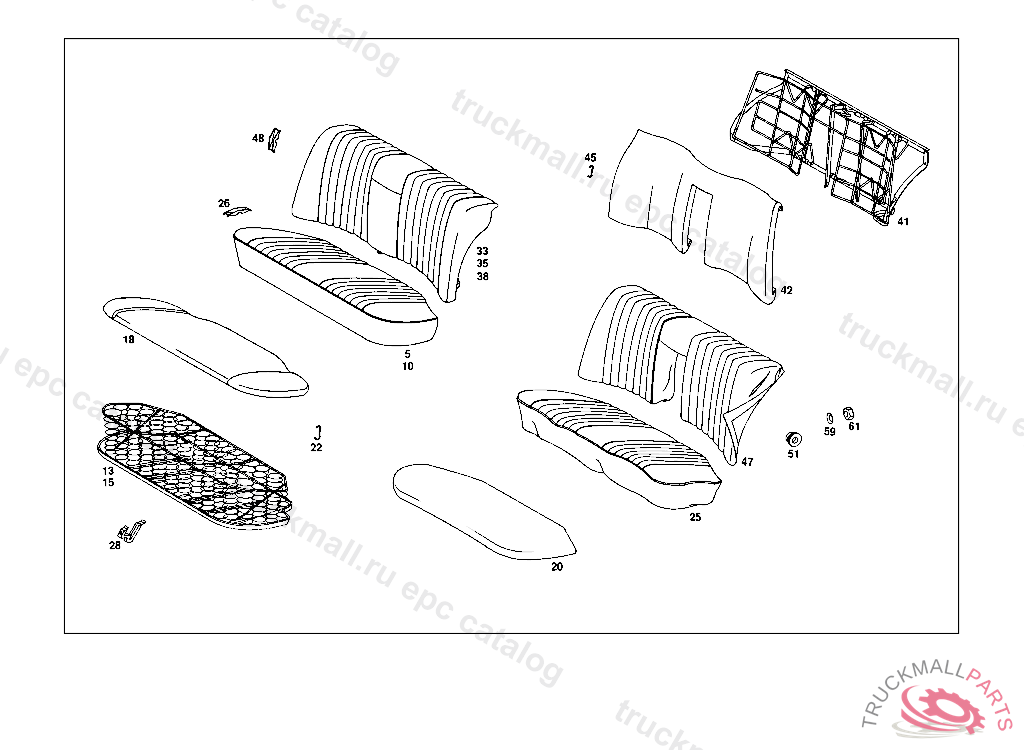

Поз.
Артикул
Описание
15
CUSHION FRAME
20
PAD
22
CLIP COVER TO PAD
26
CLIP
28
BRACKET
33
BACKREST , STATE COLOR NUMBER WHEN ORDERING 000016
35
BACKREST
41
BACKREST FRAME , 034415
42
PAD
42
PAD , Replaced By: A1159241516
45
CLIP COVER TO PAD
48
CLIP
51
SUPPORT
59
WASHER
61
NUT BALL PIVOT TO LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
LOCK PLATE
999
SCREW
999
COVER
999
COVER , Replaced By: A1159240516
999
PAD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 010 091777 015 112060 110,112 234177 115 118981, Replaced By: A1159241014
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
REAR SEAT CUSHION
999
SEAT CUSHION
999
SEAT CUSHION
999
REAR SEAT CUSHION , Replaced By: A1159201320
999
BACKREST LESS COVER
999
CUSHION FRAME , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 010 091777 015 112060 110,112 234177 115 118981, Replaced By: A1159200922
999
SEAT CUSHION LESS COVER
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
REAR SEAT BACKREST , Replaced By: A1159200430
999
BACKREST FRAME , UP TO CHASSIS: 010 038362 015 037125 110,112 087679 115 039985, Replaced By: A1159201032, +001A1159702030, +002A1159730820
999
BACKREST LESS COVER , Replaced By: A1159200304
