Поз.
Артикул
Описание
1

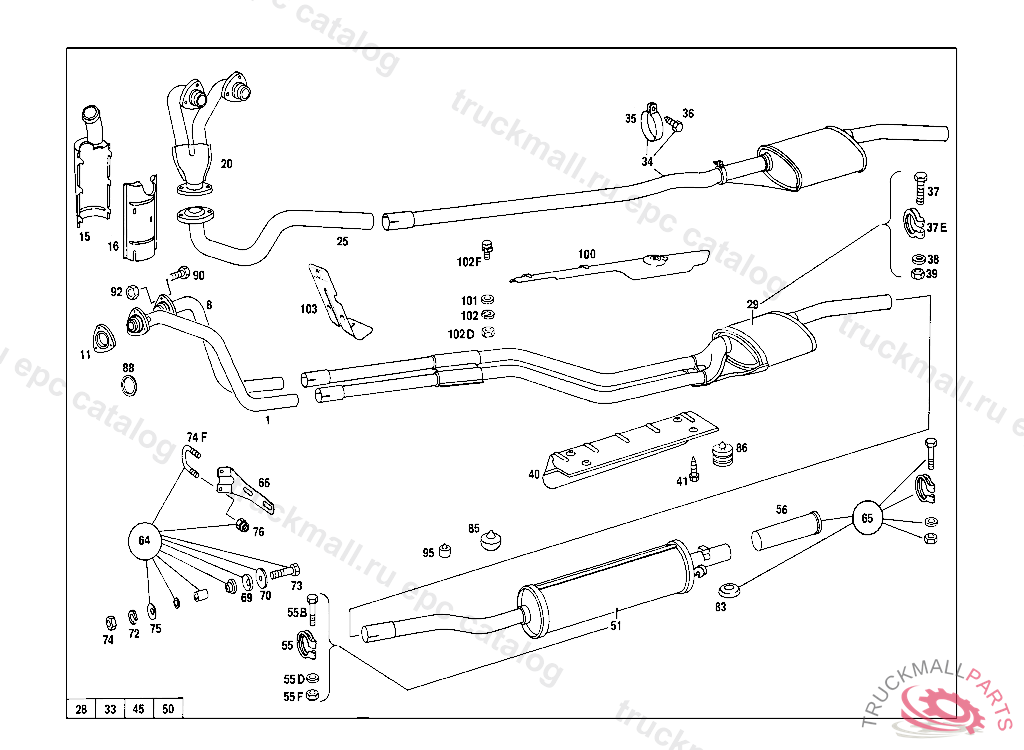

EXHAUST PIPE TO CYLINDERS NOS. 1-3, 002575
8
EXHAUST PIPE CYLINDERS NOS.4-6
11
FLANGE
15
AIR PRE-HEATER
16
JACKET
20
EXHAUST PIPE FRONT, 007104
25
EXHAUST PIPE FRONT
35
CLAMP HEAT SHIELD MOUNTING, UP TO IDENT NO. 003 038514 EXCEPT FOR 038269,038362,038363.
36
SHEET METAL SCREW
37
CLAMP , Replaced By: A0004900341
37
CLAMP , Replaced By: A1144900141
37
CLAMP , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
38
WASHER BRACKET TO CROSS MEMBER
39
NUT
40
PROTECTIVE PLATE
41
SCREW , Replaced By: N007976004217
45
EXHAUST PIPE WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
50
MUFFLER WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
51
EXHAUST MUFFLER WITH PIPE REAR,CLAMP-ON VERSION A1144913401
55
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
55
CLAMP , Replaced By: A1074900041
56
END PIECE
64
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION
65
REPAIR KIT FROM PLUG CONNECTION, ONLY APPLICABLE TO EXHAUST MUFFLER WITH PIPE CLAMP
65
REPAIR KIT , Replaced By: A1145860649
66
BRACKET , 114.011 014698 114.015 125698 114.023 009130 114.060 003009 114.062 003318 114.072 002880 114.073 000421
69
WASHER HIGH PRESSURE HOSE TO BRACKET
70
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
73
SCREW VALVE TO BRACKET
74
NUT
75
DISC SPRING EXHAUST PIPE TO BRACKET
76
NUT POWER CYLINDER TO BRACKET
76
NUT , Replaced By: A0009903250
83
DAMPING PAD EXHAUST PIPE SUSPENSION
85
RUBBER BUFFER STOP ABOVE POSTERIOR MUFFLER TO BRACKET ON CROSS MEMBER
85
RUBBER BUFFER , Replaced By: A1079871140
85
RUBBER BUFFER , Replaced By: A1079870840
86
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
88
SEAL RING
90
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
90
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
92
NUT , Replaced By: A0009903250
92
NUT POWER CYLINDER TO BRACKET
95
RUBBER BUFFER
100
PROTECTIVE PLATE , UP TO CHASSIS: 073 001470
101
WASHER COMPRESSED AIR LINE TO BRACKET
101
WASHER , Replaced By: N009021006208
102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
WASHER
999
CLAMP , Replaced By: A1074900041
999
EXHAUST MUFFLER WITH PIPE WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
999
EXHAUST PIPE , 002574, Replaced By: A1144901619, +001A0010940082, +001A1141400070, +001A1141430025, +001A1144901719, +001N000137006101, +001N000933006016
999
EXHAUST PIPE , Replaced By: A1144900215
999
EXHAUST PIPE FRONT, 090082
999
MUFFLER WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
999
REPAIR KIT FROM PLUG CONNECTION, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 005,007,008,015,017 200000 011,060,062 100000
999
EXHAUST MUFFLER WITH PIPE CENTRAL,CLAMP-ON VERSION
999
EXHAUST PIPE , Replaced By: A1154900215
999
BRACKET
999
RUBBER BUFFER STOP BUFFER BETWEEN TRANSMISSION AND TUNNEL,193 004315 UP TO END OF MODEL YEAR '81
999
SCREW LINES UNDER FUEL TANK
999
CLAMPING BRACKET EXHAUST PIPE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW , Replaced By: N304017008043
999
SCREW , Replaced By: N304017006034
999
SCREW FITTING TO TRANSMISSION M8X32
999
NUT CYLINDER TO BRACKET TO0002902112
999
SHEET METAL SCREW VALVE TO WINDOW SILL
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW VALVE TO BRACKET M 8X55
999
NUT BATTERY MOUNTING
999
NUT , Replaced By: A0009903250
