18 ENGINE LUBRICATION
001 INJECTION PUMP IL.2

Mercedes N000933006102 - SCHRAUBE

OM 422 LA 422.953

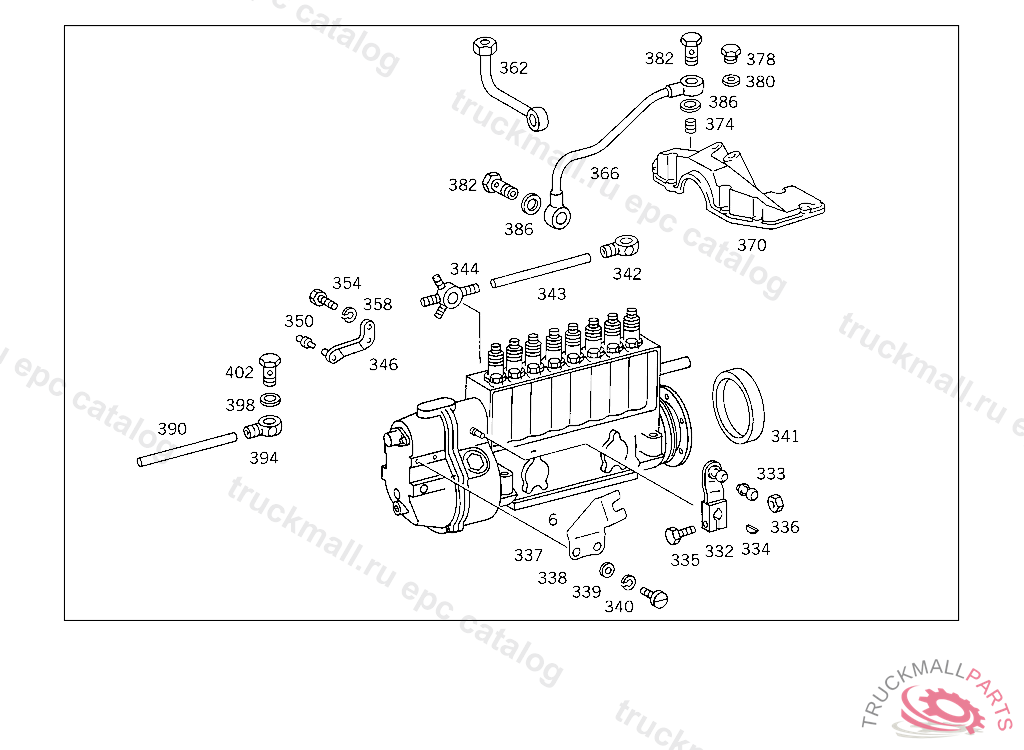

18 ENGINE LUBRICATION - 001 INJECTION PUMP IL.2

Поз.
Артикул
Описание
6
A0060746402
INJECTION PUMP
6
A0080745202
INJECTION PUMP
6
A0050742302
INJECTION PUMP
6
A0050747702
INJECTION PUMP
6
A0110743702
INJECTION PUMP
6
A0050742202
INJECTION PUMP
6
A0080745302
INJECTION PUMP
6
A0130747202
INJECTION PUMP
6
A0120745502
INJECTION PUMP
6
A0120749702
INJECTION PUMP
6
A0050742902
INJECTION PUMP
6
A0160748202
INJECTION PUMP
6
A0060744002
INJECTION PUMP
6
A0030747302
INJECTION PUMP
6
A0100747302
INJECTION PUMP
6
A0110740402
INJECTION PUMP
6
A0100747402
INJECTION PUMP
6
A0100749402
INJECTION PUMP
6
A0090745802
INJECTION PUMP
6
A0100746502
INJECTION PUMP
6
A0060744702
INJECTION PUMP
6
A0090745702
INJECTION PUMP
6
A0080745102
INJECTION PUMP
6
A0050746502
INJECTION PUMP
6
A0060743502
INJECTION PUMP
6
A0100747802
INJECTION PUMP
6
A0130740902
INJECTION PUMP
6
A0030747102
INJECTION PUMP
6
A0120749602
INJECTION PUMP
6
A0120749402
INJECTION PUMP
6
A0110740202
INJECTION PUMP
6
A0100746302
INJECTION PUMP
6
A0110740302
INJECTION PUMP
6
A0160748102
INJECTION PUMP
6
A0080745502
INJECTION PUMP , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
A0120749902
INJECTION PUMP
6
A0120742202
INJECTION PUMP
6
A0130743302
INJECTION PUMP
6
A0050743002
INJECTION PUMP
6
A0120748102
INJECTION PUMP
6
A0090744502
INJECTION PUMP
6
A0110740502
INJECTION PUMP
6
A0070748802
INJECTION PUMP
6
A0040747702
INJECTION PUMP
6
A0080740102
INJECTION PUMP
6
A0100744602
INJECTION PUMP
6
A0040747602
INJECTION PUMP
6
A0100747002
INJECTION PUMP
6
A0130747102
INJECTION PUMP
6
A0030747402
INJECTION PUMP
6
A0130740102
INJECTION PUMP
6
A0030747202
INJECTION PUMP
6
A0060746302
INJECTION PUMP
6
A0030742202
INJECTION PUMP ,001178
6
A0030746502
INJECTION PUMP
6
A0130746302
INJECTION PUMP
6
A0110743602
INJECTION PUMP
6
A0120748002
INJECTION PUMP , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
A0060746602
INJECTION PUMP
6
A0060746502
INJECTION PUMP
6
A0060742502
INJECTION PUMP
332
A4030706421
LEVER
333
A3129910120
BALL PIVOT LEVER
333
N071803010209
BALL PIVOT , Replaced By: A3129910120
334
N006888002001
WOODRUFF KEY LEVER TO SHAFT
335
N910105005001
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
336
N913023005002
NUT RELAY TO BRACKET M5
337
A4030724540
BRACKET
338
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
338
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
339
N912006006002
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
340
N910105006004
SCREW , Replaced By: N914146006102
340
N914146006102
SCREW CLAMP MOUNTING M 6X16
341
A4420740059
SEAL RING INJECTION PUMP LUBRICATION,473001
342
N000000000363
BANJO UNION FEED
342
N915052008016
BANJO UNION , Replaced By: N000000000363
343
A0089975482
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
344
A4039900088
BANJO UNION
346
A4030700821
LEVER AT INJECTION PUMP
350
N071803010204
BALL PIVOT
354
N000933006102
SCREW COVER PLATE TO BRACKET
358
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
362
A4020700081
LINE CONNECTION OF CHARGING AIR PIPES
366
A4221800122
OIL LINE RETURN, FROM INJECTION PUMP TO TIMING CASE COVER
370
A4230100217
COVER
374
N900195014205
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
378
N007604014110
SCREW PLUG FUEL TANK
378
N007604014106
SCREW PLUG , Replaced By: N007604014110
380
N007603014106
SEAL RINGTO 000 553 03 05,000 553 18 05,
382
A3649900063
HOLLOW SCREW FUEL LINE TO FEED PUMP
386
N007603014106
SEAL RINGTO 000 553 03 05,000 553 18 05,
390
A4019975382
HOSE MAIN LUBRICATING LINE,PUMP,DISTRIBUTOR 10X2 MM, ORDER BY THE METER
394
N915052006013
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
398
N007603012113
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
402
N915036008202
HOLLOW SCREW HEATING CONNECTION
999
A0000740252
SPACER WASHER AS REQUIRED 1.2 MM
999
A0000740452
SPACER WASHER 1.80 MM
999
A0000743052
SPACER WASHER0.50 MM
999
A0000743080
GASKET , Replaced By: A0010743180
999
A0000743859
SEAL RING , Replaced By: A0000743959
999
A0000743880
GASKET , Replaced By: A0010742880
999
A0000743884
VALVE , Replaced By: A0000747884
999
A0000746584
VALVE , Replaced By: A0000747684
999
A0000749380
GASKET
999
A0000749880
GASKET
999
A0000781869
FITTING , Replaced By: A0000782969
999
A0000910541
CLAMPING BRACKET FILTER HOUSING TO PUMP
999
A0000911280
GASKET , Replaced By: A0000911880
999
A0000911490
PUMP , Replaced By: A0000904050
999
A0000911880
GASKET , Replaced By: A0010742280
999
A0009900005
STUD , Replaced By: A0009909505
999
A0009900357
NUT
999
A0009900805
STUD
999
A0009903305
STUD , Replaced By: A0009905405
999
A0010740980
GASKET , Replaced By: A0010742280
999
A0010741380
GASKET , Replaced By: A0010743080
999
A0020741002
INJECTION PUMP , Replaced By: A0030747402
999
A0020744602
INJECTION PUMP ,001177, Replaced By: A0030742202, +001A4039900088, +001A0089975482, +003N915052008000
999
A0020747302
INJECTION PUMP
999
A0020914901
FUEL PUMP
999
A0020917001
FUEL PUMP , Replaced By: A0000902450
999
A0020917201
FUEL PUMP , Replaced By: A0000902550
999
A0030742301
INJECTION PUMP , Replaced By: A0050742202
999
A0030742402
INJECTION PUMP , Replaced By: A0030746502
999
A0030742502
INJECTION PUMP , Replaced By: A0050742302
999
A0040747402
INJECTION PUMP , Replaced By: A0060746502
999
A0040747502
INJECTION PUMP , Replaced By: A0060746602
999
A0060749302
INJECTION PUMP , Replaced By: A0070742002
999
A0070742002
INJECTION PUMP , Replaced By: A0100747302
999
A0070742102
INJECTION PUMP , Replaced By: A0110740602
999
A0080741002
INJECTION PUMP , Replaced By: A0090745702
999
A0080741102
INJECTION PUMP , Replaced By: A0090745802
999
A0080741202
INJECTION PUMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0090741102
999
A0080742902
INJECTION PUMP , Replaced By: A0100746502
999
A0090741102
INJECTION PUMP , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 117068, Replaced By: A0120749602
999
A0090741302
INJECTION PUMP , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 117068, Replaced By: A0120749702
999
A0090743402
INJECTION PUMP , Replaced By: A0130740102
999
A0090745602
INJECTION PUMP , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 117068, Replaced By: A0120749902
999
A0110740602
INJECTION PUMP , Replaced By: A0100747402
999
A0130743102
INJECTION PUMP , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 459865, Replaced By: A0160748202
999
A4021800022
OIL LINE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 402 260762 422 017421, Replaced By: A4221800122
999
A4030101417
COVER , Replaced By: A4230100217, +001A4229970230, +001N007603014302, +001N007603038101, +001N007604014106
999
A4030740059
SEAL RING ,473000, Replaced By: A4420740059, +001A4420150060
999
N000720030206
TAPERED ROLLER BEARING FRONT
999
N000720032206
TAPERED ROLLER BEARING , Replaced By: A0019816505
999
N915036010100
HOLLOW SCREW
