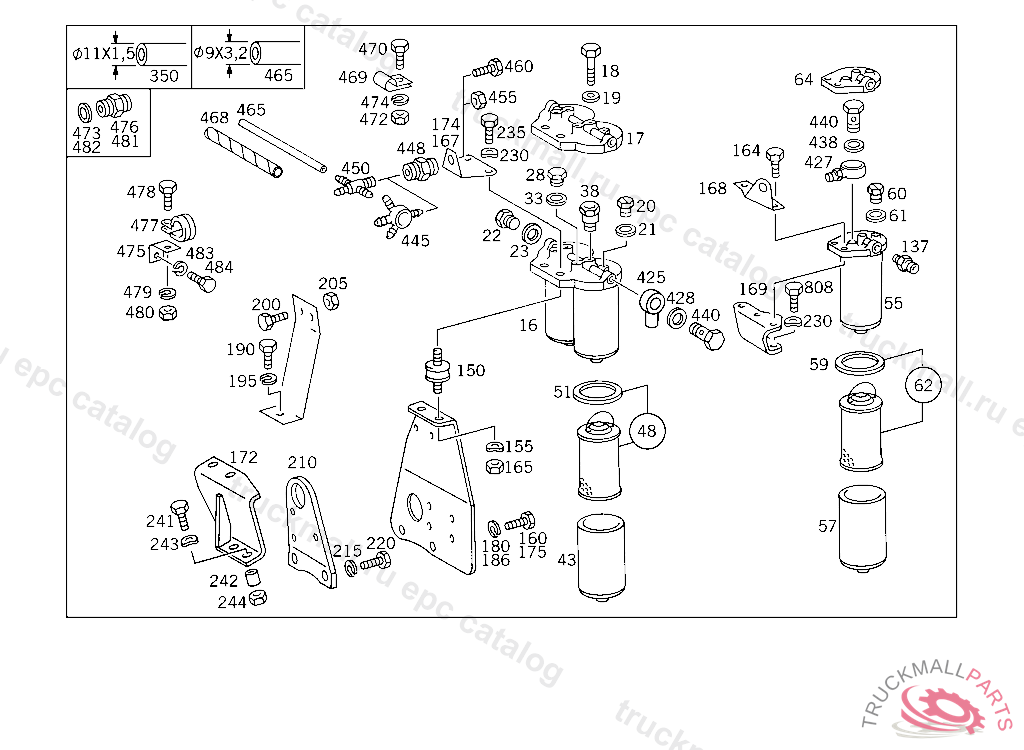

Поз.
Артикул
Описание
16
FILTER MAKE KNECHT
16
FILTER MAKE HENGST
16
FILTER
17
COVERTO 001 477 50 01
17
FILTER HEAD
17
COVERTO 001 477 58 01
17
FILTER HEADTO 001 092 08 01
17
COVERTO 001 477 14 01
17
COVERTO 001 477 49 01
17
COVERTO 001 477 13 01
18
SCREWTO 001 477 20 01,001 477 21 01
18
SCREW FRONT AXLE REGULATING SOLENOID VALVE
18
SCREW FRONT AXLE REGULATING SOLENOID VALVE
18
SCREW , Replaced By: N000933008134
18
SCREW , Replaced By: N304014008007
19
SEAL RING SCREW PLUG
20
SCREW BREATHER TO 422 090 02 52
20
SCREW BREATHER TO 001 477 50 01
20
SCREW (BREATHER SCREW)
20
SCREW BREATHER TO 001 477 14 01
21
SEAL RING (BREATHER SCREW) TO 001 477 50 01
21
SEAL RING CONTROL VALVE,5 093991
21
SEAL RING SCREW PLUG
22
SCREW PLUG FUEL TANK
22
SCREW PLUG , Replaced By: N007604014110
23
SEAL RING FUEL LINE TO FEED PUMP
23
SEAL RINGTO 000 553 03 05,000 553 18 05,
28
SCREW PLUG
28
SCREW PLUGTO 000 553 03 05,000 553 18 05,
28
SCREW PLUG , Replaced By: N000908014009
33
SEAL RING FUEL LINE TO FEED PUMP
33
SEAL RING CONTROL VALVE,5 093991
33
SEAL RING VALVE TO VALVE,K 025179
38
FITTINGTO 001 477 13 01
38
CONNECTORTO 001 477 14 01
43
HOUSING
48
TS AIR FILTER ELEMENT WITH SEAL RING
48
FILTER ELEMENT REPAIR KIT
48
FILTER ELEMENT , Replaced By: A0000901451
48
FILTER ELEMENT ,D 031294
48
FILTER ELEMENT , Replaced By: A0000901151
51
SEAL RING FUEL FILTER COVER
51
SEAL RING ,D 031246
55
FILTER
55
FILTER , Replaced By: A4420900452
57
HOUSING
59
SEAL RING FUEL FILTER COVER
60
SCREW BREATHER TO 422 090 02 52
60
SCREW , Replaced By: A4420740071
61
SEAL RING SCREW PLUG
62
TS AIR FILTER ELEMENT WITH SEAL RING
62
FILTER ELEMENT , Replaced By: A0000901451
64
FILTER HEADTO 442 090 04 52
64
FILTER HEAD
137
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
150
BUFFER ,002101
155
SPRING WASHER CAB FLOOR
160
SCREW BRACKET MOUNTING
160
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
164
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
164
SCREW BRACKET MOUNTING
165
NUT BRACKET TO SIDE MEMBER M12X1.5
165
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
167
BRACKET MULTI-STAGE FUEL FILTER
168
BRACKET
168
BRACKET
169
BRACKET FUEL FILTER
169
BRACKET , Replaced By: A4220901241
172
SUPPORT
174
SUPPORT FUEL FILTER
174
BRACKET MULTI-STAGE FUEL FILTER
175
SCREW BRACKET WITH FUEL FILTER TO ENGINE
175
SCREW CONNECTING PIPE
180
LOCK WASHERROCKINGER TYP 59 G140,59 G150
186
LOCK WASHER FITTING TO BRACKET
190
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
195
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
200
SCREW CLAMP TO BRACKET AND TO PIPE
205
NUT
205
NUT , Replaced By: N304032008006
210
SUSPENSION EYE REAR,002102
215
LOCK WASHERROCKINGER TYP 59 G140,59 G150
220
SCREW SUPPORTING ARM TO BELL HOUSING
230
SPRING WASHER CAB FLOOR
235
CYLINDRICAL HEAD SCREW. SCREW TIGHTENER PULLEY TO LEVER M 12X1.5X30, 362 842770 364 012804 EXCEPT FOR 012768,012771,021773,012776,012779-012785 366 048719
235
SCREW BEARING BRACKET TO FRAME
235
SCREW MOUNTING PARTS M 12X65
235
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
235
HEXAGON HEAD BOLT BRACKET TO BEARING BRACKET M12X35
235
SCREW MOUNTING PLATE,SHOCK ABSORBER CROSS MEMBER & SHIM TO FRAME SIDE MEMBER M 12X45
235
SCREW BRACKET MOUNTING
235
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
235
SCREW
235
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
235
SCREW BRACKET TO SIDE MEMBER
235
HEXAGON HEAD BOLT , Replaced By: A0029902704
235
SCREW TORSION BAR TO SHACKLE,5 903514
235
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
235
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
235
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
235
SCREW TRANSMISSION
235
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
235
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
235
SCREW BRACKET TO SIDE MEMBER M10X35
235
SCREW LEFT AND RIGHT CONSOLES TO CAB
235
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
235
SCREW , Replaced By: N000961012051
235
SCREW , Replaced By: N308676012015
235
SCREW , Replaced By: N308676012012
235
SCREW ,5 903514, Replaced By: N000960012353
235
SCREW , Replaced By: N304017012022
235
SCREW , Replaced By: N304017010051
241
SCREW BRACKET TO SIDE MEMBER M10X35
241
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
242
SPACER TUBE BRACKET TO TRANSMISSION
243
SPRING WASHER STEERING COLUMN BRACKET TO CAB
244
NUT , Replaced By: N913023010002
244
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
350
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
425
BANJO UNION FEED
425
BANJO UNION , Replaced By: N000000000363
427
BANJO UNION , Replaced By: N000000000363
427
BANJO UNION FEED
427
BANJO UNION FUEL TANK-TO-FUEL-PUMP FUEL LINE
428
HOLLOW SCREW FITTING INJECTION PUMP BLEEDING
428
HOLLOW SCREW FITTING LINE CONNECTION
438
SEAL RING INJECTION PUMP
440
HOLLOW SCREW FUEL LINE TO FEED PUMP
440
HOLLOW SCREW HEATING CONNECTION
445
BANJO UNION
448
DOUBLE FITTING FEED LINE AND RETURN LINE,842222, 001-041
450
INTERMEDIATE PIECE RETURN LINE TO INJECTION PUMP
450
INTERMEDIATE PIECE AT INJECTION PUMP
455
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
460
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET
465
HOSE LEAK LINE, ORDER BY THE METER
468
HOSE , ORDER BY THE METER
468
SEAL RING INJECTION PUMP
469
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
470
SCREW STOP TO BATTERY CASE
470
SCREW BRACKET TO ALTERNATOR
472
NUT , Replaced By: N304032008006
472
NUT
473
SEAL RING VALVE TO VALVE,K 025179
474
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
475
BRACKET AT TRANSMISSION
476
ADAPTER FITTING FROM FUEL PUMP TO FILTER
477
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
477
CLAMP ,K 147121, Replaced By: N000000000319
478
SCREW COVER PLATE TO COVER PLATE M 6 X 12
478
SCREW , Replaced By: N304017006018
478
SCREW LEVER TO ENGINE CONTROL SHAFT
479
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
480
HEXAGON NUT. NUT LINE TO SIDE MEMBER
480
NUT , Replaced By: N913023006001
480
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
481
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
482
SEAL RING VALVE TO VALVE,K 025179
483
LOCK WASHER FITTING TO BRACKET
484
SCREW BRACKET TO TRANSMISSION CASE
808
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
808
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
808
SCREW , Replaced By: N308676012012
999
HOLLOW SCREW
999
SCREW FITTING , Replaced By: A4039971172
999
SCREW BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125008443
999
FITTING
999
HOSE , Replaced By: A6050780581
999
HOSE , Replaced By: A6154760326
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 421-422 105120, Replaced By: A4220900441
999
BRACKET , Replaced By: A4230900341
999
FILTER , Replaced By: A4420900452
999
BRACKET , Replaced By: A4220901241
999
COVER , Replaced By: A4220920108
999
HOSE , Replaced By: A4079976482
999
HOSE , Replaced By: A4079976482
999
BRACKET , Replaced By: A4030900741
999
HOSE , Replaced By: A4279970982
999
HOSE
999
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4070900341
999
INTERMEDIATE PIECE , Replaced By: A4470780068
999
OIL LINE
999
HOSE , Replaced By: A0119977782
999
HOSE , Replaced By: A0119977782
999
BRACKET
999
BRACKET , NO LONGER AVAILABLE
999
HOSE , Replaced By: A6154760326
999
LINE FROM INJECTION PUMP OVERFLOW LINE TO FUEL FILTER OVERFLOW VALVE
999
LINE FROM PREFILTER TO FEED PUMP
999
ENGINE SUPPORT
999
BRACKET , Replaced By: A4230900341
999
BRACKET , Replaced By: A4030900741
999
BRACKET , Replaced By: A4030920840
999
BRACKET ,002101
999
BRACKET , Replaced By: A4220900041
999
BRACKET , Replaced By: A4030920540
999
BRACKET FUEL LEAK LINE
999
HOSE , Replaced By: A6154760326
999
HOSE , Replaced By: A0119977782
