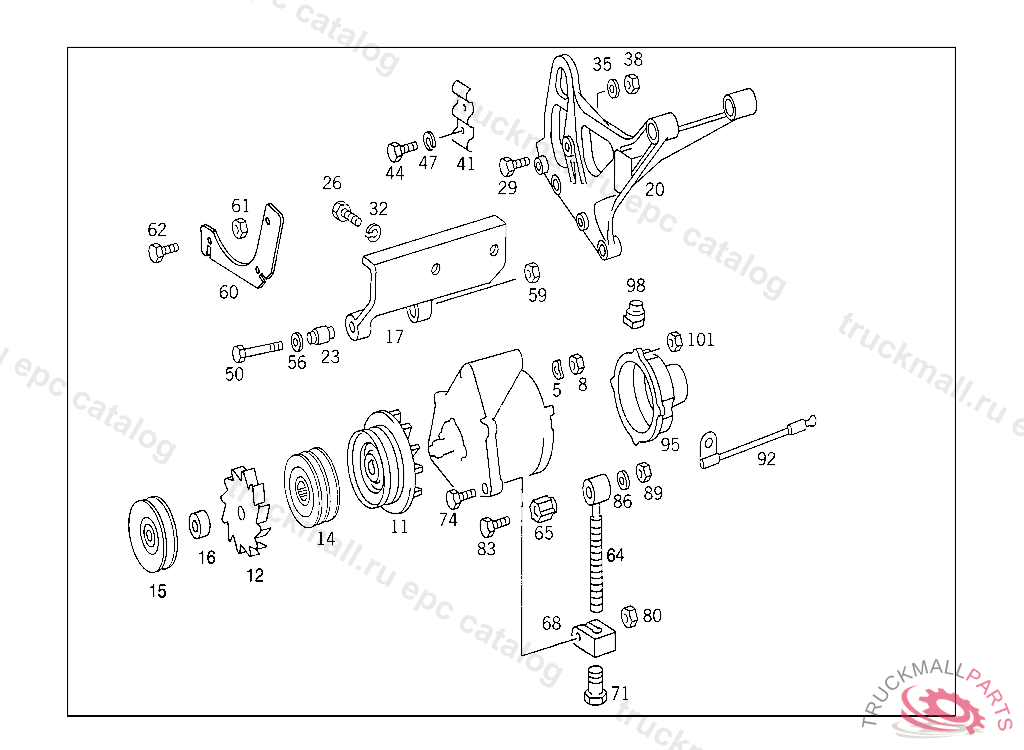

Поз.
Артикул
Описание
5
SPRING WASHER ALTERNATOR CONNECTION W
5
SPRING WASHER , Replaced By: N000137008212
5
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
8
NUT , Replaced By: N913023006001
8
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
8
NUT
14
PULLEY TWO-GROOVE
14
PULLEY TWO-GROOVE,061992
20
SUPPORT ALTERNATOR
23
BUSHING
26
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
26
SCREW , Replaced By: N304017010035
29
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
35
WASHER RADIATOR TO RUBBER MOUNTING
38
NUT , Replaced By: N913023010002
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
CLAMP FUEL LINE, 741959
41
CLAMP LINE MOUNTING
41
CLAMP FUEL LINE TO SUPPORT
44
SCREW , Replaced By: N000000001479
44
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
50
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
56
WASHER , Replaced By: N000433013010
56
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
59
NUT BRACKET TO SIDE MEMBER M12X1.5
64
CLAMPING BOLT
65
BUSHING
68
CLAMPING PIECE TIGHTENER PULLEY
68
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
68
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
71
NUT ALTERNATOR
74
SCREW CLAMPING BOLT TO ALTERNATOR
80
NUT BRACKET TO SIDE MEMBER
83
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
86
WASHER RADIATOR TO RUBBER MOUNTING
89
NUT , Replaced By: N913023010002
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
COVER
98
GASKET
101
NUT , Replaced By: N913023006001
101
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
999
SPRING WASHER LICENSE PLATE TO BRACKET
