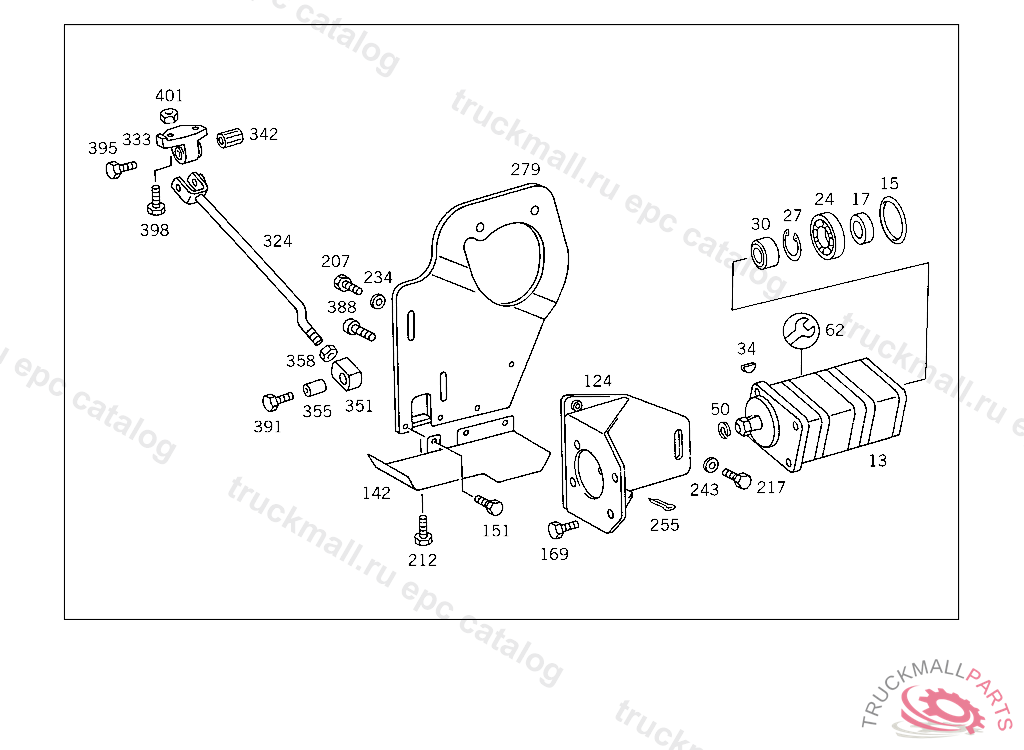

Поз.
Артикул
Описание
13
HYDRAULIC PUMPBOSCH
13
HYDRAULIC PUMP"BOSCH"
15
SEAL RINGBOSCH
17
SEAL RINGBOSCH
24
ANG. CONTACT BALL BEARING
24
ANGULAR CONTACT BEARING , Replaced By: N000628003304
27
SNAP RING HOUSING,INSIDE
30
SEAL RING , Replaced By: A0139979546
30
SEAL RING GASKET KIT, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
34
WOODRUFF KEY POWER STEERING PUMP
50
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
62
REPAIR KIT GASKET KIT
62
REPAIR KIT (GASKET KIT),HYDRAULIC PUMP
124
BRACKET (CONSOLE),HYDRAULIC PUMP
124
SLIDE
124
BRACKET (CONSOLE),HYDRAULIC PUMP
124
SLIDE (CONSOLE),HYDRAULIC PUMP
142
PROTECTIVE PLATE
151
SCREW , Replaced By: N304017008016
151
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
169
SCREW REAR BACKREST TO BACKREST ADJUSTER
169
SCREW SLIDING PLATE M8X1,5X35
207
SCREW STRUT TO CROSS MEMBER M 10X25
212
SCREW CONSOLE TO SUPPORT
217
SCREW BRACKET TO TRANSMISSION
217
SCREW , Replaced By: N308676012038
234
WASHER , Replaced By: N007349010007
234
WASHER STRUT TO CROSS MEMBER
243
WASHER BRACKET TO SIDE MEMBER
255
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
255
COTTER PIN LEVER TO ROD
279
BRACKET , Replaced By: A4221300235
279
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
324
STIFFENING
333
BEARING BRACKET
342
BUSHING
351
BEARING BODY BRACING TO SUPPORT
355
BUSHING
358
NUT
358
NUT
388
SCREW
391
SCREW BRACKET TO FRAME SIDE MEMBER
395
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
398
SCREW BRACKET TO CONSOLE
398
SCREW , Replaced By: N304017010043
401
NUT BRACKET TO SUPPORT AND TO END PIECE
999
WASHER CASE,REAR, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
HOUSING HYDRAULIC PUMP, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
ROLLER BEARING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SEAL RING , NOT USED
999
SPRING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
SPRING FOR VALVE DISC, UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
V-BELT , Replaced By: A0039976292
999
SEAL RING , UP TO CHASSIS 830523,FROM CHASSIS,SEE SA 16447
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
NUT ALTERNATOR
999
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
BEARING BRACKET , Replaced By: A4222300039
999
STIFFENING , Replaced By: A4032300194
999
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
999
STIFFENING , 229475
999
BRACKET , Replaced By: A4032300740
999
BRACKET , Replaced By: A4222300240
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4032300840
999
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
999
BRACKET , Replaced By: A4222300340
999
STIFFENING , 012318
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
BEARING BODY , Replaced By: A4222300008
999
BEARING BRACKET , Replaced By: A4222300139
999
PULLEY , 421-422188127 442-443012717, Replaced By: A4222360110, +001A4220350912, +001A0039974292
999
INTERMEDIATE PIECE FAN
999
PULLEY VIBRATION ABSORBER
999
NARROW V-BELT
