Поз.
Артикул
Описание

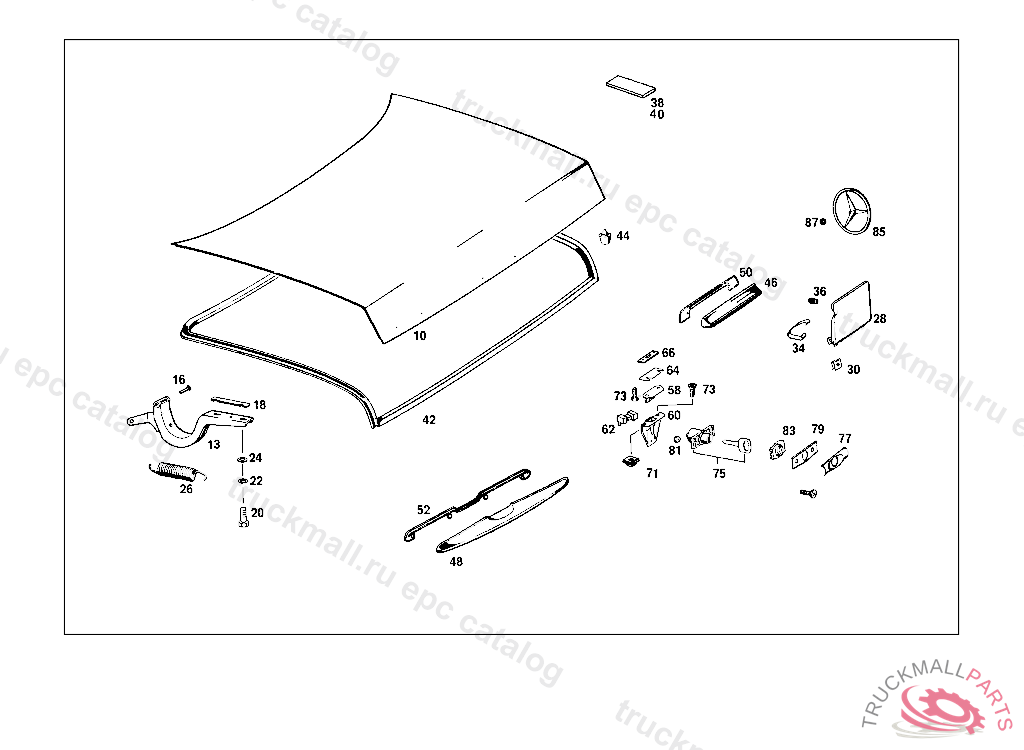

10
REAR LID , UP TO CHASSIS: 023,072,073 100000, Replaced By: A1157500775, +001A1077580202, +001A1077580205, +001A2018200801, +004N000137004101, +004N007985004149
13
HINGE LEFT
16
PIN
18
BASE PLATE
20
SCREW COVER PLATE TO BRACKET
22
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
24
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
26
SPRING
28
FLAP
30
LOCK GROMMET TO CAB,4 940046
34
SPRING
34
SPRING
36
RUBBER BUFFER
38
INTERMEDIATE LAYER11 MM, FROM CHASSIS: 010 002636 015 000135 048481
40
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
40
INTERMEDIATE LAYER , Replaced By: A1237580397
42
SEAL
44
RUBBER BUFFER
46
HANDLE
48
HANDLE , FROM CHASSIS: 023 100026 072 100209 073 100070
50
PAD
52
PAD , FROM CHASSIS: 023,072,073 100001
58
LOCK
60
LOCK
62
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
64
BASE PLATE
66
PLATE
71
NUT RETAINER ,123 415950
73
SCREW , Replaced By: N000000001146
73
SCREW CLAMP MOUNTING M 6X16
75
LOCK LESS KEY, STATE LOCK NUMBER WHEN ORDERING
77
LINING
79
PAD
81
NUT TWO-WAY VALVE TO BRACKET
83
FILLER
85
MERCEDES STAR
87
RUBBER RING
999
SCREW
999
NUT RETAINER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009909991
999
NUT , Replaced By: N913004005001
999
HANDLE , FROM CHASSIS: 015 200001 110 400001 115 200001 UP TO CHASSIS: 015 201804 017 000919 110 402151 115 201889 117,119 000487, Replaced By: A1077580202, +001A1077580205
999
PAD , FROM CHASSIS: 015 200001 110 400001 115 200001 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 015 201804 017 000919 110 402151 115 201889 117,119 000487, Replaced By: A1077580205
999
PLATE , Replaced By: A1167500011
999
BUFFER , Replaced By: A1169870539
999
FLAP , Replaced By: A1157500106
999
LOCK WORKSHOP VERSION, WITH KEY, USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM)
999
HINGE RIGHT
999
REAR LID , FROM CHASSIS: 073 100001
999
SPRING , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 015 249261 017 036714 110 438990 114 004885 115 263609 117,119 073788, Replaced By: A1237580336
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
NUT , Replaced By: N304032008006
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SCREW , Replaced By: N000000001933
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
NUT
