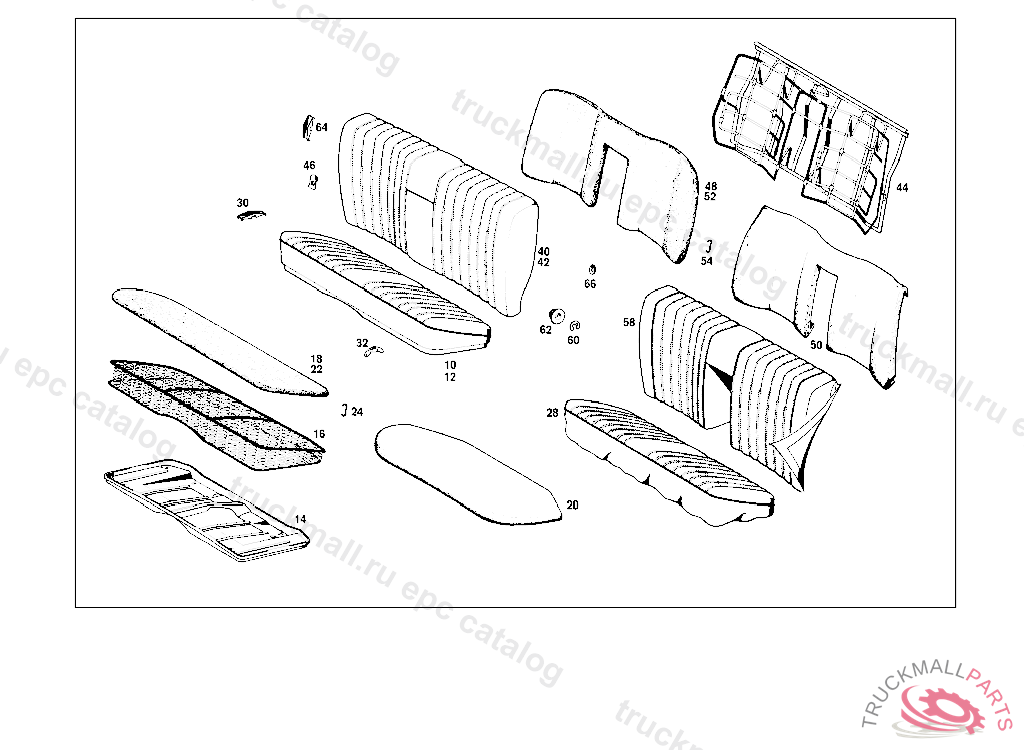

Поз.
Артикул
Описание
10
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING APPLICABLE TO MODELS 114.072,073 FROM CHASSIS: 114.023 008703, ALSO INSTALLED ON: 008681-008685,008687,008688,008691-008701.
14
CUSHION FRAME
16
SPRING CORE
18
PAD
22
PAD , Replaced By: A1159240114
22
PAD
24
CLIP COVER TO PAD
28
COVER , STATE COLOR NUMBER WHEN ORDERING APPLICABLE TO MODELS 114.072,073 FROM CHASSIS: 114.023 008703, ALSO INSTALLED ON: 008681-008685,008687,008688,008691-008701.
30
CLIP
32
NUT
40
BACKREST , STATE COLOR NUMBER WHEN ORDERING APPLICABLE TO MODELS 114.072,073 FROM CHASSIS: 114.023 008703, ALSO INSTALLED ON: 008681-008685,008687,008688,008691-008701.
44
BACKREST FRAME
46
LOCK
48
PAD
52
PAD
52
PAD , Replaced By: A1149240116
54
CLIP COVER TO PAD
58
COVER , STATE COLOR NUMBER WHEN ORDERING APPLICABLE TO MODELS 114.072,073 FROM CHASSIS: 114.023 008703, ALSO INSTALLED ON: 008681-008685,008687,008688,008691-008701.
60
LOCK PLATE CONTROL SHAFT TO CAB
62
SUPPORT
64
CLIP
66
WASHER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
999
SHEET METAL SCREW , Replaced By: A0009906836
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO AIR INTAKE PIPE
999
BACKREST LESS COVER
999
SEAT CUSHION LESS COVER
999
BACKREST , STATE COLOR NUMBER WHEN ORDERING INAPPLICABLE TO MODELS 114.072,073
999
COVER , STATE COLOR NUMBER WHEN ORDERING INAPPLICABLE TO MODELS 114.072,073
999
BACKREST CENTRAL FOLDING ARMREST, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 021,022 UNTIL PRODUCTION STOP 023 100397 072 102260 073 102845
999
COVER , STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 021,022 UNTIL PRODUCTION STOP 023 100397 072 102260 073 102845
999
COVER , STATE COLOR NUMBER WHEN ORDERING INAPPLICABLE TO MODELS 114.072,073
999
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING INAPPLICABLE TO MODELS 114.072,073
999
COVER , STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 021,022 UNTIL PRODUCTION STOP 023 100397 072 102260 073 102845
999
REAR SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 021,022 UNTIL PRODUCTION STOP 023 100397 072 102260 073 102845
