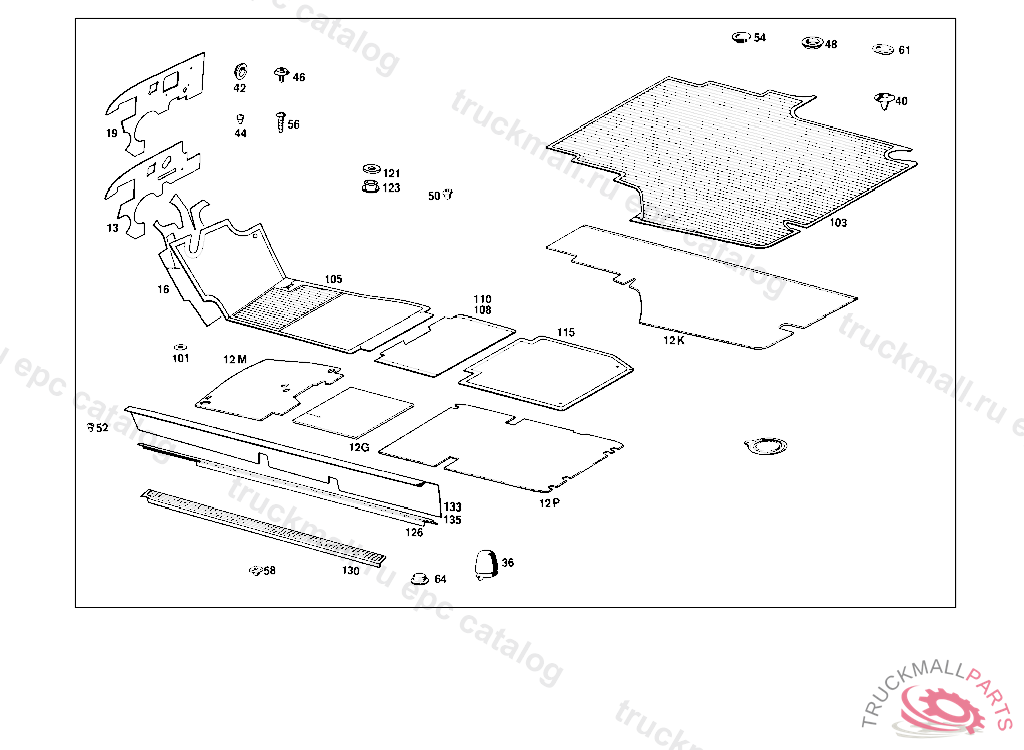

Поз.
Артикул
Описание
13
INSULATION LEFT IN FRONT END ENGINE COMPARTMENT,THICKNESS: 15MM
16
INSULATION LEFT 6.5 MM
36
COVERING , 015122
40
GROMMET WATER DRAIN IN SPARE WHEEL WELL
42
EXPANSION PLUG IN FRONT PANEL PILLAR,OUTSIDE, FOR SLIDING ROOF HOSE
44
PLUG , Replaced By: A0009871840
44
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
46
SCREW REAR PANEL,BELOW REAR SEAT
48
EXPANSION PLUG
50
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
50
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
52
PLUG , 051599
54
EXPANSION PLUG PAINT RUN-OFF IN FLOOR,LATERAL
56
PLUG
58
PLUG
61
EXPANSION PLUG REAR SIDE MEMBER
64
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
101
WASHER
101
WASHER , Replaced By: A3019900042
103
LINING , STATE COLOR NUMBER WHEN ORDERING
105
CARPET LEFT, STATE COLOR NUMBER WHEN ORDERING
108
CARPET LEFT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 073 002370
115
CARPET LEFT, STATE COLOR NUMBER WHEN ORDERING
121
WASHER
123
FASTENER BUTTON , Replaced By: A0009888481
123
FASTENER BUTTON
126
RAIL LEFT
130
LINING LEFT, STATE COLOR NUMBER WHEN ORDERING
133
LINING LEFT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 023 010133 072 005598 073 002370
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009833598
999
CARDBOARD3 MM, ORDER BY THE METER
999
FOAM PLASTICS FRONT ROOF RAIL
999
CARDBOARD FRONT ROOF RAIL 1 MM, ORDER BY THE METER
999
FELT , Replaced By: A0009830198
999
PLUG , Replaced By: A0009974886
999
CLIP , FROM CHASSIS: 010 000100 110 000057
999
SEALANT , Replaced By: A0019893320
999
LOCK , Replaced By: A1269941345
999
PLUG
999
SEALANT , 000,001,004,010 FROM CHASSIS 099715-130557,100,101,104,110 FROM CHASSIS 210864-225647
999
INSULATION , Replaced By: A0009830198
999
COVER , Replaced By: A1236830010
999
EXPANSION PLUG IN FLOOR,FRONT
999
ORNAMENTAL COVER , Replaced By: A1146800339
999
CARPET , Replaced By: A1146801745
999
COVER
999
LINING , Replaced By: A1156830151
999
GLOVE COMPARTMENT LID , Replaced By: A1146800798
999
CARPET REAR FLOOR,RIGHT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 114.010 033394 114.015 036937 115.010 037134 115.015 035746 115.110 084833 115.115 038561
999
CARPET RIGHT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 073 002370
999
CARPET RIGHT FRONT FLOOR, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 114.010 033394 114.015 036937 115.010 037134 115.015 035746 115.110 084833 115.115 038561
999
LINING , Replaced By: A1146800068
999
LINING , Replaced By: A1156830151
999
LINING RIGHT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS: 023 010133 072 005598 073 002370
999
CAP , Replaced By: A1146890330
999
CAP LEFT
999
ORNAMENTAL COVER , Replaced By: A1156803539
999
FASTENER WITH KEY, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
999
HOUSING
999
INSULATION BOW
999
INSULATION , Replaced By: A1156821704
999
INSULATION ENGINE COMPARTMENT,LEFT OUTSIDE, 000,001,004,010,UP TO CHASSIS 130557,100,101,104,110,UP TO CHASSIS 225647
999
INSULATION RIGHT
999
INSULATION , Replaced By: A1156822520
999
INSULATION RIGHT
999
LINING , Replaced By: A1156840205
999
RAIL RIGHT
999
LINING RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
COVERING , STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS: 010 000100 110 000057
999
PANELLING , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 000,002,010 100794 015 125795 100,102,103,110,112 261781 115 132552, Replaced By: A1156882306
999
PANELLING , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 000,002,010 100794 015 125795 100,102,103,110,112 261781 115 132552, Replaced By: A1156882406
999
PANELLING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 023 008681, Replaced By: A1156882306
999
PANELLING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 023 008681, Replaced By: A1156882406
999
PANELLING RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
PANELLING LEFT
999
PANELLING RIGHT
999
GLOVE COMPARTMENT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 000,002,010 037333 015 035914 100,102,103,110,112 084677 115 038666, Replaced By: A1156890291
999
STOP RIGHT, FROM CHASSIS: 000,002,010 000082 015 000039 100,102,103,110,112 000150 115 000043 FROM CHASSIS:115.005,017,105,107,108,117,119 000001
999
COVERING , Replaced By: A1159870444
999
WASHER , Replaced By: A1114620175
999
WASHER HOUSING TO STAY
999
COVER
999
SHEET METAL SCREW MODULE TO HOUSING
999
WASHER , Replaced By: N000125004319
999
WASHER , Replaced By: N000125004311
999
WASHER BRACKET TO SUPPORT
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SPRING WASHER , Replaced By: N000137008212
999
SCREW COVER PLATE TO BRACKET
999
SCREW INTERMEDIATE BEARING TO BRACKET M 8X20
999
SCREW , Replaced By: N304017008016
999
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
999
NUT , Replaced By: N304032008006
999
SCREW SLOTTED GATE
999
TOOTHED WASHER CABLE TO FUSE BOX
999
SHEET METAL SCREW INTERIOR LAMP B 3.5X13
999
SHEET METAL SCREW
999
SHEET METAL SCREW REFLECTOR TO BUMPER
999
SHEET METAL SCREW , FROM CHASSIS: 010 012069 110 026452
999
SHEET METAL SCREW CONSOLE TO TUNNEL PANELLING,FRONT
999
SHEET METAL SCREW , Replaced By: N007982004203
999
SHEET METAL SCREW
999
SHEET METAL SCREW , Replaced By: N007983004205
999
SHEET METAL SCREW LOADING FLOOR TO CROSS MEMBER,RIGHT
999
SHEET METAL SCREW , FROM CHASSIS: 010 000100 110 000057
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
WASHER , Replaced By: N009021004207
999
WASHER COVERING TO CYCLONE AIR TRAP
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT
999
DUO CLIP
999
DUO CLIP , Replaced By: N912010005001
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
999
NUT CONTROL UNIT TO BRACKET
999
COMBINATION BOLT , A 448772 F 035728 FOR THE NEW PART NO.,SEE STANDARD VERSION,GROUP 68
