Поз.
Артикул
Описание
1

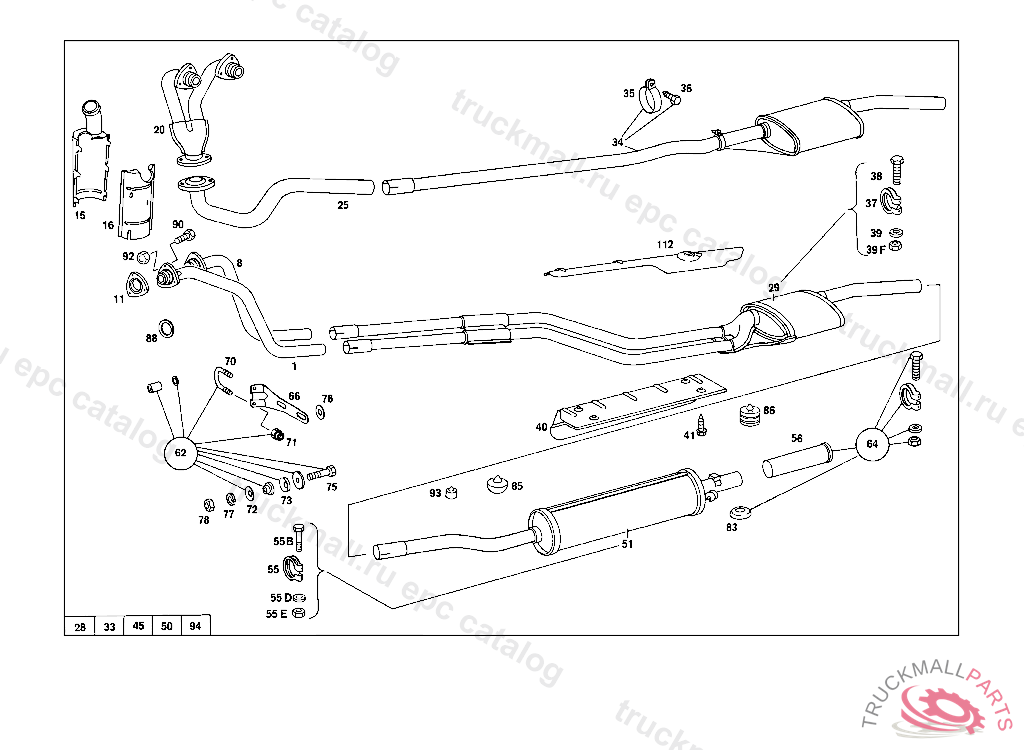

EXHAUST PIPE TO CYLINDERS NOS. 1-3, 002575
8
EXHAUST PIPE CYLINDERS NOS.4-6
11
FLANGE
15
AIR PRE-HEATER
16
JACKET
25
EXHAUST PIPE FRONT
28
EXHAUST MUFFLER WITH PIPE CENTRAL,CLAMP-ON VERSION
28
EXHAUST PIPE , Replaced By: A1144900115
29
EXHAUST MUFFLER WITH PIPE CENTRAL,CLAMP-ON VERSION
33
EXHAUST PIPE , Replaced By: A1154900115
33
EXHAUST MUFFLER WITH PIPE WELDED VERSION, FROM CHASSIS 015 200001 NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
34
EXHAUST MUFFLER WITH PIPE WELDED VERSION, FROM CHASSIS 015 200001 NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
35
CLAMP HEAT SHIELD MOUNTING, UP TO IDENT NO. 003 038514 EXCEPT FOR 038269,038362,038363.
36
SHEET METAL SCREW BRACKET TO WINDOW SILL
37
CLAMP , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
37
CLAMP , Replaced By: A0004900341
37
CLAMP , Replaced By: A1144900141
38
SCREW , Replaced By: N304017008043
38
SCREW VALVE TO BRACKET M 8X55
39
WASHER BRACKET TO CROSS MEMBER
40
PROTECTIVE PLATE
41
SCREW , Replaced By: N007976004217
45
EXHAUST PIPE WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
50
MUFFLER WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
51
EXHAUST MUFFLER WITH PIPE REAR,CLAMP-ON VERSION A1144913401
55
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
55
CLAMP , Replaced By: A1074900041
56
END PIECE
62
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION
64
REPAIR KIT FROM PLUG CONNECTION, ONLY APPLICABLE TO EXHAUST MUFFLER WITH PIPE CLAMP
64
REPAIR KIT , Replaced By: A1145860649
66
BRACKET , 114.011 014698 114.015 125698 114.023 009130 114.060 003009 114.062 003318 114.072 002880 114.073 000421
70
CLAMPING BRACKET EXHAUST PIPE TO BRACKET
71
NUT POWER CYLINDER TO BRACKET
71
NUT , Replaced By: A0009903250
72
DISC SPRING EXHAUST PIPE TO BRACKET
73
WASHER HIGH PRESSURE HOSE TO BRACKET
75
SCREW VALVE TO BRACKET
76
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
77
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
78
NUT
78
NUT , Replaced By: N304032008006
83
DAMPING PAD EXHAUST PIPE SUSPENSION
85
RUBBER BUFFER STOP ABOVE POSTERIOR MUFFLER TO BRACKET ON CROSS MEMBER
85
RUBBER BUFFER , Replaced By: A1079871140
85
RUBBER BUFFER , Replaced By: A1079870840
86
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
88
SEAL RING
90
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
90
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
92
NUT , Replaced By: A0009903250
92
NUT POWER CYLINDER TO BRACKET
93
RUBBER BUFFER STOP BUFFER BETWEEN TRANSMISSION AND TUNNEL,193 004315 UP TO END OF MODEL YEAR '81
112
PROTECTIVE PLATE , UP TO CHASSIS: 073 001470
999
WASHER
999
CLAMP , Replaced By: A1074900041
999
EXHAUST PIPE FRONT, 007104
999
MUFFLER WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
999
BRACKET
999
RUBBER BUFFER
999
END PIECE
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SCREW , Replaced By: N304017008043
999
SCREW , Replaced By: N304017006034
999
SCREW FITTING TO TRANSMISSION M8X32
999
NUT
999
SHEET METAL SCREW VALVE TO WINDOW SILL
999
SHEET METAL SCREW BRACKET TO CAB
999
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
LOCK WASHER T-FITTING TO BRACKET
999
NUT , Replaced By: A0009903250
