Mercedes A4514700194 - Насосный блок

FORTWO CABRIO CDI 451.401

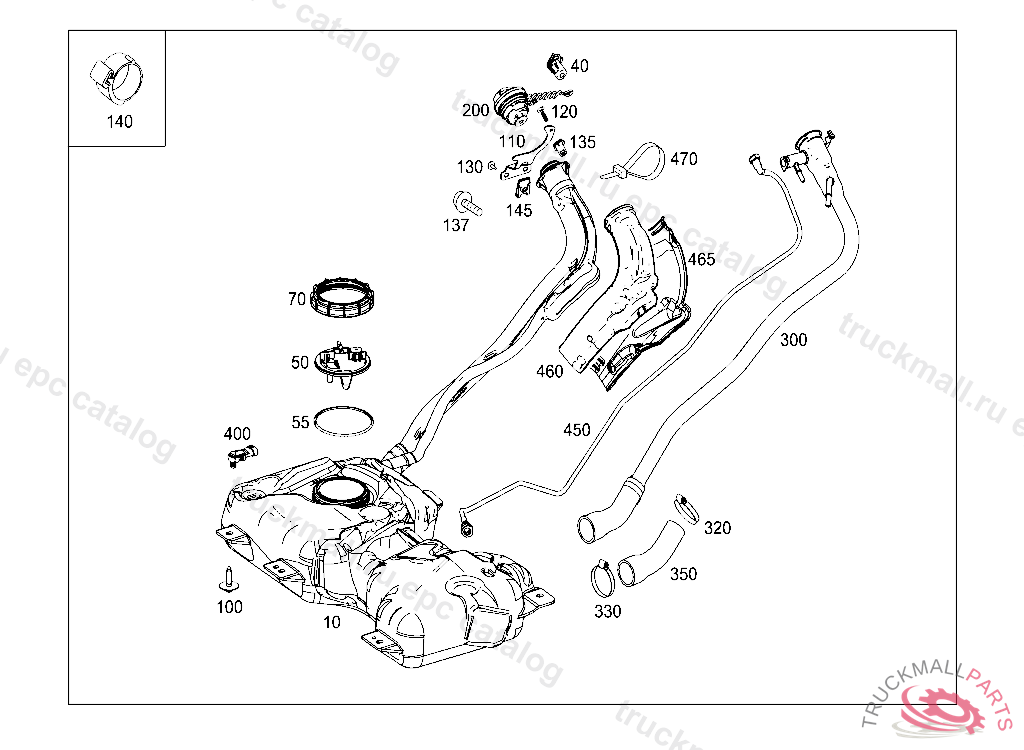

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
10
A4514710401
FUEL TANK
10
A4514710101
FUEL TANK , Replaced By: A4514710401
50
A4514700194
DELIVERY UNIT FUEL
55
A4504780012
O-RING
70
A4514710072
NUT DELIVERY UNIT TO RESERVOIR
100
A0009908103
BOLT TANK TO SUBSTRUCTURE
110
A4514750017
MOUNTING ANGLE MOUNT FILLER NECK
120
A0019900410
BOLT
130
A0009903111
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M5 X 14
135
A4504750085
MOUNTING PLATE MOUNT FILLER NECK
137
A0059907312
BOLT MOUNT FILLER NECK, K 56193820120112
137
A0009917032
BLIND RIVET MOUNT FILLER NECK, K 56193920120112
140
A0069971890
HOSE CLAMP HOSE ATTACHMENT
145
A0039948545
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
200
A4514700105
FUEL FILLER CAP FUEL TANK
450
A4514760401
LINE TANK BREATHING
