Mercedes Q0012954V001000000 - САЙЛЕНТ-БЛОК

SMART ROADSTER-COUPE 452.334

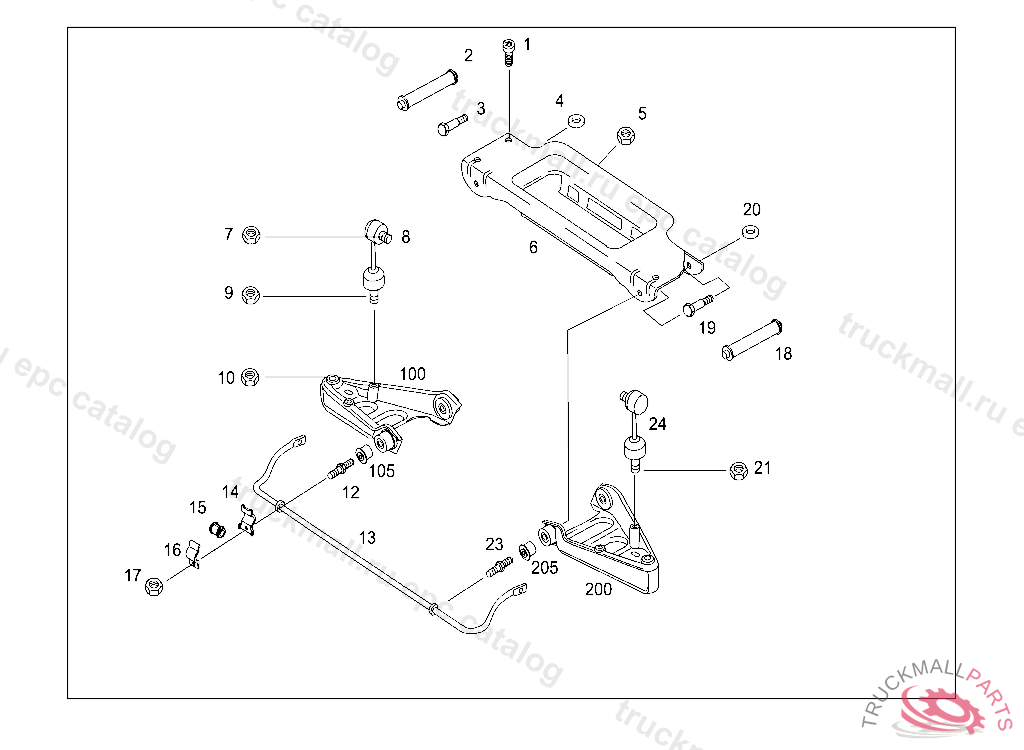

33 FRONT AXLE - 225 TRANSVERSE CONTROL ARM,TOROSION BAR AND FRONT SUBFRAME

Поз.
Артикул
Описание
1
Q0008669V003000000
SPECIAL SCREW WITH SHANK
1
A0009907903
BOLT
2
Q0011423V004000000
INSERTION ROD , L 00000120020830
3
Q0012670V002000000
SPECIAL SCREW WITH SHANK
4
Q0010396V002000000
CUP DISC
5
Q0013003V001000000
PRESS-IN NUT
6
Q0009978V004000000
CROSSMEMBER (WITH PRESS-I , Replaced By: Q0009978V005000000
6
Q0009978V005000000
CROSSMEMBER (WITH PRESS-I
7
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
8
Q0005102V005000000
STABILISER HANGER
9
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
10
Q0006662V000000000
NUT M12 X 1.5 -8 AT JOINT FLANGE
12
Q0004173V003000000
SPECIAL SCREW WITH SHANK
13
Q0009977V003000000
STABILISER FRONT AXLE 18
14
Q0004170V003000000
CLIP REAR
15
Q0012954V001000000
RUBBER MOUNT
16
Q0005105V004000000
CLIP FRONT
17
Q0002301V000000000
NUT MB STANDARD 13023 M12 , Replaced By: N913023012002
17
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
18
Q0011423V004000000
INSERTION ROD , L 00000120020830
19
Q0012670V002000000
SPECIAL SCREW WITH SHANK
20
Q0010396V002000000
CUP DISC
21
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
23
Q0004173V003000000
SPECIAL SCREW WITH SHANK
24
Q0005102V005000000
STABILISER HANGER
100
Q0014141V002000000
WISHBONE COMPLETE LEFT, H 30002120010108
105
A4503330014
WISHBONE BUSHING RIGHT
200
Q0014141V002000000
WISHBONE COMPLETE LEFT, H 30002120010108
205
A4503330014
WISHBONE BUSHING RIGHT
