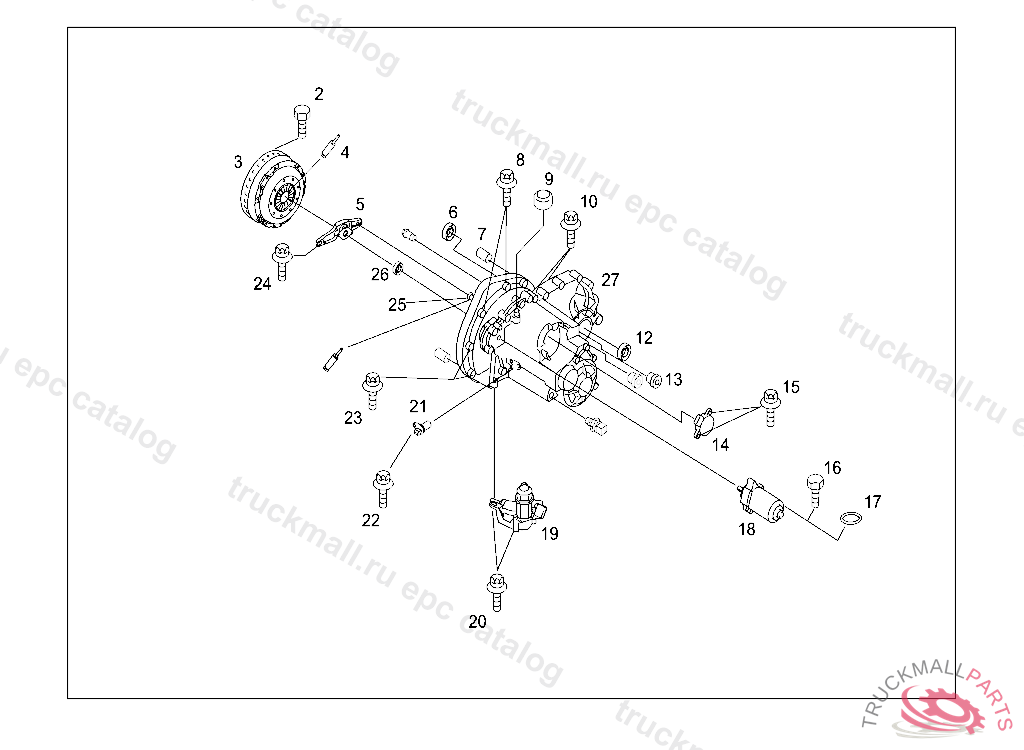

SMART ROADSTER-COUPE - 452.334 - 26 GEARSHIFT MECHANISM
Поз.
Артикул
Описание
2
BOLTM10 X 18 - 8.8
3
MODULE CLUTCH
4
GREASE GEARSHAFT
5
RELEASE SYSTEM
6
ROTARY SHAFT SEAL
7
CENTERING SLEEVE
8
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
9
BREATHER CAP
10
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
12
ROTARY SHAFT SEAL
13
SCREW PLUG M18 X 1.5
14
ANGLE SENSOR
15
SCREW MALE BIHEX M14 X 1.
16
TORX SCREW M6 X 20 - 8.8M6 X 35
17
O-RING 55 X 2
18
ELECTRIC MOTOR
19
CLUTCH ACTUATOR
20
BOLT
21
SPEED SENSOR 37/45 KW
22
SCREW MALE BIHEX M14 X 1.
23
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
24
SCREW MALE BIHEX M14 X 1.
25
MUSHROOM-SHAPED BUTTON
26
ROTARY SHAFT SEAL
27
TRANSMISSION MCT 1 45 KW
