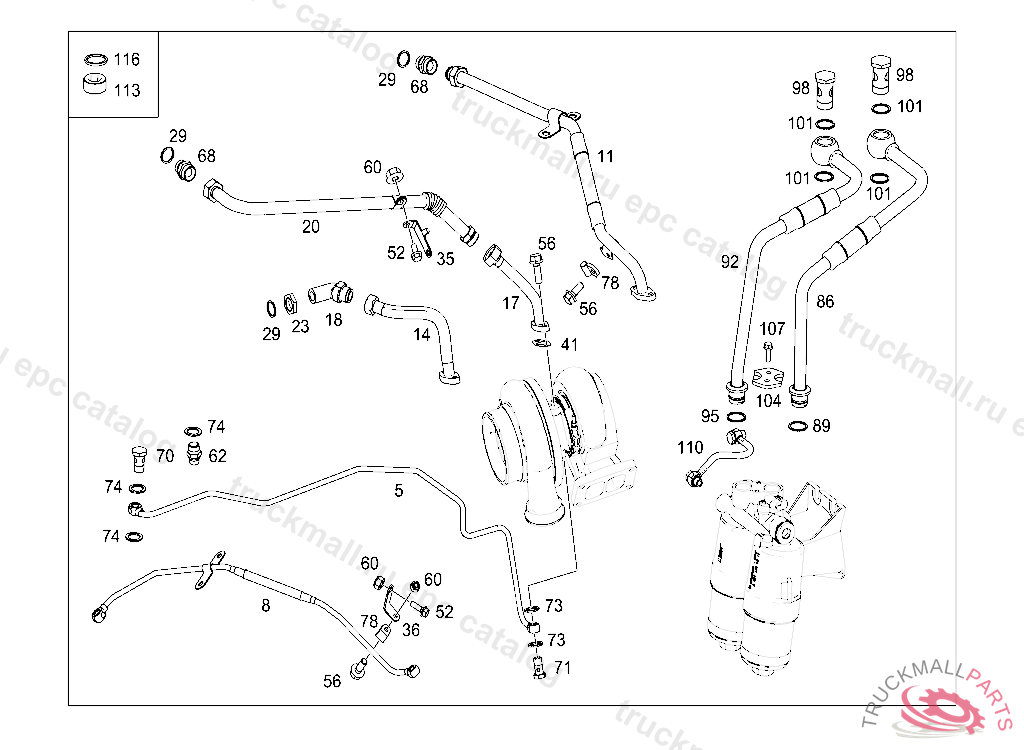

Поз.
Артикул
Описание
8
OIL PRESSURE LINE TURBOCHARGER OIL FEED
8
OIL LINE TURBOCHARGER OIL FEED, EXHAUST STOCK OF OLD PARTS UP TO ENGINE 174101, Replaced By: A4571803820, +002N000000001070, +001N000000004751
11
OIL LINE (OIL RETURN PIPE), AFTER REPAIR, CHANGE DATA CARD. DELETE SAA 522052/09, REENTER SAA 522052/22, Replaced By: A4571802422, +001A4570901041, +002A0169901001, +002A0009902852, +001N915023022000
11
OIL RETURN LINE (OIL RETURN PIPE)
29
SEAL RING
36
BRACKET OIL DELIVERY LINE TO EXHAUST MANIFOLD
41
GASKET OIL RETURN LINE TO TURBOCHARGER
52
SCREW OIL DELIVERY LINE TO EXHAUST MANIFOLD M10X30
56
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M8X20
60
HEXAGON NUT POWER CYLINDER TO BRACKET, RECOMMENDED FOR TAKING ON STOCK
60
HEXAGON NUT OIL DELIVERY LINE TO EXHAUST MANIFOLD
62
FITTING COOLING WATER LINE TO TURBOCHARGER
68
FITTING OIL RETURN LINE TO CYLINDER CRANKCASE
68
FITTING OIL RETURN LINE TO CYLINDER CRANKCASE
70
HOLLOW SCREW OIL LINE
71
HOLLOW SCREW FUEL LINE TO FEED PUMP
73
SEALING RING
74
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
78
CLAMP DE-AERATION LINE TO CHARGING AIR TRANSVERSE PIPE
86
OIL LINE FEED TO FILTER
89
SEAL RING
92
OIL LINE RETURN TO OIL FILTER
95
SEAL RING
98
HOLLOW SCREW RADIATOR
101
SEALING RING ,760252
104
THRUST PIECE OIL LINE TO OIL COOLER
107
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
110
OIL LINE DRAINAGE OF OIL FILTER
113
SCREW PLUG TO PLUG CORE HOLES, AS REQUIRED M 26X1.5
116
SEAL RING
