Поз.
Артикул
Описание

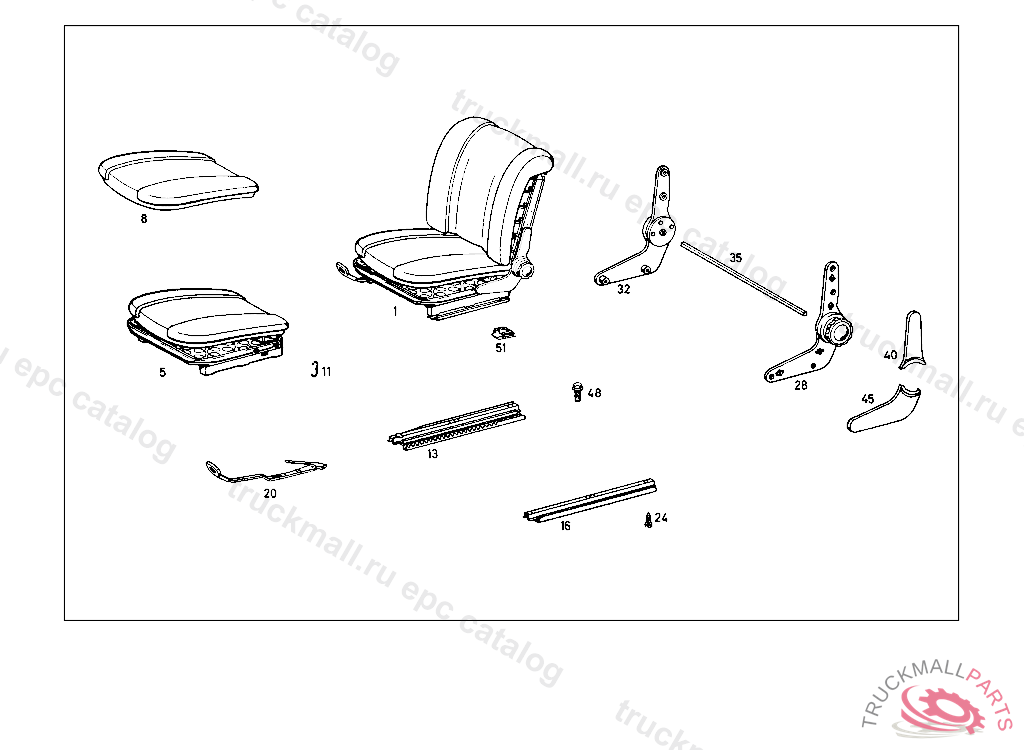

1
FRONT SEAT LEFT
5
SEAT CUSHION LESS COVER
8
PAD
11
CLIP COVER TO PAD
13
SEAT GUIDE INSIDE LEFT
16
SEAT GUIDE
20
ADJUSTER LEFT, FROM CHASSIS: 010 004096 015 001848 110,112 010414 115 004254
24
SCREW
24
COMBINATION BOLT , Replaced By: A0049901601
28
BACKREST ADJUSTER OUTSIDE LEFT LEFT SEAT, 023827
32
BACKREST ADJUSTER INSIDE LEFT, RIGHT SEAT, 023827
35
LINK , 023827
40
COVERING , Replaced By: A1159132728
45
COVERING LOWER PART, LEFT, STATE COLOR NUMBER WHEN ORDERING 028495
48
SCREW
48
SCREW , Replaced By: A1409901122
48
SCREW , Replaced By: A0009909622
48
SCREW , Replaced By: A1249900222
48
SCREW , Replaced By: A0009909822
51
NUT RETAINER , Replaced By: A0019902891
51
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
999
COVERING RIGHT
999
COVERING RIGHT
999
COVERING UPPER PART, LEFT, STATE COLOR NUMBER WHEN ORDERING 028495
999
COVERING , Replaced By: A1159132828
999
COVERING , Replaced By: A1159133028
999
COVERING , Replaced By: A1159132928
999
FRONT SEAT RIGHT
999
BACKREST FRAME
999
BACKREST
999
SEAT GUIDE INSIDE RIGHT
999
ADJUSTER RIGHT
999
SCREW , Replaced By: A1239901022
999
SCREW , 023826
999
SCREW
999
SCREW
999
SCREW
999
BACKREST ADJUSTER INSIDE RIGHT
999
BACKREST ADJUSTER OUTSIDE RIGHT
