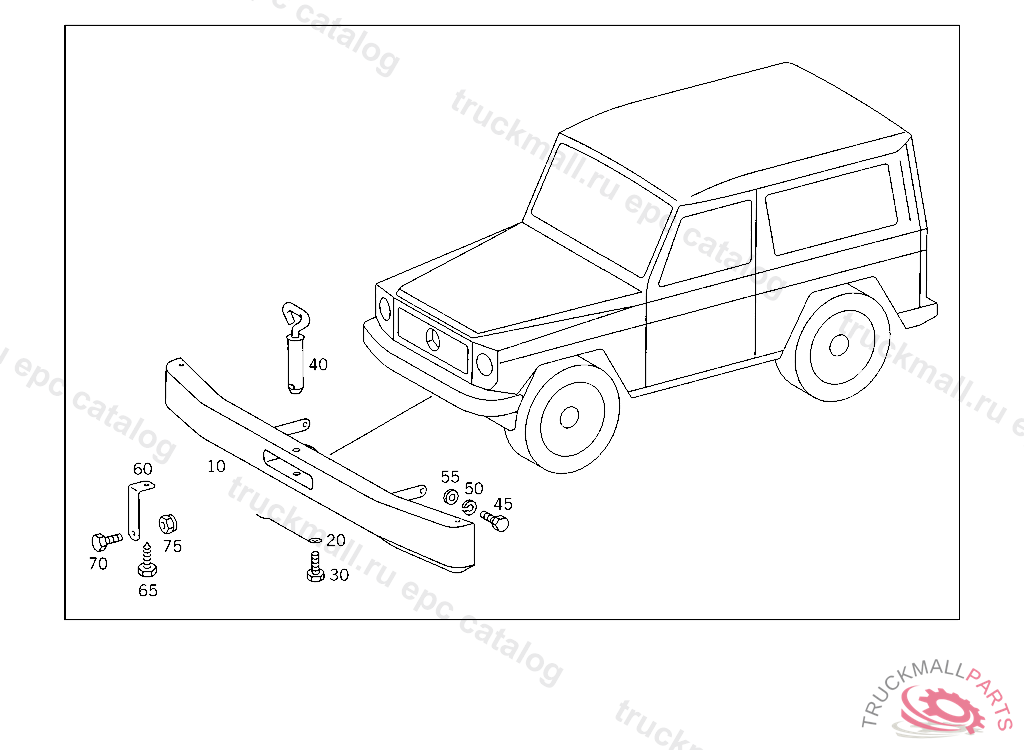

Поз.
Артикул
Описание
10
BUMPER
10
BUMPER FRONT
10
BUMPER FRONT
20
LOCK COUPLING PIN
30
SCREW CASE COVER M 8X20 MM
30
SCREW , Replaced By: N910107008000
30
SCREW , Replaced By: N000000001559
40
PIN
45
SCREW , Replaced By: N308676014020
45
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
55
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
55
WASHER , Replaced By: N000125015019
60
BRACKET
65
SHEET METAL SCREW
70
SCREW
75
NUT ATTACHMENT, MARKER LIGHT
75
NUT , Replaced By: N913002004001
999
PROTECTION CAP
999
NUT
999
SCREW PIPE CLAMP
999
NUT , Replaced By: N304032008006
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008028
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER BRACKET TO AIR INTAKE SCOOP
999
BRACKET
999
PIN , Replaced By: A4605250274
999
BUMPER FRONT
999
BRACKET
999
CLAMP
999
PIN , Replaced By: A4605250274
999
BUMPER LESS FRONT COUPLING MOUTH
999
BUMPER , Replaced By: A4605200670
999
BUMPER , Replaced By: A4605200370
