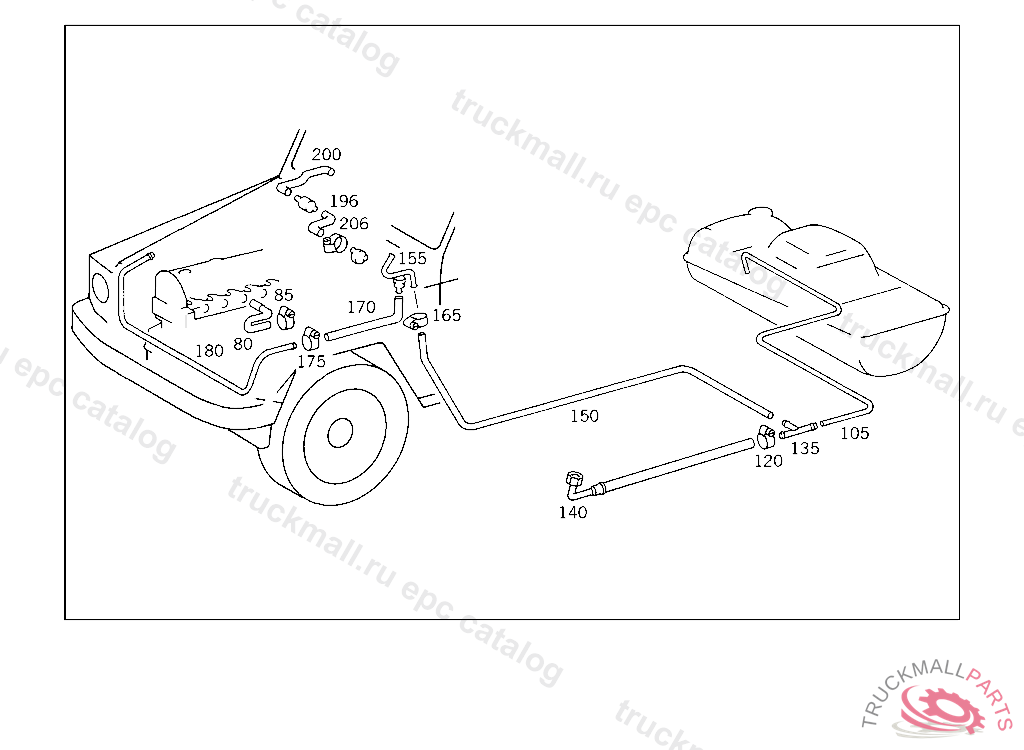

Поз.
Артикул
Описание
80
HOSE FEED LINE
85
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
85
CLAMP , Replaced By: N000000000667
105
HOSE FROM FUEL TANK SUCTION LINE TO T-FITTING, ORDER BY THE METER 055844 903748
120
CLAMP LINE CONNECTION
120
HOSE CLAMP HOSE FASTENING 9/13MM
120
CLAMP LINE CONNECTION
135
T-FITTING
140
FUEL HOSE FROM ENGINE TO RETURN LINE
140
FUEL HOSE FROM ENGINE TO RETURN LINE, 055844 903748
150
LINE FROM FEED PUMP TO FUEL FILTER
150
HOSE FROM T-FITTING TO HEATING SUCTION LINE, 055844 903748
150
HOSE LEAK LINE, ORDER BY THE METER
150
HOSE , Replaced By: A4604761026
155
DISTRIBUTOR
165
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
165
CLAMP LINE MOUNTING
165
CLAMP , Replaced By: N000000000667
165
CLAMP , Replaced By: N000000000665
165
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
165
CLAMP CHECK VALVE,K 169122
165
CLAMP LINE CONNECTION
170
HOSE , ORDER BY THE METER
170
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004763726
170
HOSE , Replaced By: A1074763726
170
HOSE , Replaced By: A1074763126
175
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
175
CLAMP , Replaced By: N000000000665
180
INTAKE PIPE AUXILIARY HEATER, 055844 903748
180
INTAKE PIPE FROM PUMP TO HEATER UNIT
196
HOSE FROM VALVE TO PUMP
200
HOSE FROM PUMP TO HEAT EXCHANGER
206
CLAMP , Replaced By: N000000000667
206
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
999
NUT BALL PIVOT TO LEVER
999
HOSE FROM ENGINE TO CONTROL VALVE
999
HOSE FROM VALVE TO FEED LINE, NOT USED
999
HOSE AT ENGINE
999
HOSE
999
HOSE HEAT EXCHANGER
999
HOSE
999
HOSE
999
HOSE
999
HOSE FROM ENGINE TO CONTROL VALVE
999
PIPE LINE FEED
999
PIPE LINE
999
PIPE LINE
999
WIRE CABLE
999
BRACKET
999
BRACKET
999
FUEL HOSE
999
FUEL HOSE
999
PLUG TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
999
CLAMP , Replaced By: A0009956544
999
CONNECTOR DISTRIBUTOR CONNECTION
