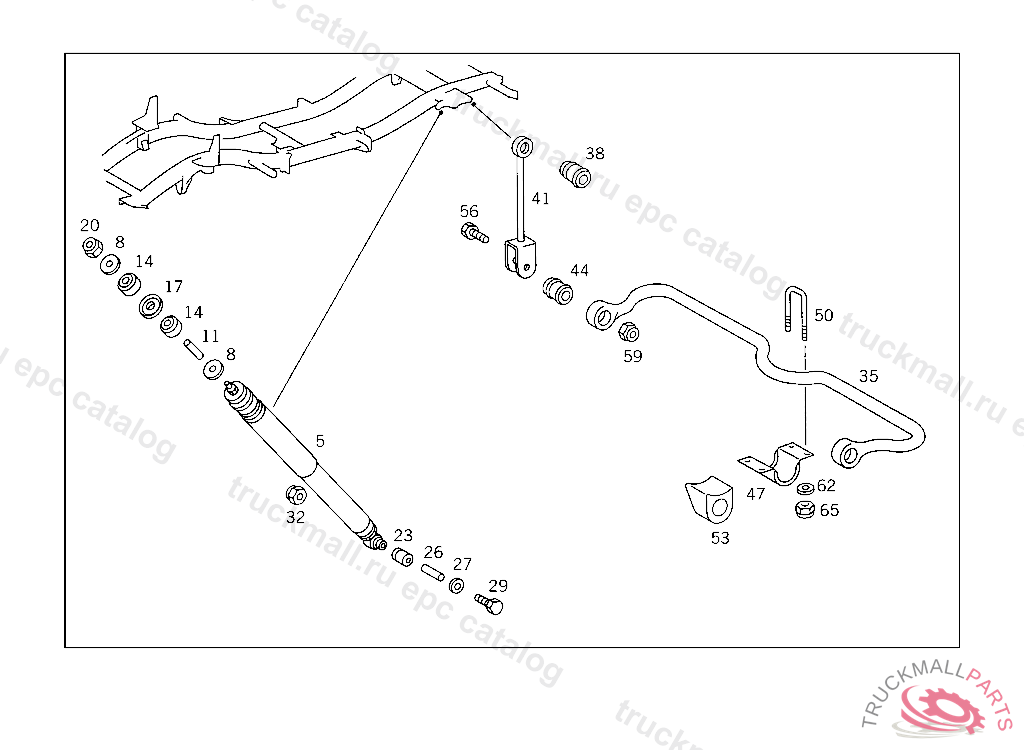

250 GD - 460.337 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
SHOCK ABSORBER
11
BUSHINGTO 003 326 13 00
14
RUBBER BUFFER
14
RUBBER MOUNTINGTO 003 326 10 00
14
GUMMIHULSE. RUBBER MOUNTING TOP AND BOTTOM, Replaced By: A0003238685
17
RETAINERTO 004 326 04 00
26
BUSHING BOTTOM TO 003 326 03 00,003 326 13 00
29
SCREW , Replaced By: N000960016250
29
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
32
NUT BEARING BRACKET TO SIDE MEMBER
