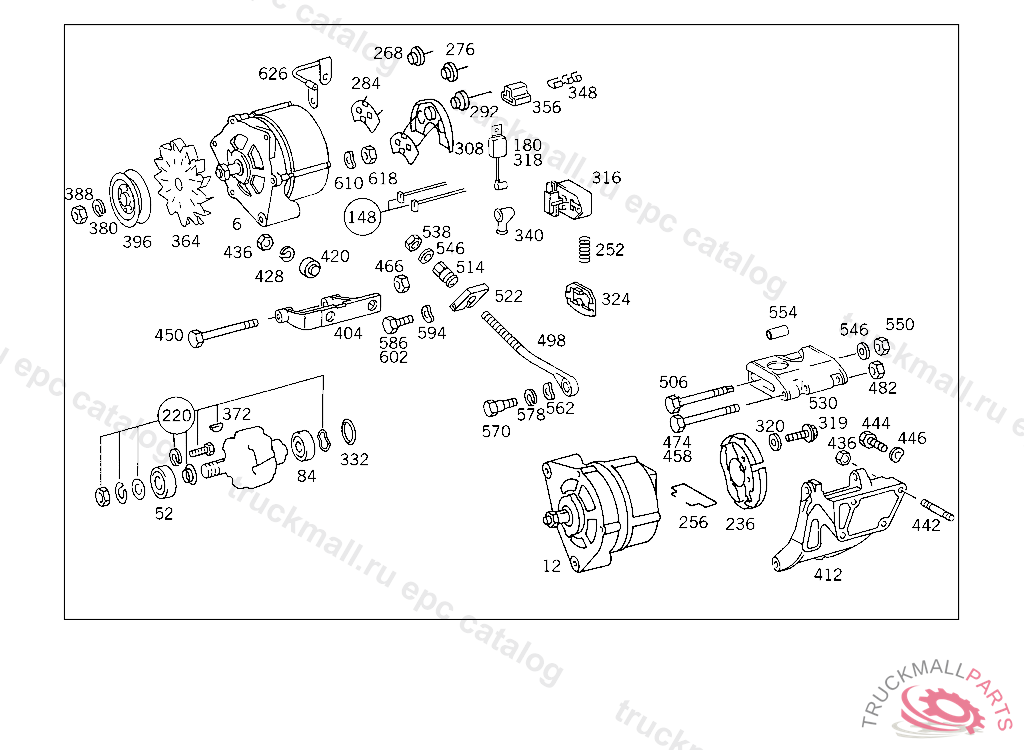

Поз.
Артикул
Описание
6
ALTERNATOR
6
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
ALTERNATOR , Replaced By: A0051543302
6
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
6
ALTERNATOR
6
ALTERNATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0041542602
6
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0081543202
12
ALTERNATOR THREE-PHASE
12
ALTERNATOR28A, TO BE USED AS A RECONDITIONED PART ONLY
12
ALTERNATOR , LESS INDIVIDUAL PARTS
12
ALTERNATOR12 V 35 A
12
ALTERNATOR , Replaced By: A0031546702
12
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0071544502
12
ALTERNATOR , LESS INDIVIDUAL PARTS PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0041541802
12
ALTERNATOR , EXHAUST STOCK OF OLD PARTS UP TO ENGINE: 616.910 10/50,20/60 041194 616.910 12/52,22/62 000368 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0051547402
12
ALTERNATORBOSCH, 55 A, 931 10/50,20/60 002073 931 12/52,22/62 000003 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
52
GROOVED BALL BEARING , Replaced By: N000625436303
52
BALL BEARING , Replaced By: N000625900182
52
BALL BEARINGTO 005 154 34 02
52
GROOVED BALL BEARING
52
GROOVED BALL BEARING , TO 002 154 38 02 TO 003 154 67 02 TO 002 154 46 02 TO 004 154 46 02
84
GROOVED BALL BEARING
84
GROOVED BALL BEARING
84
BALL BEARINGTO 005 154 34 02
84
GROOVED BALL BEARING SLIP RING SIDE
84
GROOVED BALL BEARING SLIP RING SIDE TO 003 154 67 02,006 154 29 02
148
CARBON BRUSH SET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001546314
148
CARBON BRUSH SETTO 007 154 27 02
148
CARBON BRUSH SETTO 005 154 34 02
148
CARBON BRUSH SET , Replaced By: A0001545514
148
CARBON BRUSH SET
180
CONDENSER
180
CONDENSER
180
CONDENSER ,061991
180
CONDENSER THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION
220
REPAIR KIT , Replaced By: A0001500372
220
REPAIR KIT
220
REPAIR KIT ROTOR TO 005 154 52 02
220
REPAIR KIT
236
RECTIFIER
236
RECTIFIERTO 006 154 80 02
236
RECTIFIER
236
RECTIFIERTO 005 154 51 02
236
RECTIFIER , Replaced By: A0001544616
236
RECTIFIER , Replaced By: A0001546216
236
RECTIFIER , Replaced By: A0001543116
236
RECTIFIER , Replaced By: A0001545716
236
RECTIFIERTO 006 154 89 02, 007 154 61 02
236
RECTIFIERTO 005 154 83 02,006 154 67 02
252
SPRING
252
SPRINGTO 007 154 58 02
252
SPRING
256
SPRINGTO 007 154 58 02
268
DIODE POS.
268
DIODE EXCITER TO 003 154 33 02
268
DIODE NEG.
268
DIODE , Replaced By: A0015481018
268
DIODE , Replaced By: A0005485018
276
DIODE , Replaced By: A0015481118
276
DIODE , Replaced By: A0005489818
276
DIODE , Replaced By: A0005487918
276
DIODE POS.
276
DIODE
276
DIODE NEG.
276
DIODE
284
DIODE CARRIER COMPLETE
292
DIODE
292
DIODE , Replaced By: A0015481518
292
DIODE , Replaced By: A0015480018
308
RECTIFIER , Replaced By: A0011542516
308
RECTIFIERTO 003 154 67 02,006 154 29 02
308
RECTIFIER
316
REGULATOR AND CUT-OUTTO 007 154 60 02, 008 154 26 02
316
REGULATOR AND CUT-OUT (ELECTRONIC FIELD REGULATOR) TO 005 154 32 02
316
REGULATOR AND CUT-OUT TRANSISTOR,4 483482
316
REGULATOR AND CUT-OUTTO 005 154 32 06
316
REGULATORTO 007 154 26 02
316
REGULATORTO 007 154 27 02
316
REGULATOR AND CUT-OUT , Replaced By: A0001541705
316
REGULATOR AND CUT-OUT , Replaced By: A0021547206
316
REGULATOR AND CUT-OUT , Replaced By: A0021545106
316
REGULATOR AND CUT-OUT , Replaced By: A0001541805
316
REGULATOR AND CUT-OUT , Replaced By: A0001541805
316
REGULATOR AND CUT-OUT , Replaced By: A0021545806
318
CONDENSER
319
SCREW T-FITTING TO BRACKET M4X25
319
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
319
SCREW , Replaced By: N007985004130
320
SEAL RINGTO 005 154 34 02
324
GASKET
332
SEAL RINGTO 005 154 34 02
340
BOOT HEATER PLUGS
340
BOOT , Replaced By: A0005463335
340
BOOTTO 003 154 39 02
348
PLUG SOCKET , Replaced By: A0005453726
348
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
356
PIN BUSHING HOUSING 3-POLE,4 483482
364
FAN ALTERNATOR
364
FAN , Replaced By: A0001556618
364
FAN
372
WOODRUFF KEY POWER STEERING PUMP
372
WOODRUFF KEY
380
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
388
NUT RELEASE BEARING LUBRICATION
388
NUT , Replaced By: N308675014002
388
NUT , Replaced By: N308675014000
388
NUT
396
PULLEY
396
PULLEY
396
PULLEY
396
PULLEY
396
PULLEY
404
SUPPORT
404
SUPPORT ALTERNATOR
404
SUPPORT ALTERNATOR
412
SUPPORT ALTERNATOR
412
SUPPORT ALTERNATOR
420
BUSHING BRACKET TO SUPPORT
428
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
436
NUT
436
NUT , Replaced By: N304032010002
436
NUT BRACKET TO SUPPORT AND TO END PIECE
442
STUD BOLT CONTROL BLOCK M 10X35
442
STUD BOLTM 10X45
442
STUD BOLT INTAKE AND EXHAUST MANIFOLDS TO CYLINDER HEAD
444
SCREW STRUT TO CROSS MEMBER M 10X25
444
SCREW , Replaced By: N304017010040
446
SPRING WASHER STEERING COLUMN BRACKET TO CAB
450
SCREW , Replaced By: A0069909101
458
SCREW FROM COUPLING PIECE TO DISTRIBUTOR AT CROSS MEMBER, NOT USED
458
SCREW , Replaced By: N304014010005
458
SCREW BRACKET TO REAR AXLE
466
NUT
474
SCREW ALTERNATOR TO SUPPORT
482
NUT BRACKET TO SUPPORT AND TO END PIECE
498
SCREW (CLAMPING BOLT)
498
SCREW
498
SCREW , Replaced By: A1211552023
506
CLAMPING BOLT ALTERNATOR READJUSTMENT
506
CLAMPING BOLT ALTERNATOR READJUSTMENT
514
NUT CLAMPING BOLT TO ALTERNATOR
522
CLAMPING PIECE CLAMPING BOLT TO ALTERNATOR
530
BRACKET , Replaced By: A6171500873
530
BRACKET ALTERNATOR READJUSTMENT
530
BRACKET ALTERNATOR READJUSTMENT
538
NUT , Replaced By: A6171550272
538
NUT FROM CLUTCH PEDAL TO MASTER CYLINDER
538
NUT , 912 10/50,20/60 073576 912 12/52,22/62 067786 919 000145
546
WASHER RADIATOR TO RUBBER MOUNTING
546
WASHER , Replaced By: N009021010209
546
WASHER BRACKET TO COVERING
550
NUT BRACKET TO SUPPORT AND TO END PIECE
550
NUT , Replaced By: N304032010002
550
NUT
554
SPACER TUBE , 912 10/50,20/60 073576 912 12/52,22/62 067786 919 000145
554
SPACER TUBE GROUND CABLE TO ALTERNATOR
562
SPRING WASHER STEERING COLUMN BRACKET TO CAB
570
SCREW CLAMPING BOLT TO BRACKET
578
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
586
SCREW FITTING TO TRANSMISSION M8X32
594
SPRING WASHER , Replaced By: N000137008212
594
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
602
SCREWM 8X40
610
SPRING WASHER HEATER PLUG CABLE HARNESS
618
NUT TACHOGRAPH TO BRACKET
626
GROUND CABLE FROM ALTERNATOR TO GROUND
999
NUT BALL PIVOT TO LEVER
999
SPRING WASHER ALTERNATOR CONNECTION W
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
GROUND CABLE , Replaced By: A6211500332
999
NUT , Replaced By: A6171550172
999
ALTERNATOR WITH PULLEY AND FAN 28 V 27 A
999
ALTERNATOR12 V 55 A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
ALTERNATOR , Replaced By: A0071547002
999
PLUG , Replaced By: A0015457726
999
REGULATOR AND CUT-OUT , Replaced By: A0021545106
999
REGULATOR AND CUT-OUT , Replaced By: A0021541806
999
SCREW , Replaced By: A0009908621
999
SCREW
999
SCREW , Replaced By: A0019901221
999
BOOT , Replaced By: A0005463335
999
FANTO 007 154 60 02
999
FAN
999
PULLEY
999
FAN , Replaced By: A0001556318
999
PULLEY , Replaced By: A0001557315
999
PULLEY , Replaced By: A0001557115
999
FAN. PULLEY , Replaced By: A0001552815
999
FAN , Replaced By: A0001555618
999
PULLEY , Replaced By: A0001554415
999
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
999
RECTIFIERTO 005 154 52 02
999
CARBON BRUSH SET , Replaced By: A0001545514
999
CARBON BRUSH SET
999
SPRING , Replaced By: A0001541193
999
SPRINGTO 004 154 75 02
999
SPRING , Replaced By: A0001541393
999
RECTIFIER
