Mercedes A4614270174 - Болт

G 270 CDI 461.345 TO CHASSIS 144790

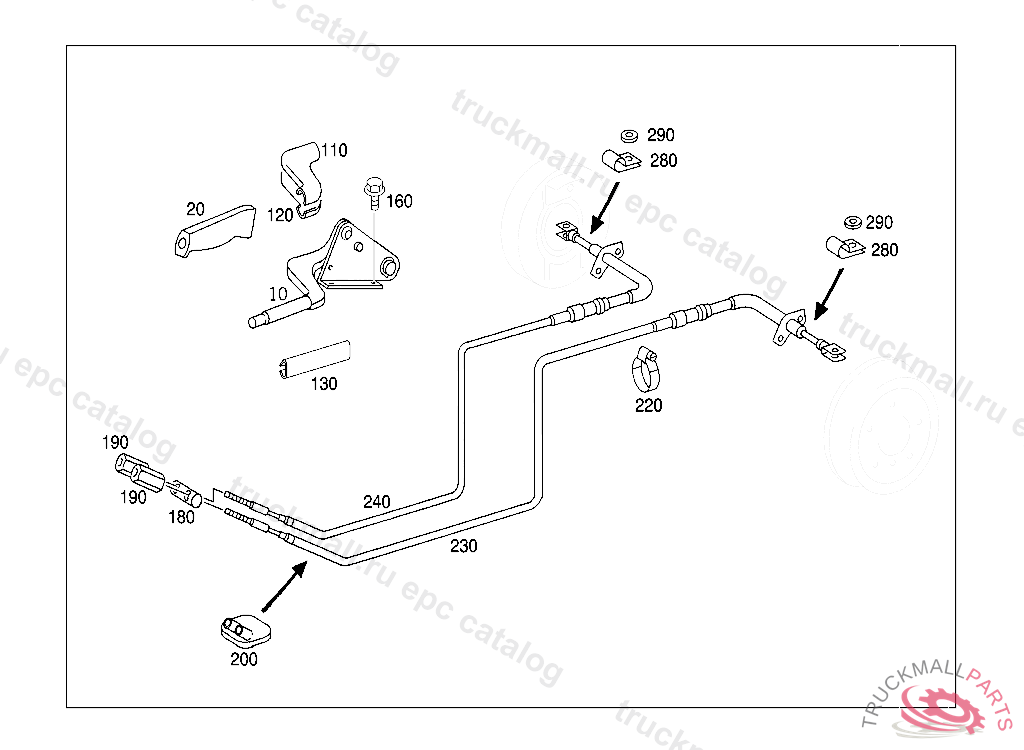

42 BRAKES - 120 PARKING BRAKE

Поз.
Артикул
Описание
10
A4634200784
PARKING BRAKE
20
A4634270220
HANDLE
110
A4634270434
COVERING UPPER PART
120
A4634270534
COVERING LOWER PART
130
A4619870830
WELT TO PARKING BRAKE 200 MM
160
N910106006004
HEXAGON HEAD BOLT
180
A4614270174
PIN
190
A4604275072
NUT BRAKE CABLE TO HAND BRAKE LEVER
200
A4634270191
GROMMET CABLE THRU VEHICLE FLOOR
220
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
230
A4614202185
BRAKE CABLE LEFT, WITH DRUM BRAKE
240
A4614202285
BRAKE CABLE RIGHT, WITH DRUM BRAKE
280
N916016018202
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
290
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
290
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
