Mercedes A0025450628 - КЛЕММА

G 270 CDI 461.345 TO CHASSIS 144790

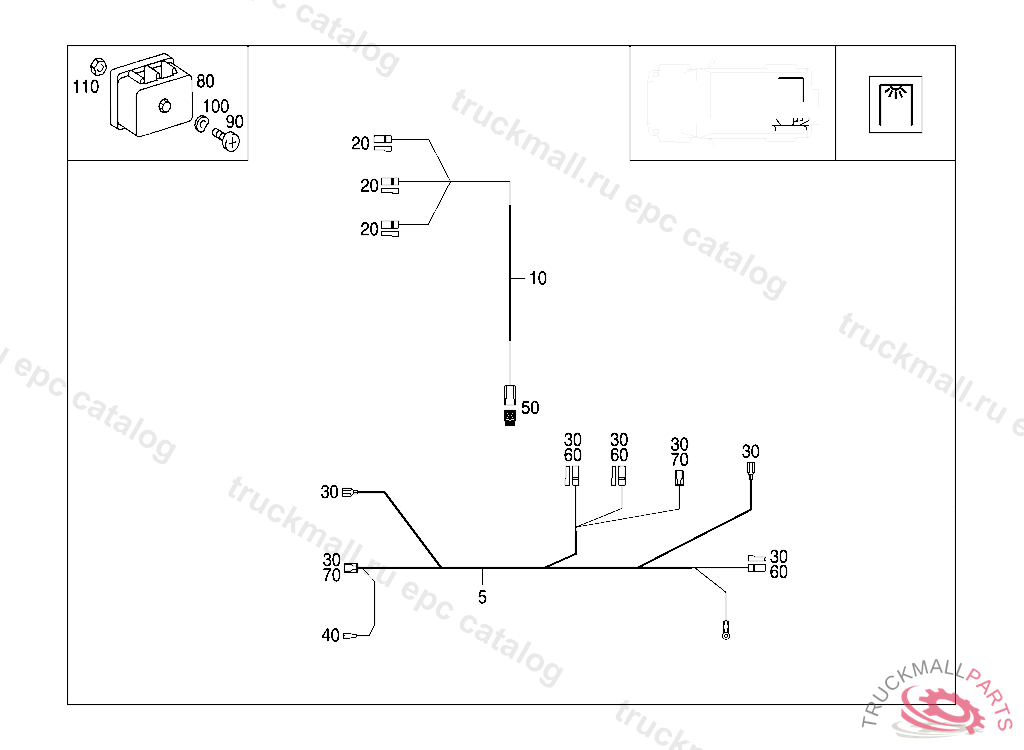

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 390 INBOARD CABLE HARNESS
  • Поз.
    Артикул
    Описание
  • 10
    ELECTRIC CABLE INTERIOR LAMP
  • 20
    PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
  • 40
    PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
  • 50
    PLUG HOUSING 3-POLE
  • 60
    PIN BUSHING HOUSING PIN BUSHING 5.3 MM
  • 70
    GROMMET5.0 MM
