Mercedes N922004025200 - Проводка

G 270 CDI 461.345 TO CHASSIS 144790

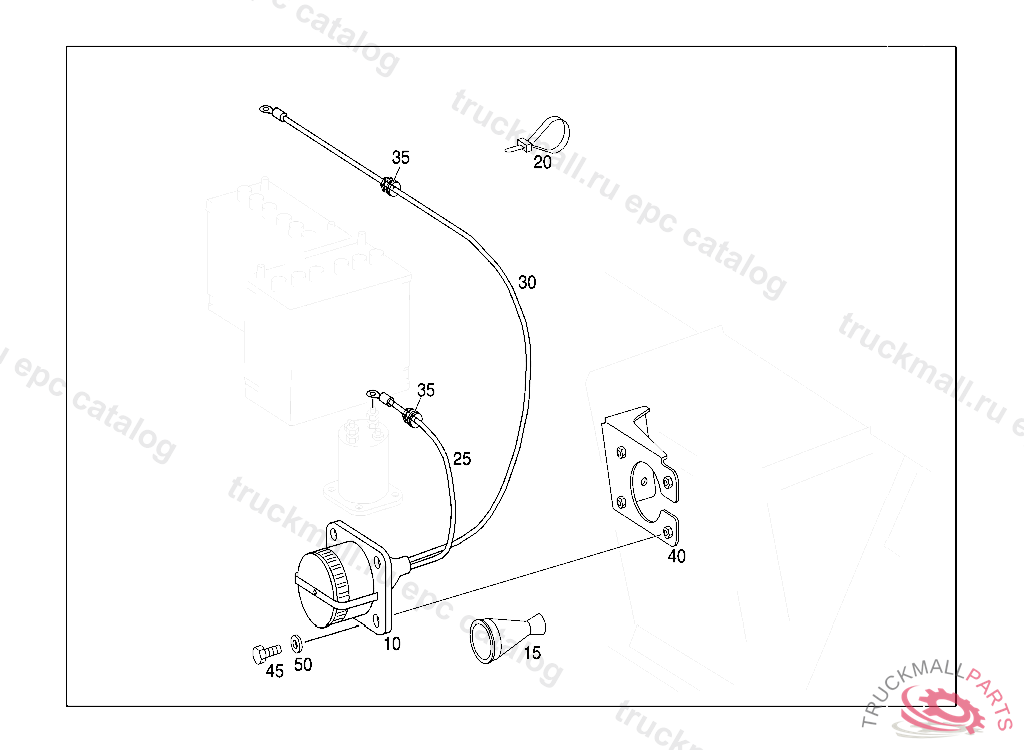

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 050 JUMP-START PLUG SOCKET

Поз.
Артикул
Описание
10
A4615402781
WIRING HARNESS. PLUG SOCKET JUMP-START PLUG SOCKET 24 V
10
N072593035100
PLUG SOCKET BIPOLAR
15
A0009976781
GROMMET
20
A0019978390
LOOM TIE LINE MOUNTING 280 MM
25
N922004025200
ELECTRIC CABLE BETWEEN THE BATTERIES 310 MM, ORDER BY THE METER
30
N922004025200
ELECTRIC CABLE BETWEEN THE BATTERIES 310 MM, ORDER BY THE METER
35
A4615420072
NUT FOR SEALED BOLTED CONNECTION,WIRING HARNESS TO 461 543 03 78
40
A4618801914
BRACKET JUMP-START PLUG SOCKET 24 V
45
N304017006020
SCREW LICENSE PLATE TO BRACKET
50
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
