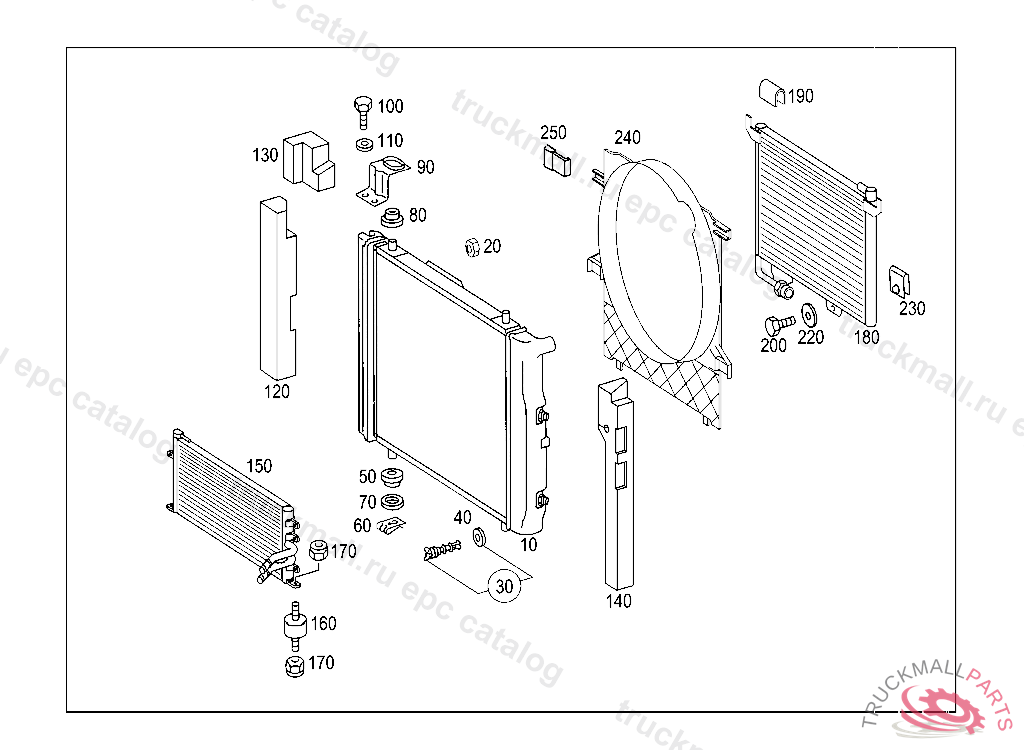

Поз.
Артикул
Описание
10
WATER COOLER , X 18800720101222
10
RADIATOR RADIATOR
10
RADIATOR
20
NUT RADIATOR MOUNTING
30
SCREW WATER DRAIN
40
WASHER WATER DRAIN
50
RUBBER PAD RADIATOR TO SUPPORT
60
SECURING RADIATOR MOUNTING,BOTTOM, X 18800620101222
60
SECURING RADIATOR MOUNTING,BOTTOM, 20131113
60
LOCK RADIATOR MOUNTING,BOTTOM, 763829 P 000001
70
SPACER DISK RADIATOR MOUNTING,BOTTOM 15X32, X 20407720121031
70
SCHEIBE. THRUST WASHER RADIATOR MOUNTING,BOTTOM
80
RUBBER MOUNTING RADIATOR MOUNTING,TOP
90
BRACKET RADIATOR MOUNTING,TOP
90
BRACKET RADIATOR MOUNTING,TOP
100
SCREW PUMP TO BRACKET
110
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
110
WASHER COMPRESSED AIR LINE TO BRACKET
120
SEAL TO RIGHT RADIATOR
130
RUBBER SEAL RIGHT TOP
140
SEAL TO LEFT RADIATOR
180
CONDENSER RADIATOR
190
INTERMEDIATE LAYER ADDITIONAL BLOWER TO CONDENSER,A 496760
200
SCREW , WITH DIESEL ENGINE
220
WASHER COMPRESSED AIR LINE TO BRACKET
230
NUT RETAINER , Replaced By: A3229900091
240
FAN SHROUD ON WATER COOLER
250
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
