Mercedes N914112006019 - Болт

G 300 CDI 461.391 FROM CHASSIS 144791

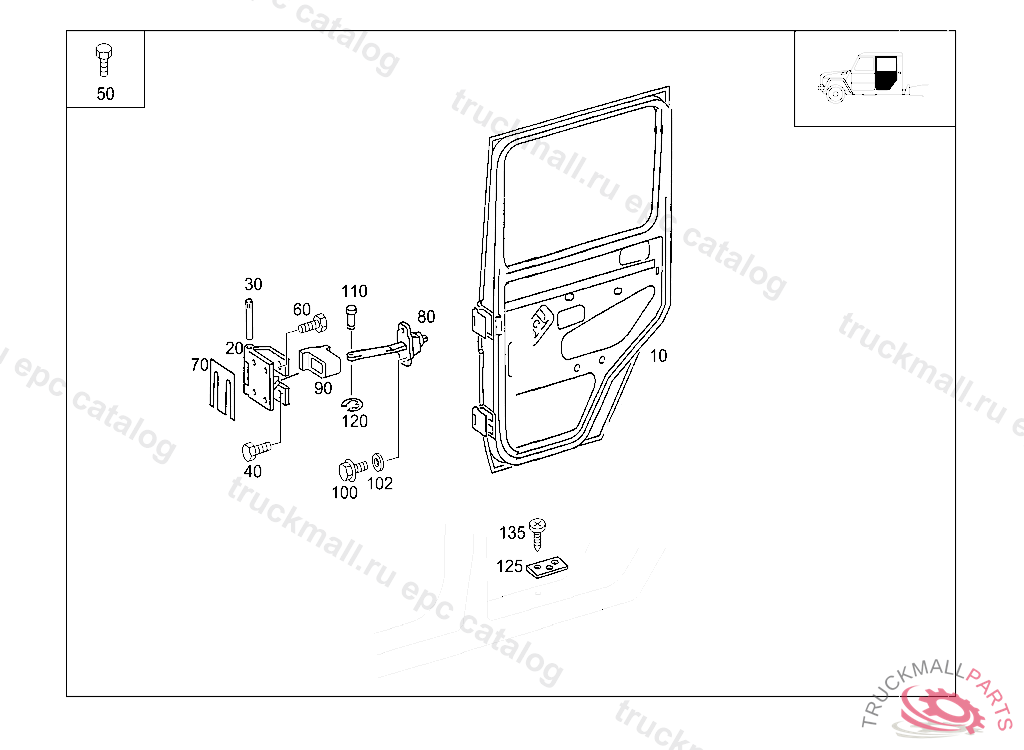

73 REAR DOORS - 015 REAR DOORS

Поз.
Артикул
Описание
10
A4617301005
REAR DOOR RIGHT, X 18191920090907
10
A4617300905
DOOR SHELL LEFT, X 18191920090907
20
A4637200037
HINGE LEFT FRONT, TOP AND BOTTOM
20
A4637200337
HINGE FRONT BOTTOM RIGHT
20
A4637200237
HINGE REAR TOP, LEFT
30
A4607230052
HINGE PIN FRONT TOP LEFT
40
N304017008021
SCREW PIPE CLAMP
60
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
70
A4607230197
PAD HINGE,LEFT, Replaced By: A4637250000
100
N914112006019
SCREW FLANGE TO TRANSMISSION CASE COVER
102
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
110
A0009911605
PIN BRACKET TO FRONT PANEL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009915405
120
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
