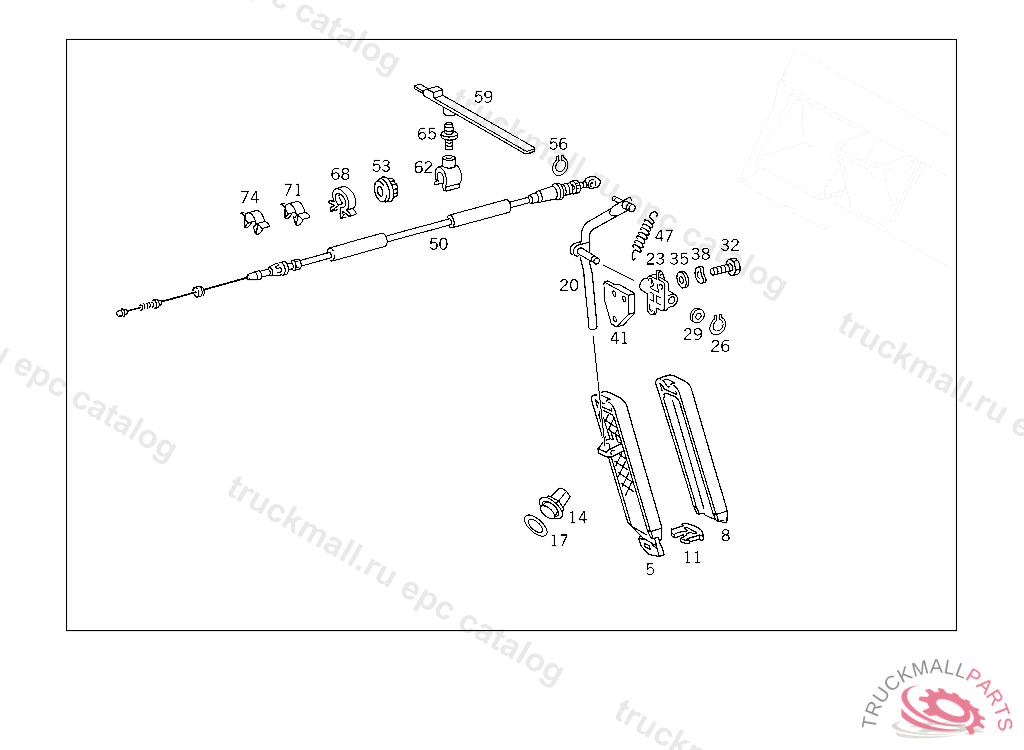

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
11
CLIP
14
STOP
14
KICK-DOWN SWITCH , Replaced By: A0003000141
14
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
17
SEAL RING KICK-DOWN SWITCH
20
LEVER
20
LEVER ACCELERATOR PEDAL
23
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
26
LOCK RINGTO 000 553 37 01,000 553 39 01,
29
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
32
SCREW , Replaced By: N304017006020
32
SCREW , Replaced By: N304017006016
32
SCREW PUMP TO BRACKET
32
SCREW LICENSE PLATE TO BRACKET
35
WASHER COMPRESSED AIR LINE TO BRACKET
35
WASHER , Replaced By: N009021006208
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
SHIM
47
SPRING
47
SPRING
50
WIRE CABLE
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002830
50
WIRE CABLE , Replaced By: A4633001930
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002930
50
WIRE CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 079649 907416, Replaced By: A4633002030
50
WIRE CABLE
50
WIRE CABLE
50
WIRE CABLE
53
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
56
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
56
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
59
LOOM TIE , Replaced By: A1169970890
62
CLAMP LINE MOUNTING
62
HOSE BRACKET. LOOM TIE
65
CONNECTOR BOWDEN CABLE TO BRACKET
68
BRACKET WIRE CABLE TO AIR CLEANER
71
CLAMP , Replaced By: A0009956544
74
CLAMP
74
CLAMP
