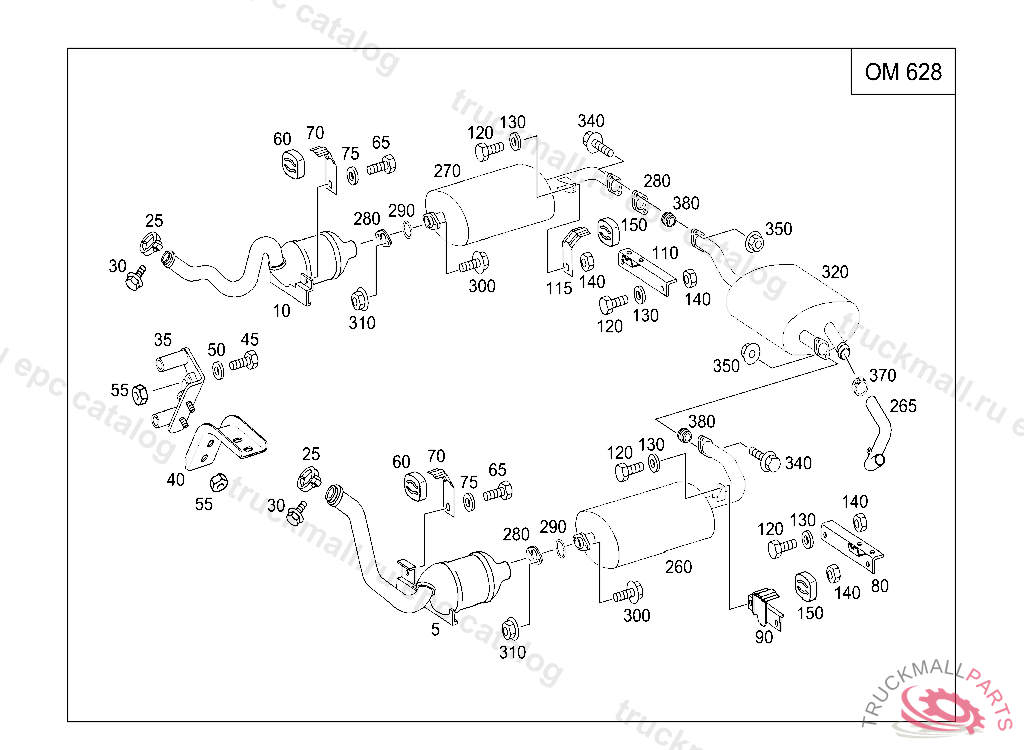

Поз.
Артикул
Описание
5
EXHAUST LINE FRONT LEFT
10
EXHAUST LINE FRONT RIGHT
25
CLAMP FRONT CATALYTIC CONVERTOR
30
SCREW SUPPORT TO FENDER
35
BRACKET EXHAUST LINE,FRONT LEFT AT CONVERTER HOUSING
35
BRACKET EXHAUST LINE,FRONT RIGHT AT CONVERTER HOUSING
40
BRACKET EXHAUST LINE,FRONT RIGHT AT CONVERTER HOUSING
45
SCREW PIPE CLAMP
50
WASHER PUMP TO CONSOLE
55
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
55
NUT HORN TO BRACKET M8
60
DAMPING PAD PARTICLE FILTER
65
SCREW BRACKET TO CROSS CONNECTION STRUT
70
BRACKET EXHAUST PIPE FRONT RIGHT ON FRAME
75
WASHER BRACKET TO LEFT SIDE MEMBER
80
BRACKET EXHAUST PIPE,REAR LEFT AT FRAME, X 20407720121031
90
BRACKET LEFT
110
BRACKET EXHAUST LINE,REAR RIGHT AT FRAME
115
BRACKET EXHAUST LINE,REAR RIGHT AT FRAME
120
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
120
SCREW CLAMP TO BRACKET AND TO PIPE
130
WASHER EXHAUST MUFFLER TO STRAP
140
HEXAGON NUT SCREENING PLATE,5 163561
150
DAMPING PAD PARTICLE FILTER
260
EXHAUST PIPE CENTRAL MUFFLER
265
EXHAUST PIPE. EXHAUST LINE MAIN MUFFLER
270
EXHAUST PIPE CENTRAL MUFFLER
280
FLANGE
280
FLANGE
280
FLANGE FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
290
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
300
SCREW VALVE TO BRACKET
310
HEXAGON NUT SCREENING PLATE,5 163561
320
EXHAUST MUFFLER MAIN MUFFLER
340
SCREW VALVE TO BRACKET M 8X55
350
HEXAGON NUT SCREENING PLATE,5 163561
370
CLAMP REAR LEFT EXHAUST PIPE, A 01926020080430
380
SEAL RING , Replaced By: A2024920381
