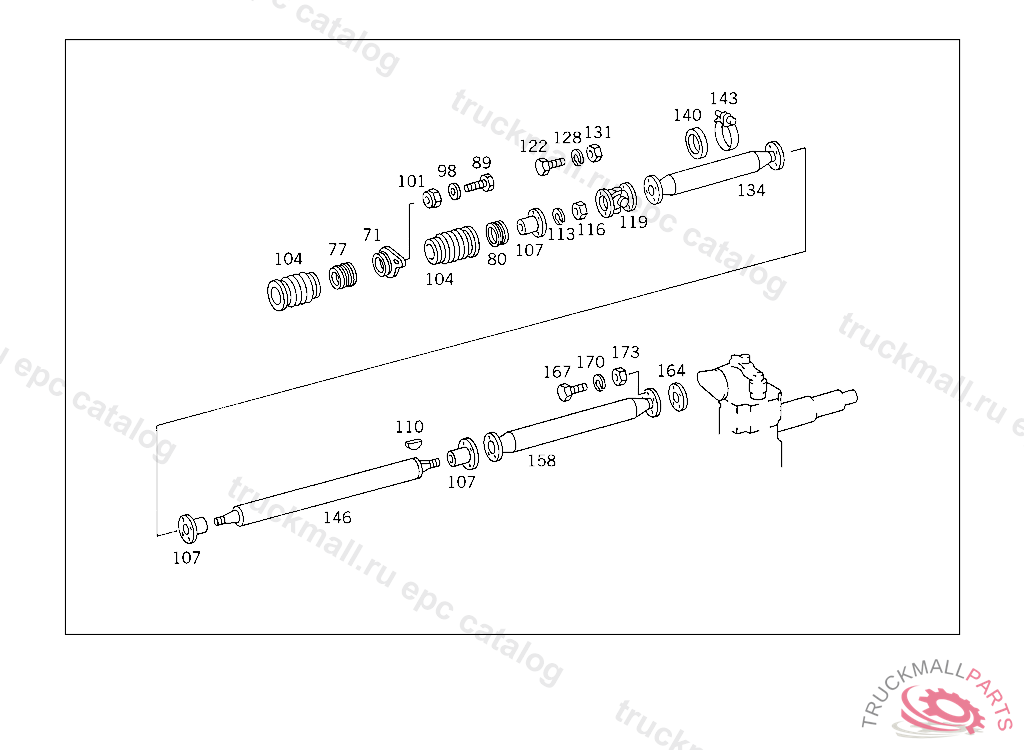

Поз.
Артикул
Описание
71
BRACKET SHIFTING ROD BEARING
77
BUSHING SHIFTING ROD TO BRACKET
77
BUSHING , Replaced By: A3572680050
80
BUSHING , Replaced By: A3572680150
80
BUSHING SHIFTING TUBE
89
SCREW , Replaced By: N304017008034
89
SCREW BRACKET TO CROSS CONNECTION STRUT
98
WASHER , Replaced By: N000125008443
98
WASHER EXHAUST MUFFLER TO STRAP
101
NUT , Replaced By: N913004008001
104
BOOT SHIFTING TUBE
107
CONNECTOR FLANGE TO SHIFTING TUBE
110
WOODRUFF KEY FLANGE TO SHIFTING TUBE
113
LOCK WASHER FITTING TO BRACKET
116
NUT STRAP TO SUPPORT
119
JOINT SHIFTING ROD TO SHIFTING ROD
119
JOINT SHIFTING ROD TO SHIFTING ROD
122
SCREW SHIFTING TUBE TO TRANSMISSION
128
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
131
NUT , Replaced By: N304032008006
134
SHIFTING ROD SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE
140
RUBBER RING SHIFTING ROD BEARING: NO. 4
143
CLAMP AT SHIFTING TUBE
146
SHIFTING ROD REAR SHIFTING ROD TO JOINT
158
SHIFTING ROD REAR
158
SHIFTING ROD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 060213, Replaced By: A3002603933
164
SPACER WASHER2 MM
164
SPACER WASHER3 MM
164
SPACER WASHER5 MM
167
SCREW SHIFTING ROD TO TRANSMISSION
170
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
173
NUT , Replaced By: N304032008006
