Главная
›
Mercedes
›
VAN
›
214, 208CDI, 211CDI, 213CDI
›
901.662 FROM IDENT-NR. R337627, 5337627, A901274
›
83 HEATING/VENTILATION
›

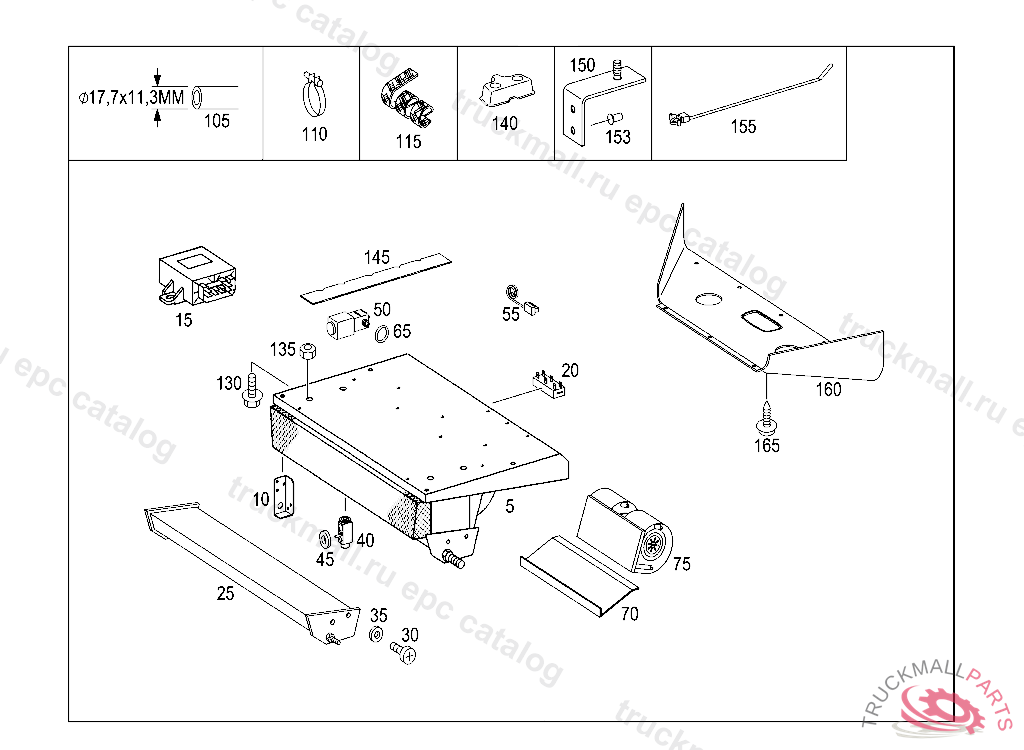

225 HEATING/AIR CONDITIONING IN REAR IL. 1
Mercedes A9018360133 - Экран
214, 208CDI, 211CDI, 213CDI 901.662 FROM IDENT-NR. R337627, 5337627, A901274
83 HEATING/VENTILATION - 225 HEATING/AIR CONDITIONING IN REAR IL. 1
Поз.
Артикул
Описание
5
A9018300058
EVAPORATOR
10
A0008305614
BRACKET SOLENOID VALVE
15
A6905450132
CONTROL UNIT TEMPERATURE CONTROL
20
A0018358206
RELAY. SWITCH
25
A0008310607
DRAIN PAN CONDENSED WATER
30
N000000000455
TAPPING SCREW. SHEET METAL SCREW REAR BUMPER
35
N009021004207
WASHER COVERING TO CYCLONE AIR TRAP
40
A0038300684
VALVE
45
A0239971648
SEAL RING
50
A0008330264
VALVE
55
A0008357579
THERMOSTAT
65
A0259974948
SEAL RING5/8 "
70
A0008207011
PLATE
75
A0028307308
BLOWER MOTOR. BLOWER , Replaced By: A0008358104
105
A9018310088
HOSE CONDENSED WATER DRAIN
110
N000000000948
CLAMP ENGINE RETURN LINE 12-18X9 MM
115
A9018311396
INSULATION
130
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
135
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
140
A9018360033
SCREENING LAMP COVER
145
A9018360133
SCREENING LAMP COVER
150
A6908300314
BRACKET. PART NAME MISSING , TO BE PROCURED FROM MBA ONLY
153
A0029906297
RIVET BINDING RAIL TO PLATFORM SIDE PANEL 4.8 X 9.5 MM
153
A0039903897
RIVET , Replaced By: A0029906297
155
A6509970090
LOOM TIE HOSE TO HEATING PIPE
160
A9018300245
PANELING ADAPTER FITTING
165
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
999
A0008240277
MAGNET
999
A6908310028
INTERMEDIATE PIECE
