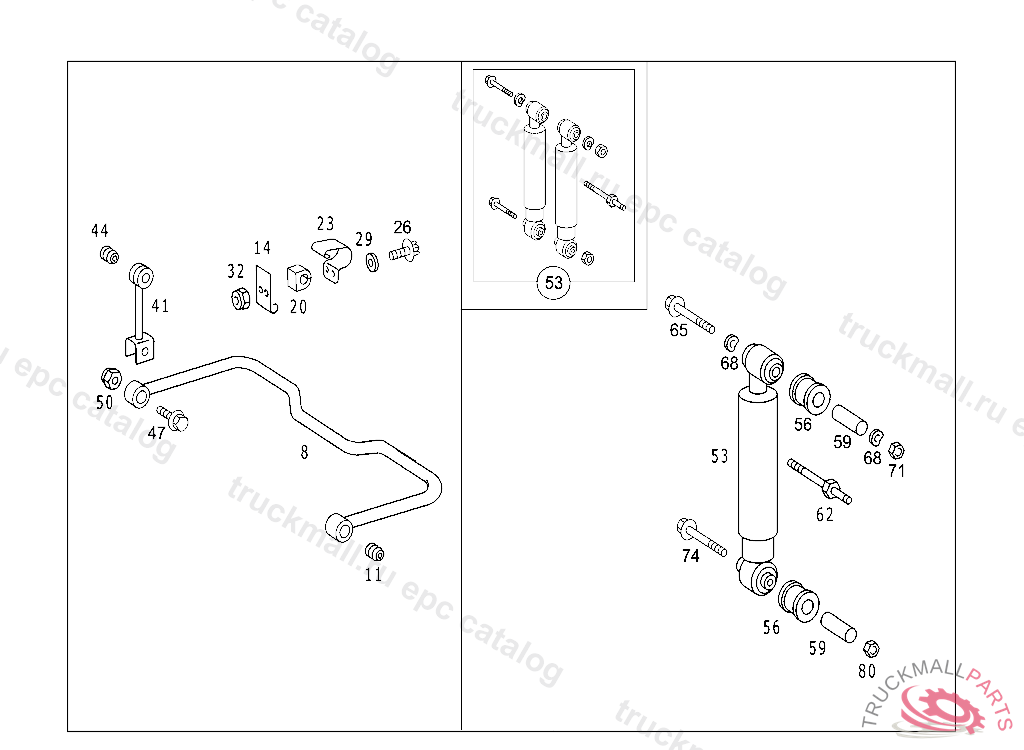

Поз.
Артикул
Описание
8
TORSION BAR
8
TORSION BAR
11
BUSHING. RUBBER MOUNTING TORSION BAR,FRONT
14
BRACKET TORSION BAR TO REAR AXLE
20
RUBBER MOUNTING TORSION BAR TO REAR AXLE 22MM
20
RUBBER MOUNTING TORSION BAR TO REAR AXLE 27MM
23
CLAMP TORSION BAR TO REAR AXLE
26
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
26
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
29
WASHER BRACKET TO CROSS MEMBER
29
WASHER PULL ROD TO SHIFT LEVER
32
NUTTO 345 094 81 02
32
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
41
ROD
44
BUSHING. RUBBER MOUNTING TORSION BAR,FRONT
47
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
50
NUT BRACKET TO SIDE MEMBER M12X1.5
53
SHOCK ABSORBER
53
CHASSIS EQUIPMENT PACKAGE 2 SHOCK ABSORBERS INCLUDING ATTACHING PARTS
53
SHOCK ABSORBER
53
CHASSIS EQUIPMENT PACKAGE 2 SHOCK ABSORBERS INCLUDING ATTACHING PARTS
53
CHASSIS EQUIPMENT PACKAGE 2 SHOCK ABSORBERS INCLUDING ATTACHING PARTS
53
SHOCK ABSORBER
53
SHOCK ABSORBER
56
RUBBER MOUNTING BOTTOM
59
BUSHING TOP MONROE
59
BUSHING BOTTOM
62
PIN SHOCK ABSORBER TO FRAME
65
HEXAGON HEAD BOLT AT FRAME, REAR M14X1.5X150
65
SCREW. HEXAGON HEAD BOLT LEAF SPRING TO RUBBER MOUNTING M14X1.5X150
68
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
71
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
74
SCREW MOUNTING PARTS M 12X65
80
NUT BRACKET TO SIDE MEMBER M12X1.5
