Mercedes N304017008043 - БОЛТ М8

SPRINTER 308 D 903.362

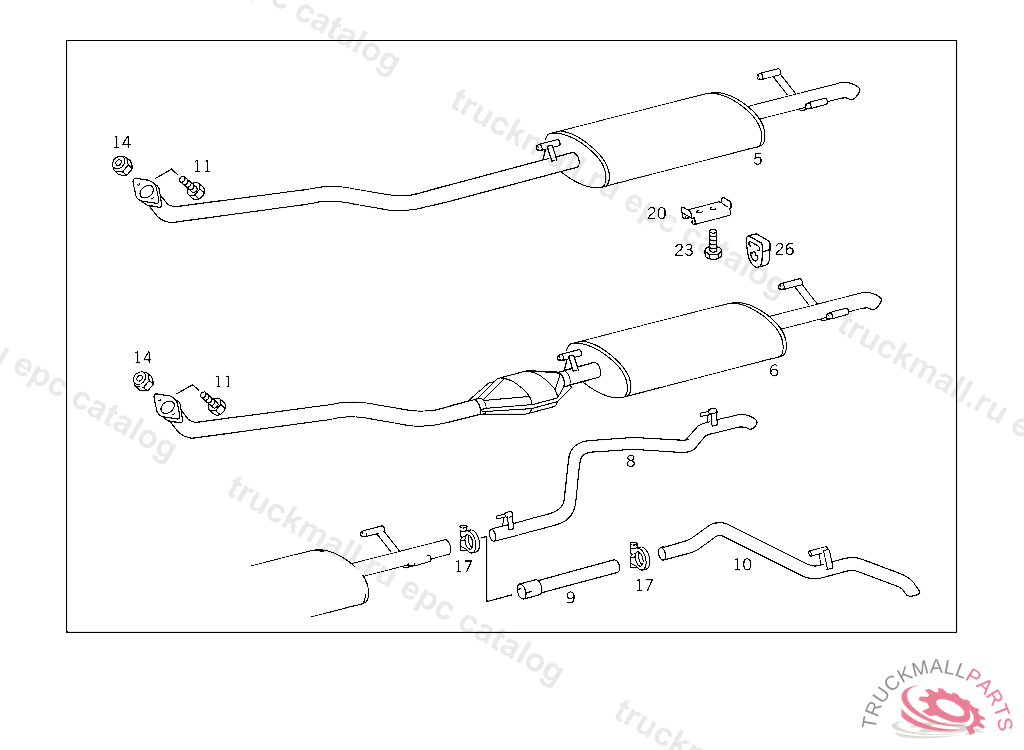

49 EXHAUST SYSTEM - 200 EXHAUST SYSTEM,OM 601

Поз.
Артикул
Описание
5
A9014900119
5
A9034900219
6
A9014901019
8
A9014900221
9
A9014922704
10
A9014902721
EXHAUST PIPE BEHIND REAR AXLE,LEFT
11
N304017008043
SCREW VALVE TO BRACKET M 8X55
11
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
11
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
14
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
A1244900041
CLAMP , Replaced By: A0004900741
17
A0004900841
CLAMP
20
A9014924141
BRACKET REAR EXHAUST PIPE TO FRAME
23
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
A9014920044
SUSPENSION RING
