Mercedes A6908300303 - КОРПУС

314, 308CDI, 311CDI, 313CDI, 316CDI 903.663 FROM IDENT-NR. R337627, 5337627, A901274

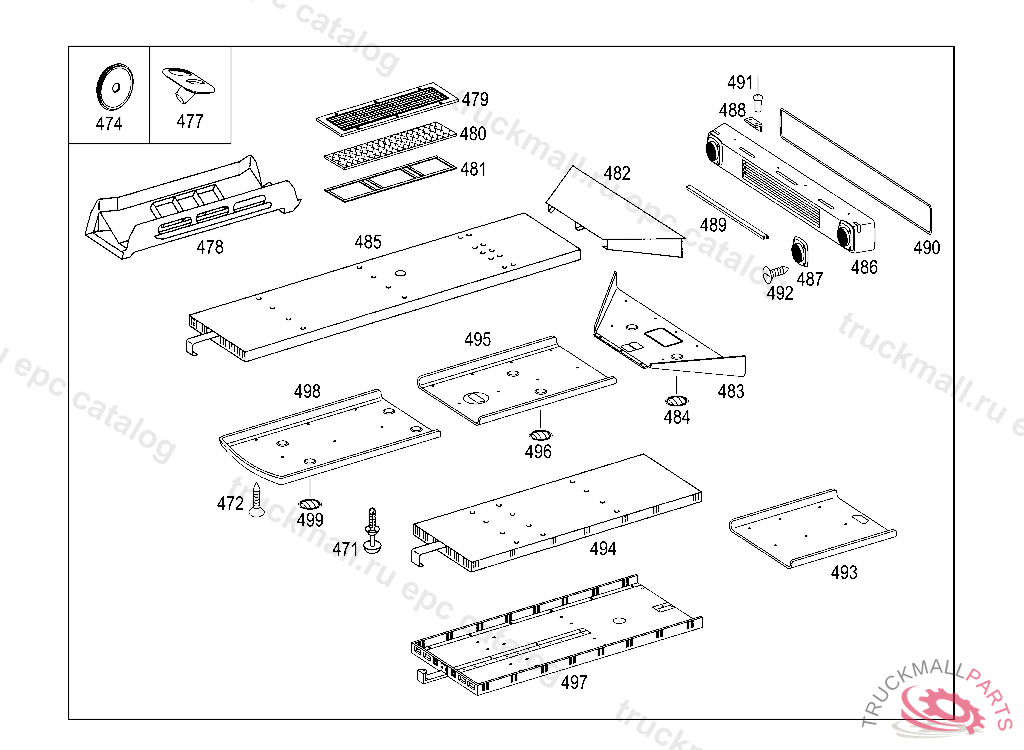

83 HEATING/VENTILATION - 188 AIR CONDITIONER ON ROOF IL. 3

Поз.
Артикул
Описание
471
A9019900192
RIVET PANELLING TO ROOF RAIL
472
N007981004253
SHEET METAL SCREW SWITCH TO BRACKET
474
A9019870045
LOCKING CAP FLOOR ABOVE REAR AXLE,TO FUEL GAUGE SENDER UNIT 80 MM
477
A1169970181
GROMMET
478
A6908330010
COVER , 20060428 TO BE PROCURED FROM MBA ONLY
478
A6908309745
PANELLING. PANELING , 20060428 TO BE PROCURED FROM MBA ONLY
478
A6908300303
HOUSING EVAPORATOR, A 94653320060428 TO BE PROCURED FROM MBA ONLY
478
A6908300103
HOUSING EVAPORATOR, A 94653220060428 TO BE PROCURED FROM MBA ONLY
482
A6908309245
AIR DUCT ADAPTER FITTING
483
A6908300064
PANELING , 20060428 TO BE PROCURED FROM MBA ONLY
483
A6908309345
PANELLING ADAPTER FITTING,A 509576(690.340),A 513804(690.341)
486
A6908300043
VENTILATION SCREEN , TO BE PROCURED FROM MBA ONLY
487
A0008313260
NOZZLE
488
A0008310512
ANGLE
489
A0008350683
DISC
490
A0008314398
SEAL
491
A0039902497
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
492
N000000000485
TAPPING SCREW MOUNTING, COVER
999
A6908330410
COVER EVAPORATOR, TO BE PROCURED FROM MBA ONLY
