Mercedes A9018327123 - Шланг

314, 308CDI, 311CDI, 313CDI, 316CDI 903.663 FROM IDENT-NR. R337627, 5337627, A901274

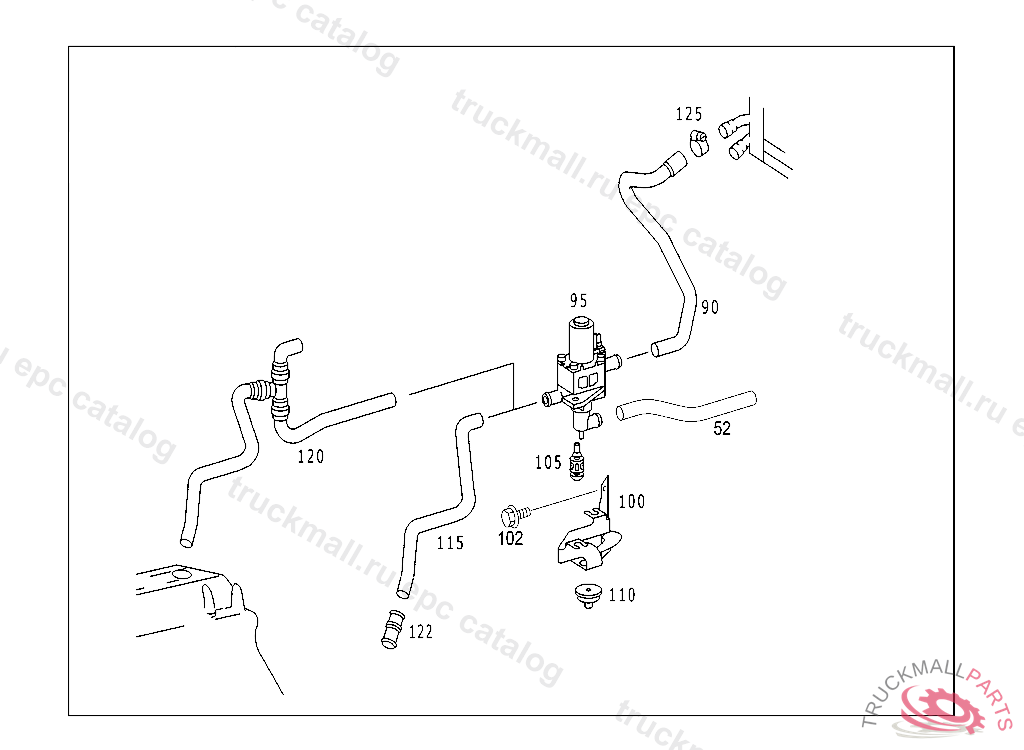

83 HEATING/VENTILATION - 185 HOT WATER CONNECTION IL. 3

Поз.
Артикул
Описание
52
A9018328123
HOSE ON FEED LINE
90
A9018324323
HOSE
95
A0018300684
VALVE SUPPLIER: MESSRS. BOSCH, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
100
A9018320113
BRACKET HEATING WATER VALVE, TO BE PROCURED FROM MBA ONLY
100
A9018320013
BRACKET TIMING VALVE
102
N000000004310
HEXAGON HEAD BOLT LINE MOUNTING M6X10
105
A1249870340
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
110
A1409870140
RUBBER BUFFER WATER VALVE TO BRACKET
115
A9018325723
HOSE PULSED VALVE TO ENGINE M 111
115
A9018324223
HOSE
120
A9018325823
HOSE
120
A9018327023
HOSE
120
A9018327123
HOSE
120
A9018325623
HOSE
122
A6389970472
FITTING. REDUCING PIECE
125
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
