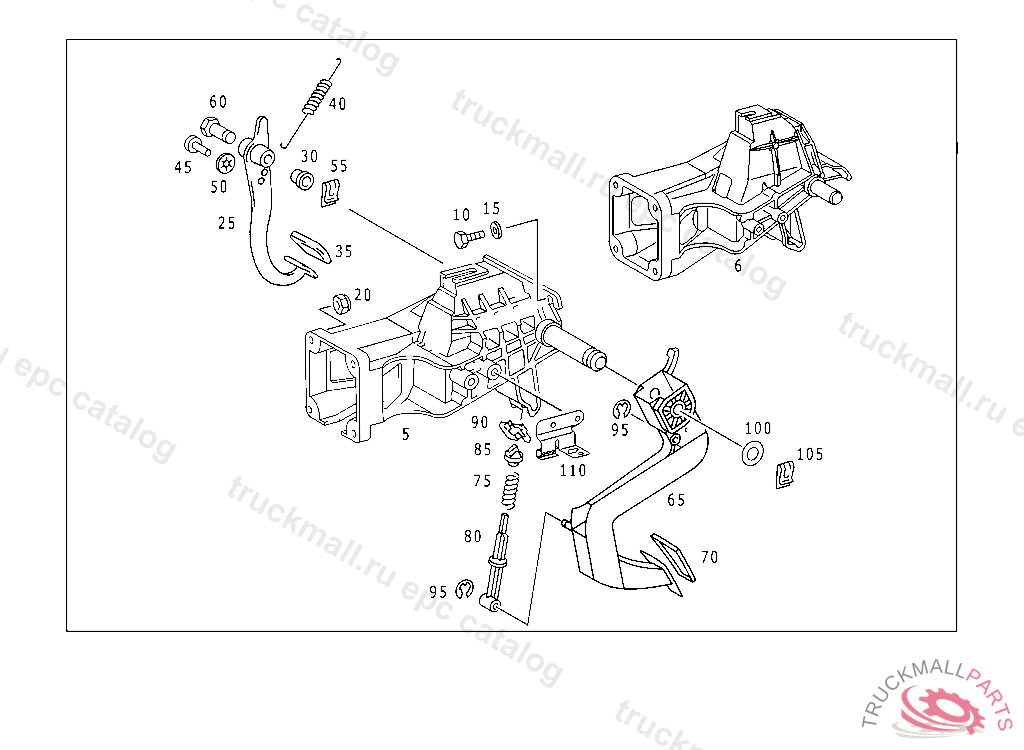

Поз.
Артикул
Описание
5
BEARING BRACKET PEDAL ASSEMBLY
5
BEARING BRACKET PEDAL ASSEMBLY
5
BEARING BRACKET , Replaced By: A9012901119
6
BEARING BRACKET , Replaced By: A9012901119
6
BEARING BRACKET PEDAL ASSEMBLY
10
SCREW ENGINE MOUNTING TO FRONT CROSS MEMBER
15
WASHER BRACKET TO LEFT SIDE MEMBER
15
WASHER BRACKET TO CAB REAR PANEL
20
NUT HORN TO BRACKET M8
25
BRAKE PEDAL
30
BUSHING BRAKE PEDAL
35
PAD BRAKE PEDAL TO 638 290 03 18, 05 18, 901 290 05 18
40
SPRING BRAKE PEDAL,A 510086
45
PIN BRAKE PEDAL TO BRAKE BOOSTER
50
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
55
LOCK AT WATER EXPANSION TANK
60
PIN BRAKE PEDAL TO BEARING BRACKET
65
CLUTCH PEDAL. PEDAL (CLUTCH PEDAL)
70
COVERING. PAD CLUTCH AND BRAKE
75
SPRING OVER-CENTER ACTING SPRING
80
ROD
85
SPRING RETAINER OVER-CENTER ACTING SPRING
90
CLIP
95
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
100
WASHER PEDALS TO PIVOT PINS
105
LOCK AT WATER EXPANSION TANK
110
STOP CLUTCH PEDAL
