Mercedes A0008301264 - ZB VERKLEIDUNG VERDA

314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.673 TO IDENT-NR. R337626

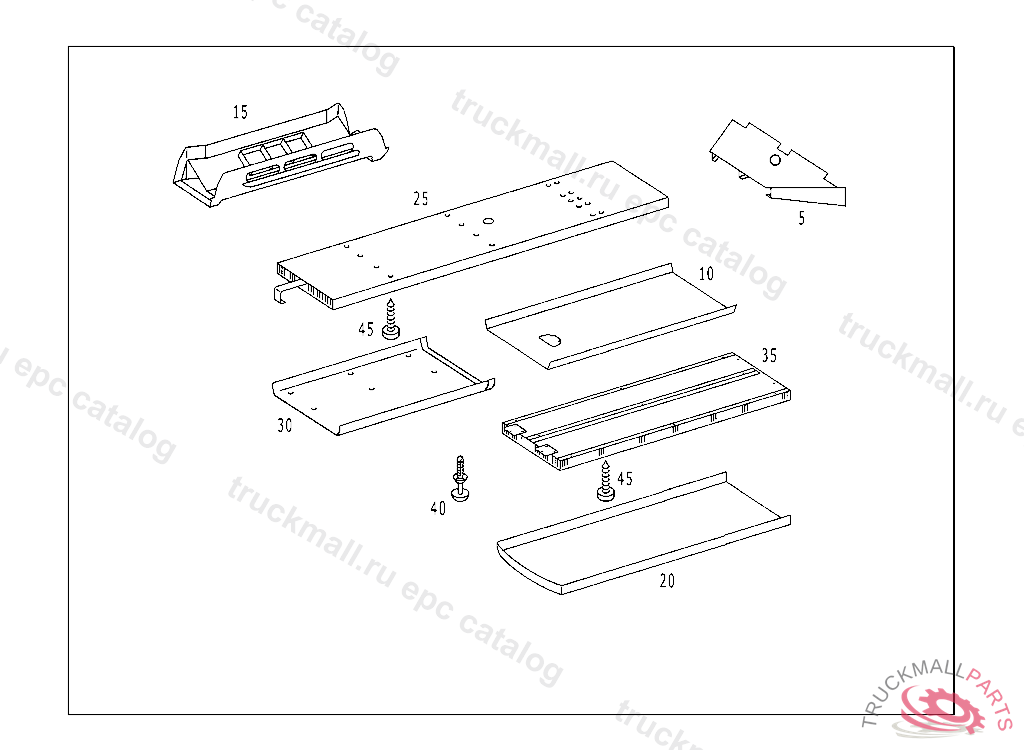

83 HEATING AND VENTILATION - 210 AIR DUCT TO ROOF

Поз.
Артикул
Описание
5
A9018300045
AIR DUCT ADAPTER FITTING
5
A6908309245
AIR DUCT ADAPTER FITTING
10
A6908309645
AIR DUCT REAR PART
15
A0008301264
LINING EVAPORATOR
15
A9018300164
PANELING , Replaced By: A9018301364
15
A9018300364
LINING EVAPORATOR , Replaced By: A9018301564
15
A9018301364
PANELING
15
A9018301564
LINING EVAPORATOR
20
A9018301244
AIR DUCT INTERIOR PART,FRONT
25
A9018301344
AIR DUCT INTERIOR PART,FRONT
30
A9018301444
AIR DUCT EXTENSION
35
A9018301544
AIR DUCT INTERIOR PART,REAR
40
A9019900192
RIVET PANELLING TO ROOF RAIL
45
N007981004253
SHEET METAL SCREW SWITCH TO BRACKET
999
A0006930287
BAND. STRAP
999
A0008310278
CATCH. FASTENER
999
A0008354434
SPRING CLIPTO A 628 830 65 61
999
A0008360199
RING FASTENER, NOT USED
999
A0008361918
GRILLE , R 75425720041029
999
A0018350647
FILTER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. R 63356620040227563356620040227, Replaced By: A0028350447
999
A0029891398
SEALING STRIP
999
A0059904240
WASHER
