Mercedes A0009904892 - Крепёж

314, 308 CDI, 311 CDI, 313 CDI, 316 CDI 903.673 TO IDENT-NR. R337626

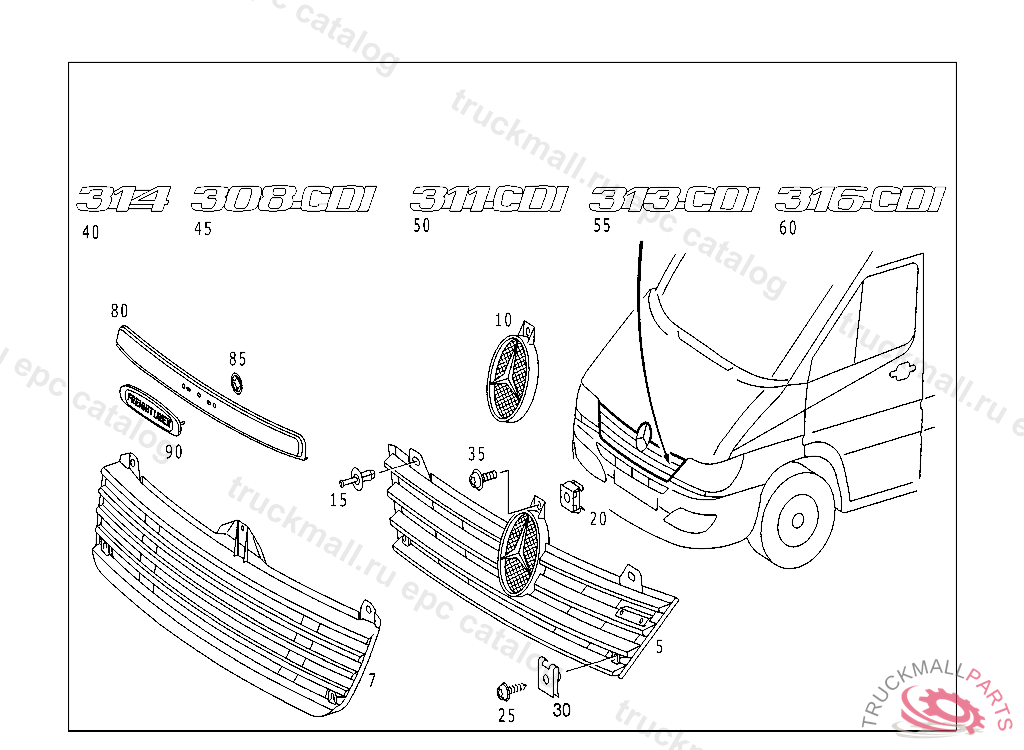

88 ATTACHMENT PARTS - 430 RADIATOR GRILLE SHELL

Поз.
Артикул
Описание
5
A9018800185
RADIATOR GRILLE READY TO BE PAINTED
5
A9018800085
RADIATOR GRILLE
7
A9018800285
RADIATOR GRILLE
10
A9018170016
BADGE , 20060101
15
A0009904892
RIVET
20
N913014006003
CAPTIVE NUT. NUT
25
N000000000530
TAPPING SCREW
30
A0039949945
LOCK. FUSE , R 44096820020830 20021024
35
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
40
A9018172314
TYPE DESIGNATION314
45
A9018172014
TYPE DESIGNATION308CDI, R 42378420020628 A 90600620021031
50
A9018172114
TYPE DESIGNATION311CDI, R 42378420020628 A 90600620021031 V 00000020021031
55
A9018172214
TYPE DESIGNATION313 CDI
60
A9018172414
TYPE DESIGNATION316CDI, R 42378420020628 A 90600620021031 V 00000020021031
80
A9017500025
COVERING ENGINE HOOD
85
A0059907540
WASHER ORNAMENTAL COVER TO ENTRANCE
90
A9018170025
WORKS LABELFREIGHTLINER
