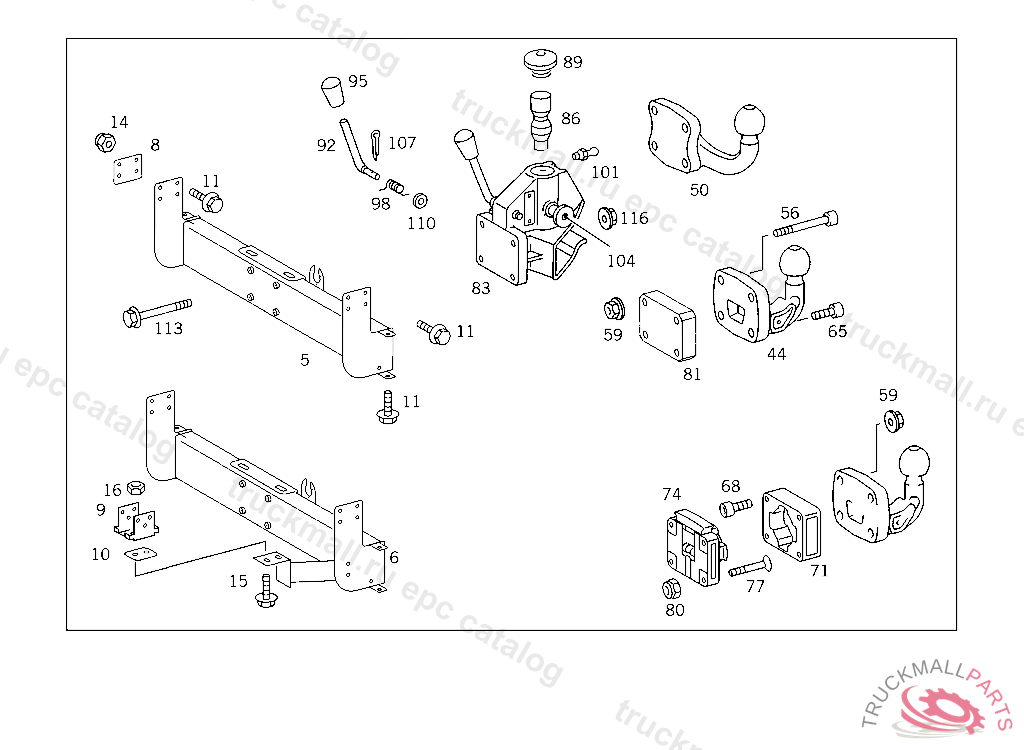

Поз.
Артикул
Описание
5
CROSS MEMBER (PARTS KIT),REAR CROSS MEMBER
6
CROSS STRUT REAR CROSS MEMBER
8
PLATE 0
9
BRACKET
10
BASE PLATE AT BRACKET
11
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
14
NUT BRACKET TO SIDE MEMBER M12X1.5
15
SCREW AT FRAME
16
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
44
TRAILER COUPLING REAR
50
56
SCREW BRACKET TO INJECTION PUMP M 10X90
56
CAP BOLT DEFLECTION PULLEY ON CYLINDER CRANKCASE
56
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
56
SCREW STRAP TO SUPPORT M 10X140
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
SCREW OIL FILTER TO CYLINDER CRANKCASE
68
CAP BOLT. SCREW BELT TIGHTENER TO SUPPORT M10X50,*0211352
71
PLATE
74
PLATE WITH COVERING CAP 3,25T
77
SCREW BASE PLATE TO TRAILER COUPLING
77
SCREW. BOLT PLATE TO CROSS MEMBER
80
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
81
PLATE TRAILER COUPLING TO REAR CROSS MEMBER
81
83
TRAILER COUPLING , Replaced By: A0023156199
83
TRAILER COUPLINGROCKINGER TYP 243U115EA
86
COUPLING PINROCKINGER TYP 243 U115 EO/EK
89
COVERROCKINGER TYP 243 U115 EA/EL
92
LEVER
95
HANDLE
98
SPRINGROCKINGER TYP 243 U115 EO/EK
101
GREASE NIPPLEROCKINGER
104
LOCK
104
LOCK
107
COTTER PIN STRAP TO BRACKET
110
WASHER BRACKET TO AIR INTAKE SCOOP
113
HEXAGON HEAD BOLT BRACKET MOUNTING M10X100
116
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
