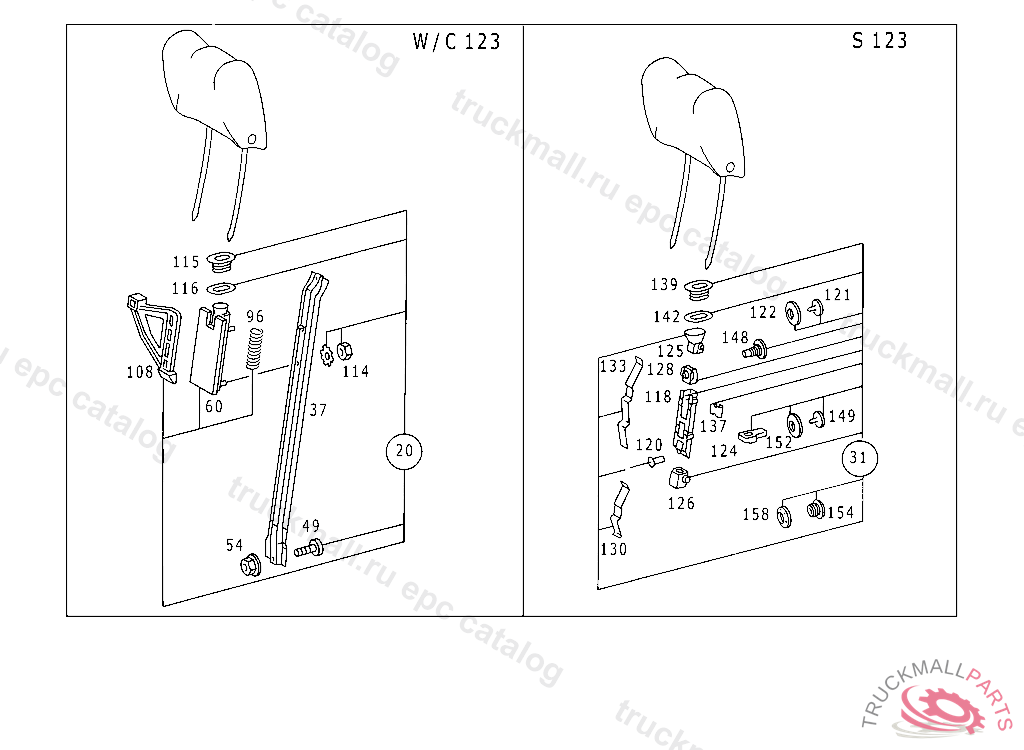

Поз.
Артикул
Описание
20
MOUNTING MATERIAL RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
31
MOUNTING MATERIAL RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
37
FRAME GUIDE TO BRACKET
49
SCREW APPARATUS PLATE TO CAB,K 062140
54
NUT HOOK TO BRACKET
60
RAIL LEFT,HEADREST
60
RAIL RIGHT, HEADREST
96
SPRING
108
CONTROL MECHANISM
114
NUT HOOK TO BRACKET
115
EYE
116
EYE
118
RAIL GUIDE TO BRACKET
120
RIVET NAME PLATE TO BRACKET
121
RIVET HEADREST UNLOCKING MECHANISM,UPPER PART, FROM CHASSIS 123.083 002297 123.086 001761 123.093 001874 123.183 004044 123.190 005005
122
RIVET HEADREST UNLOCKING MECHANISM,LOWER PART, FROM CHASSIS 123.083 002297 123.086 001761 123.093 001874 123.183 004044 123.190 005005
124
SLIDE , FROM CHASSIS 123.083 002297 123.086 001761 123.093 001874 123.183 004044 123.190 005005
125
GUIDE TOP
126
GUIDE BOTTOM
128
FRICTION PIECE TOP
130
SPRING
133
SPRING QUIDE RAIL,LEFT
137
CLIP
139
EYE
142
EYE
148
EYE HEADREST UNLOCKING MECHANISM, UP TO CHASSIS123.083 002296 123.086 001760 123.093 001873 123.183 004043 123.190 005004
149
RIVET HEADREST UNLOCKING MECHANISM,UPPER PART, FROM CHASSIS 123.083 002297 123.086 001761 123.093 001874 123.183 004044 123.190 005005
152
RIVET HEADREST UNLOCKING MECHANISM,LOWER PART, FROM CHASSIS 123.083 002297 123.086 001761 123.093 001874 123.183 004044 123.190 005005
154
EYE
154
EYE
158
EYE
