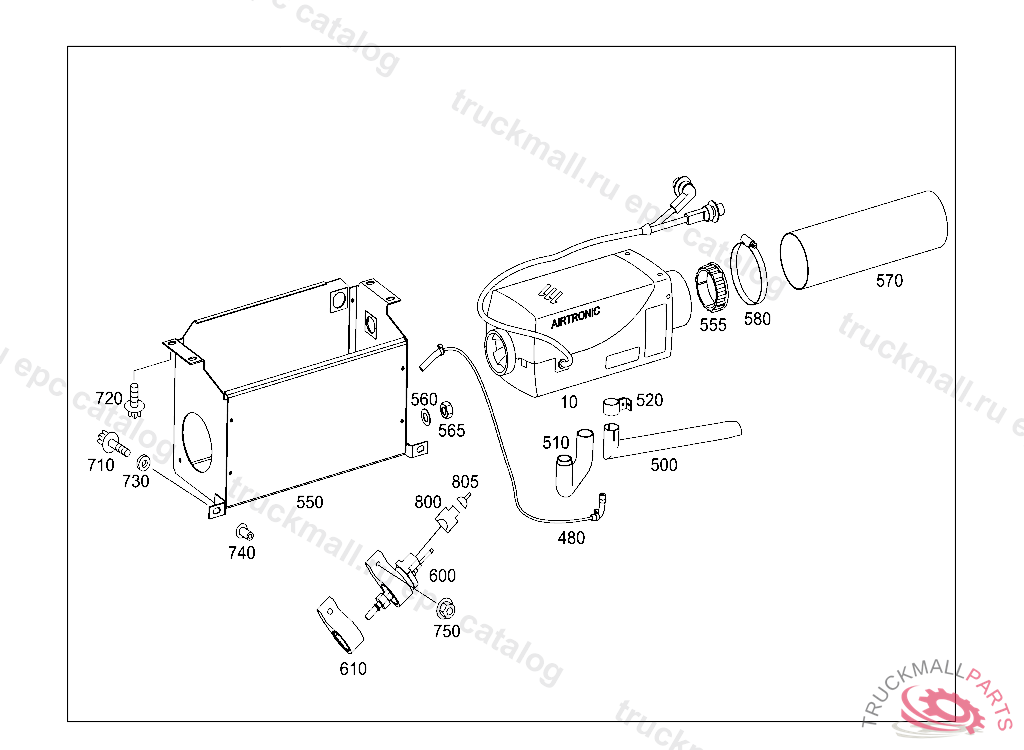

Поз.
Артикул
Описание
10
HEATER UNIT
480
FUEL HOSE
500
PIPE
510
HOSE ASSEMBLY COMBUSTION AIR, Replaced By: A0008322894
510
HOSE
520
CLAMP PROTECTIVE TUBE TO CAB
520
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
550
BOX
555
NUT. CLAMPING RING
560
SPRING WASHER LICENSE PLATE TO BRACKET
565
HEXAGON NUT ELECTRIC CABLE TO BATTERY TERMINAL M6, GRIDHEATER
570
HOSE FROM AUXILIARY HEATER TO ENGINE
580
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
600
FUEL PUMP
610
BRACKET PUMP TO BRACKET 43/25MM,ZEN 158/04, Y40009, 01.09.04
710
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
720
SCREW BRACKET TO SIDE MEMBER M8X20
730
WASHER LINE MOUNTING
740
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
740
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
750
NUT BRACKET TO BODY SHELL M6
800
PLUG INJECTION VALVE
800
PLUG
805
CONTACT SPRING. PLUG SOCKET0,5-1,0
805
GASKET. BLIND PLUG
805
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
805
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
805
WIRE SEAL
805
GASKET ALTERNATOR 5.2 MM,G2
