Главная
›
Mercedes
›
VAN
›
224, 209CDI, 211CDI, 215CDI, 218CDI
›
906.611
›
49 EXHAUST SYSTEM
›

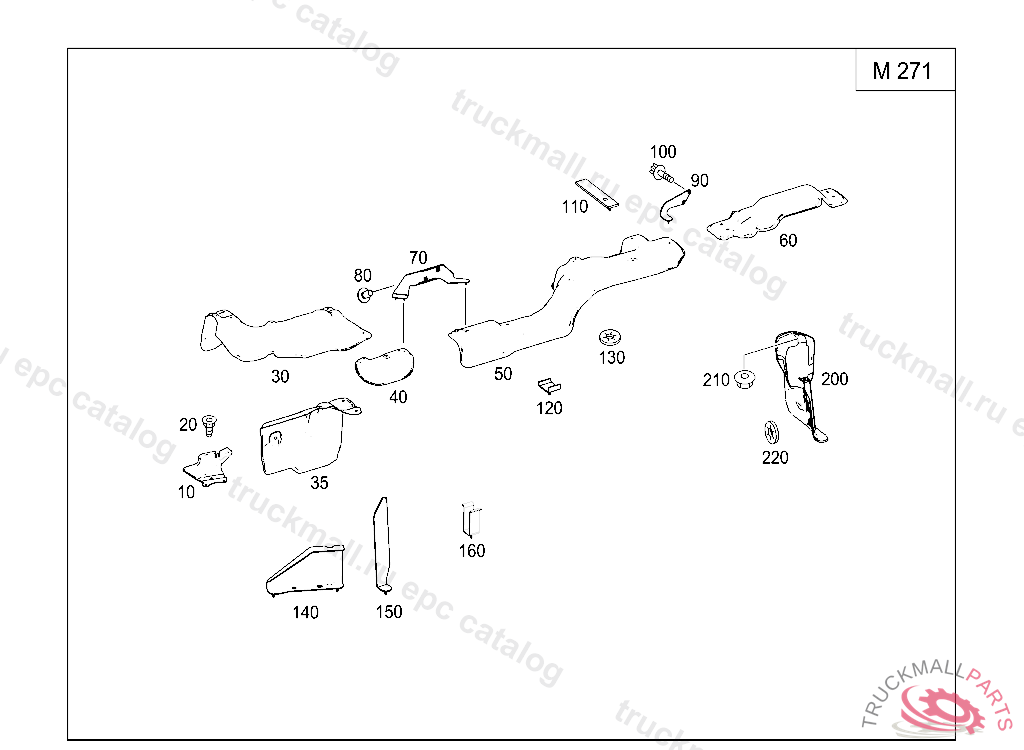

300 SCREENING PLATES IL. 1
Mercedes A9064700547 - Экран
224, 209CDI, 211CDI, 215CDI, 218CDI 906.611
49 EXHAUST SYSTEM - 300 SCREENING PLATES IL. 1
Поз.
Артикул
Описание
10
A9015460281
COVERING AT TRANSMISSION
20
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
30
A9064913330
PROTECTIVE PLATE OVER CATALYST
35
A9064914030
HEAT SHIELD SIDE CATALYTIC CONVERTER
40
A9064913230
PROTECTIVE PLATE DOWNSTREAM CATALYTIC CONVERTER
70
A9064901940
BRACKET HEAT SHIELD TO HEAT SHIELD
80
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
100
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
110
A9064701481
BRACKET REAR HEAT SHIELD
130
A0009940318
SPRING WASHER. WASHER FUSE
140
A9064700681
BRACKET FRONT HEAT SHIELD
150
A9064700881
BRACKET FRONT HEAT SHIELD
160
A9064700981
BRACKET CENTER HEAT SHIELD
200
A9064700447
COVER FUEL TANK
200
A9064700047
PROTECTIVE PLATE FUEL TANK
200
A9064700547
SCREENING PLATE FUEL TANK, N 36723020071130
210
N000000003477
NUT BRACKET TO BODY SHELL M6
220
A0009940318
SPRING WASHER. WASHER FUSE
