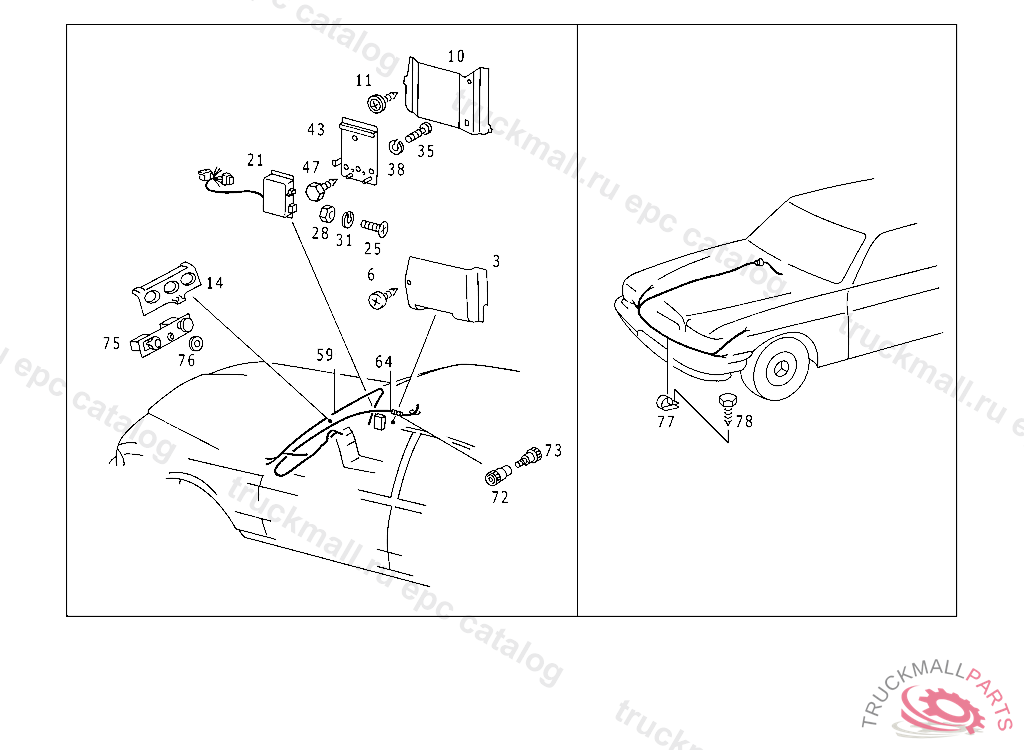

Поз.
Артикул
Описание
3
PANELLING FRONT PANEL,LATERAL RIGHT
6
SHEET METAL SCREW BRACKET TO FIRE WALL
10
PANELLING RIGHT
10
PANELLING FRONT PANEL,LATERAL RIGHT
10
PANELLING RIGHT
11
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
11
SHEET METAL SCREW RIGHT PANELLING TO MAIN FLOOR
14
LEDGE
14
LEDGE
21
RADIO COMMUNICATION UNIT
25
SCREW LINE MOUNTING
28
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
31
LOCK WASHER T-FITTING TO BRACKET
35
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
38
LOCK WASHER BRACKET TO STEERING COLUMN END
43
PLATE WIRELESS PLANT
47
SHEET METAL SCREW BRACKET TO CAB FLOOR
59
ELECTRIC CABLE FROM FUSE BOX TO BASIC APPARATUS, UP TO CHASSIS SEE STANDARD VERSION
64
ELECTRIC CABLE FROM BASIC APPARATUS TO REVOLVING BEAM SIGNAL LAMP
72
PLUG
72
PLUG
73
PLUG SOCKET UNIPOLAR
75
SWITCH SPECIAL SIGNAL SYSTEM OPERATING PART
76
SPACER RING
77
CLAMP ELECTRIC CABLE MOUNTING
78
SHEET METAL SCREW ELECTRIC CABLE MOUNTING
