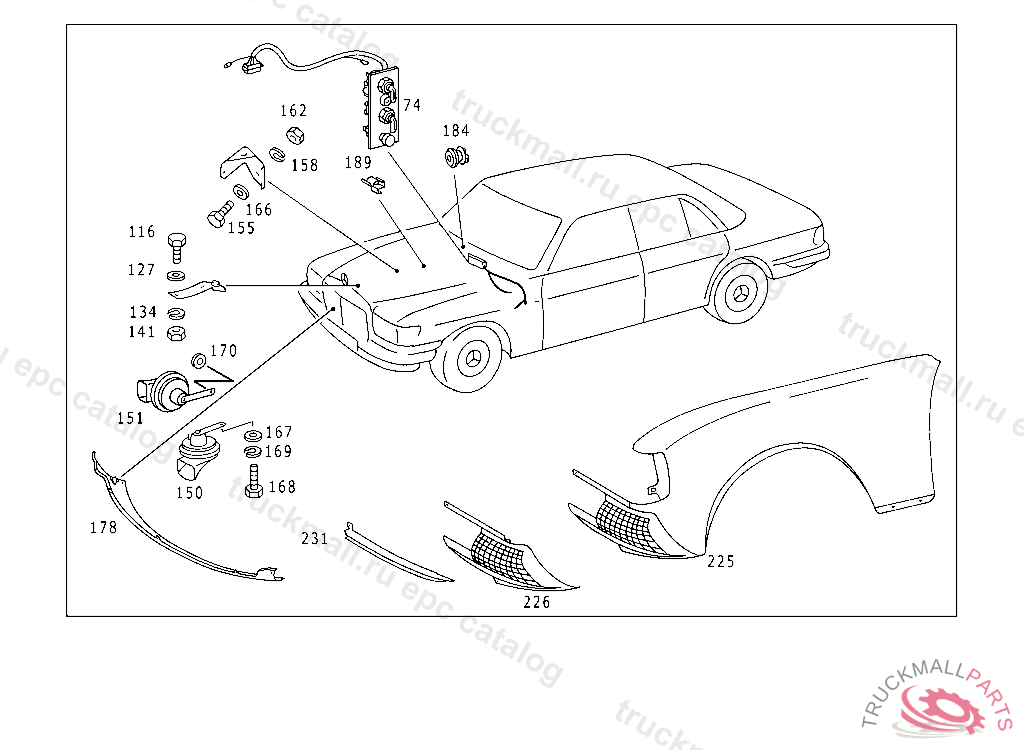

Поз.
Артикул
Описание
74
SWITCH
116
SCREW COVER PLATE TO BRACKET
127
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
141
NUT BALL PIVOT TO LEVER
150
HORN LOW NOTE 375 HZ
151
HORN HIGH NOTE 500HZ
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
155
SCREW BRACKET TO SIDE MEMBER
158
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
158
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
162
NUT BRACKET TO SUPPORT AND TO END PIECE
162
NUT
162
NUT , Replaced By: N304032008006
166
WASHER RADIATOR TO RUBBER MOUNTING
167
WASHER EXHAUST MUFFLER TO STRAP
168
SCREW BRACKET TO CROSS CONNECTION STRUT
169
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
WASHER EXHAUST MUFFLER TO STRAP
178
PANELLING
184
GROMMET
189
CLIP13 MM, Replaced By: A0129884678
225
FRONT FENDER WITH PROTECTIVE GRILLE,RIGHT
226
FRONT FENDER WITH PROTECTIVE GRILLE,UNDER BUMPER, RIGHT
231
GRILLE (VENTILATION SCREEN) RIGHT
