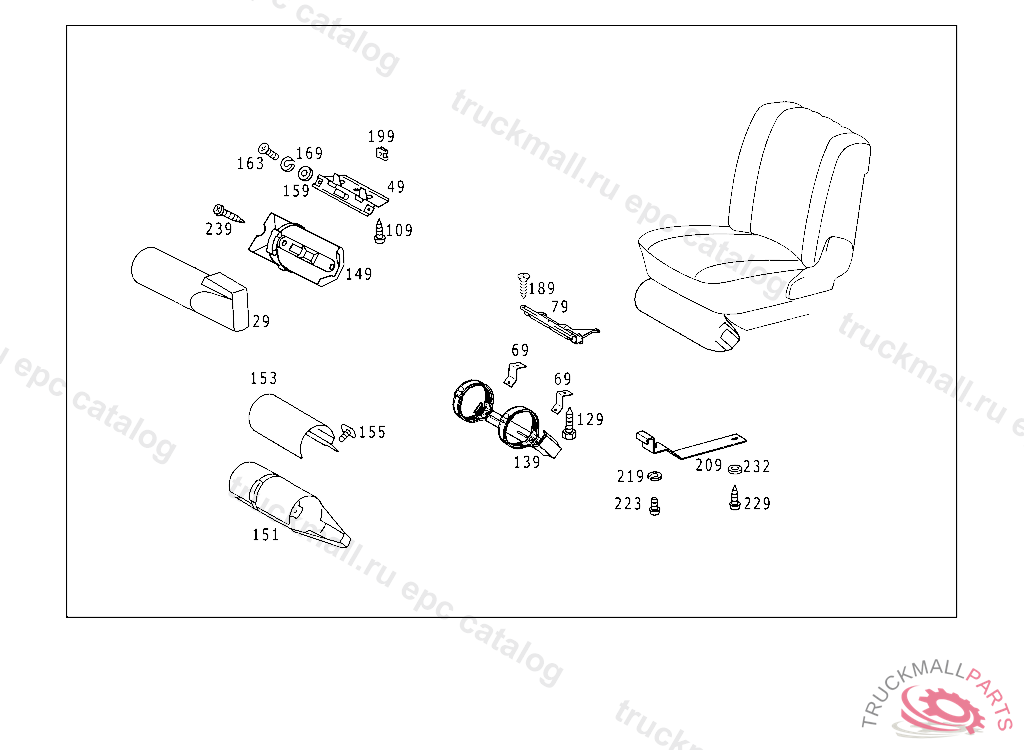

Поз.
Артикул
Описание
29
FIRE EXTINGUISHER
29
FIRE EXTINGUISHER , Replaced By: A0008601180, +001A1248600014, +001A1238680112
29
FIRE EXTINGUISHER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0008602280, +001A1248600114
49
ANGLE , Replaced By: A1158680712, +002A0019942845, +002N007983004340
49
ANGLE , Replaced By: A1168680212, +002A0019942845, +002N007983004340
49
ANGLE , Replaced By: A1168680312, +002A0019942845, +002N007983004340
49
ANGLE , 124.043/050/051
49
ANGLE ,A 388789
49
ANGLE
49
ANGLE FRONT SEAT ELECTRICALLY ADJUSTABLE, 201 A 222775 F 117577124 A 054800
49
ANGLE
49
ANGLE
49
ANGLE FRONT SEAT MECHANICALLY ADJUSTABLE, 201 A 222774 F 117576124 A 054799
49
ANGLE
49
ANGLE
49
ANGLE
49
ANGLE , FROM CHASSIS 107.022 009153 107.025 000696 107.026 002047 107.042 009248 107.045 000771 107.046 003309
49
ANGLE
49
ANGLE
49
ANGLE ,A 388788
49
ANGLE FRONT SEAT ELECTRICALLY ADJUSTABLE, 201 A 222774 F 117576124 A 054799
49
ANGLE ,A 388789
49
ANGLE FRONT SEAT MECHANICALLY ADJUSTABLE, 201 A 222775 F 117577124 A 054800
69
ANGLE , UP TO CHASSIS107.022 009152 107.025 000695 107.026 002046 107.042 009247 108.045 000770 107.046 003308 107.023,024 UNTIL PRODUCTION STOP 107.043,044 UNTIL PRODUCTION STOP
79
ANGLE , FROM CHASSIS 107.022 009153 107.025 000696 107.026 002047 107.042 009248 107.045 000771 107.046 003309
109
SHEET METAL SCREW MODULE TO HOUSING
109
SHEET METAL SCREW BRACKET TO FLOOR PLATE
109
SHEET METAL SCREW REFLECTOR TO BUMPER
109
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
109
SHEET METAL SCREW , Replaced By: N000000000453
109
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
129
SHEET METAL SCREW BRACKET TO CAB FLOOR
139
BRACKET
149
BRACKET
151
BRACKET
151
BRACKET ,A 388789A 502269
151
BRACKET
153
COVERING ,NO.9B04I NO.5B17I NO.8F02I NO.8F03I NO.8F04I NO.6B72I NO.3B49I NO.7C58I I
153
COVERING ,NO.9B04I NO.5B17I NO.8F02I NO.8F03I NO.8F04I NO.6B72I NO.3B49I NO.7C58I I
155
PLUG COVERING TO BRACKET
159
WASHER
163
SCREW
169
LOCK WASHER T-FITTING TO BRACKET
169
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
189
SHEET METAL SCREW
189
SHEET METAL SCREW BRACKET TO CAB
199
LOCK , FROM CHASSIS 107.022 009153 107.025 000696 107.026 002047 107.042 009248 107.045 000771 107.046 003309
209
STRUT
219
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
223
SCREW
229
SHEET METAL SCREW BRACKET TO FLOOR PLATE
229
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
232
WASHER BOOT TO CAB FLOOR
239
SHEET METAL SCREW BRACKET TO CAB
