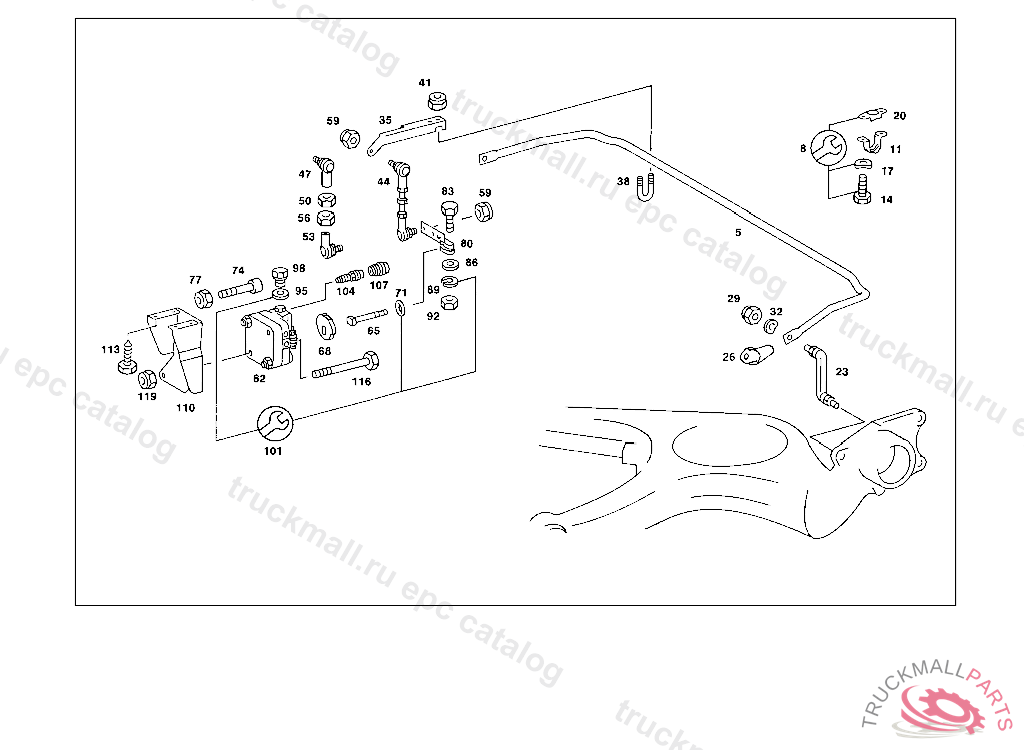

Поз.
Артикул
Описание
5
TORSION BAR REAR
8
REPAIR KIT TORSION BAR,REAR
11
CLAMP TORSION BAR TO FRAME
14
SCREW CLAMP TO BRACKET AND TO PIPE
17
SPRING WASHER , Replaced By: N000137008212
20
LOCK TORSION BAR TO FRAME
23
ROD TORSION BAR TO REAR AXLE
26
PROTECTIVE PLATETO 115 320 15 89
29
NUT
29
NUT , Replaced By: N304035010001
32
SPRING WASHER STEERING COLUMN BRACKET TO CAB
35
LEVER
38
MOUNTING BOW LEVER TO TORSION BAR, 123.000 075123 102 054657
41
NUT TWO-WAY VALVE TO BRACKET
44
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT
47
JOINT , Replaced By: A1233280063
47
JOINT R.H. THREAD
50
NUT BATTERY MOUNTING
50
NUT CYLINDER TO BRACKET TO0002902112
53
JOINT , Replaced By: A1233280163
53
JOINT L.H. THREAD
56
NUT L.H. THREAD
59
NUT , Replaced By: N913004006001
59
NUT PUMP TO BRACKET
59
NUT HEATING PIPE TO BRACKET
62
VALVE HEIGHT CONTROL VALVE
65
SHAFT
68
VALVE PART
71
SEAL RING
74
SCREW , Replaced By: N000912010220
74
SCREW
74
SCREW TO SECURE SET NUT M 10X1.5X45
77
NUT
77
NUT , Replaced By: N304032010002
80
LEVER
83
SCREW SHIFT LEVER TO TRANSMISSION
86
WASHER BRACKET TO HEAT SHIELD
89
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
NUT CYLINDER TO BRACKET TO0002902112
92
NUT BATTERY MOUNTING
95
SEAL RING SCREW PLUG
98
SCREW PLUG
101
REPAIR KIT HEIGHT CONTROL VALVE
104
BLEEDER VALVE OIL DRAIN
107
PROTECTIVE CAP , Replaced By: A0004217187
107
PROTECTIVE CAP ,5 962906
110
BRACKET HEIGHT CONTROL VALVE TO FRAME
113
SHEET METAL SCREW VALVE TO WINDOW SILL
116
SCREW SHIFTING ROD TO JOINT
119
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
